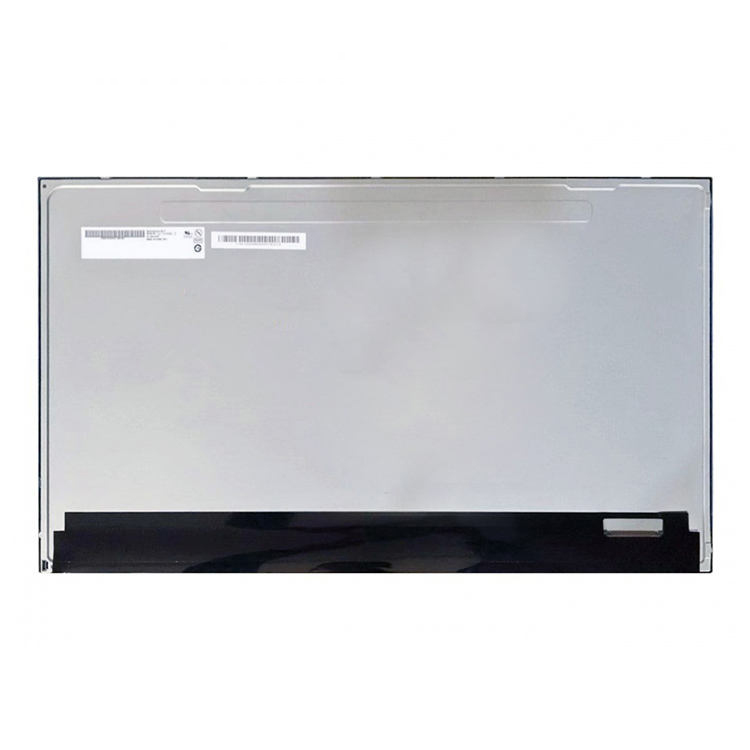

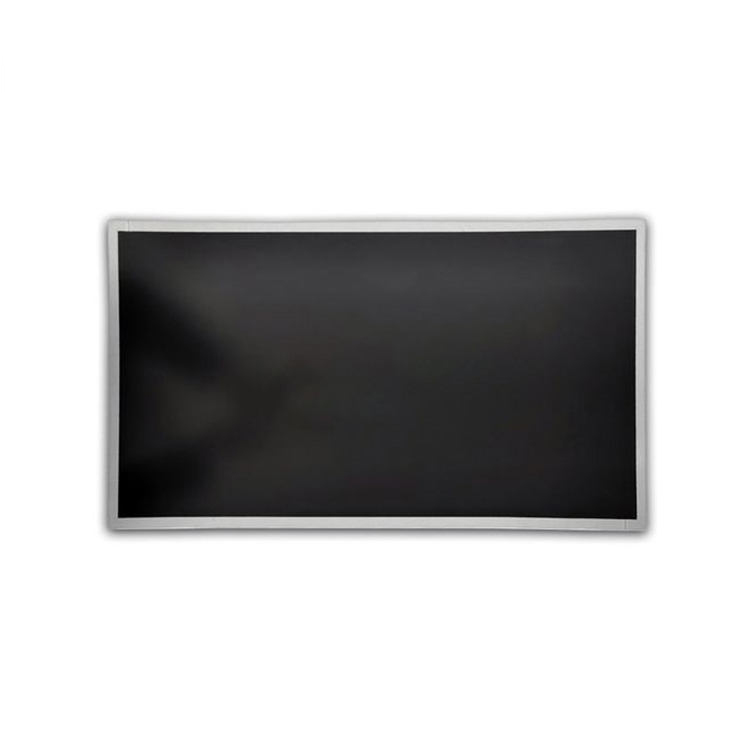

AUO G215HAN01.201 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G215HAN01.201 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 21.5” | Designed For | Industrial,Medical Imaging | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Srgb,WLED Backlight,Life>=50k hours, Matte, Upside I/F | |||
AUO G215HAN01.201 Optical Details
| Basic Information : | Luminance | 300cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 12/10(Typ.)(Tr/Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G215HAN01.201 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.08265×0.24795 mm (H×V) | Pixel Pitch(mm) | 0.24795×0.24795 mm (H×V) [102PPI] | |
| Physical Size : | Active Viewing(mm) | 476.064×267.786 mm (H×V) | Outline Dim.(mm) | 497.6×292.2 mm (H×V) |
| Bezel Area (mm) | 479.8×271.3 mm (H×V) | Outline Depth | 10.5±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.74Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G215HAN01.201 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 11.35W (Typ.) |
AUO G215HAN01.201 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.46/0.55A (Typ./Max.) | ||||
| Consumption | 2.3/2.75W (Typ./Max.) |
Signal Interface | LVDS (2 ch, 8-bit) | |||||
| Interface Features : | Position | Rear | Type | Connector | ||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||
| STM | MSBKT2407P30HB | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |||
AUO G215HAN01.201 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 12S4P | Position | Edge light type (Right side) | |||||
| Exchange | - |
Lamp Shape | 4strings | Lamp Life | 50K(Min.) Hours | ||||||
| Lamp Electrical : | Input Voltage | 34.8/37.2V (Typ./Max.) | Input Current | 65mA (Typ.) | |||||||
| Consumption | 9.07W (Typ.) | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | |||||
| E&T | 3707K-S06N-21R | 1 pcs | 6 pins | 1.0mm | BLE-6PINS-CCAACC | ||||||
| Backlight Driver : | No | ||||||||||
AUO G215HAN01.201 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 8 pcs / box | 18.0 Kgs | 580×275×385 mm (L×W×H) |
