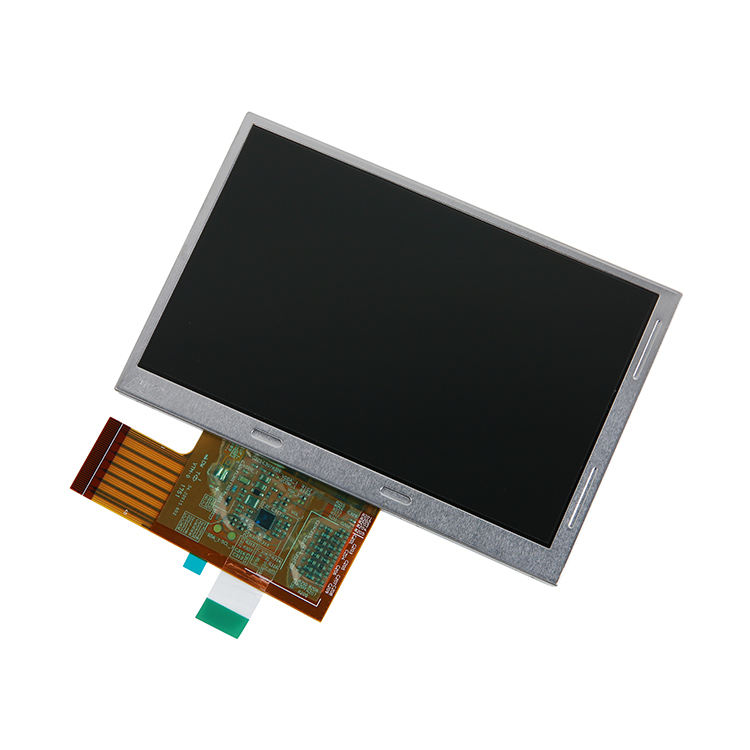

G050VTN01.1

Your location:Home > Products > AUO LCD screen > 5.0inch >
  • G050VTN01.1
  • G050VTN01.1
  • G050VTN01.1
  • Model:G050VTN01.1
  • Brand:AUO
  • Size:5.0inch
  • Resolution:800×480
  • Brightness:1000 cd/m² (Typ.)
  • Perspective:75/75/65/75 (Typ.)
  • Interface:TTL
  • Operating temperature:-20 ~ 70 °C
  • Current production status:In Production
  • Technical Parameters
  • AUO G050VTN01.1 Application Features

    Basic Detail : Manufacturer AUO Model Name G050VTN01.1
    Panel Type a-Si TFT-LCD , LCM
    Panel Size 5.0inch Designed For Industrial,Outdoor High Brightness
    Maximum Ratings : OP Temperature -20~ 70 °C ST Temperature -30 ~ 80 °C
    RoHS RoHS Vibration Level 2.0G (196 m/s²)
    Features : Ultra High Brightness,WLED Backlight,Matte


    AUO G050VTN01.1 Optical Details

    Basic Information : Luminance 1000 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive)
    Good View at 12 o'clock Response Speed 20 (Typ.)(Tr+Td)
    Viewing Angle 75/75/65/75 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
    Color Performance : Chromaticity Wx:0.310; Wy:0.330 Support Color 16.2M (6-bit + FRC)
    Color Temperature 6638K White Variation 1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt : NTSC Ratio 53% sRGB 75% coverage
    Adobe RGB 56% coverage DCI-P3 55% coverage
    Rec.2020 40% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -


    AUO G050VTN01.1 Mechanical Details

    Pixel Features : Number of Pixel 800(RGB)×480, WVGA Arrangement RGB Vertical Stripe
    Dot Pitch(W×H) 0.045×0.135 (H×V) Pixel Pitch(W×H) 0.135×0.135 (H×V)  [188PPI]
    Physical Size : Active Viewing(mm) 108(H) × 64.8(V) Outline Dim.(mm) 119.33(H) × 79.18(V)
    Bezel Opening(mm) 111.25(H) × 68.7(V) Overall Depth(mm) 5.5/8.0 (Typ./Max.)
    Outline Features : Form Style Flat Rectangle Shape Style
    Aspect Ratio 15:9 (H:V) Orientation Landscape type
    Mounting : Without
    Other Detail : Weight 79.0±5.0g Treatment Antiglare, Hard coating (3H)


    AUO G050VTN01.1 Electronics Details


    Refresh Rate : 60Hz
    Reverse Scan : No
    Total Consumption : 2.67W (Typ.)


    AUO G050VTN01.1 Interface Detail

    Signal Electrical : Input Current 75/90mA (Typ./Max.) Input Voltage 3.3V (Typ.)
    Consumption 0.25/0.3W (Typ./Max.) Signal Interface TTL (1 ch, 8-bit)
    Logic Voltage : 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Interface Features : Position

    - Physical Type FPC
    Interface Detail : Brand Model Pin Pitch Pins Amount Pin Assignment
        0.5 mm 40 pins 1 pcs


    AUO G050VTN01.1 Backlight Details

    Lamp Features : Lamp Type WLED Amount 7S2P Position Edge light type
    Exchange - Lamp Shape Array Lamp Life 40K(Min.) (Hours)
    Lamp Electrical : Input Voltage 22.4±2.8V Current Supply 108mA (Typ.)
    Consumption 2.42±0.3W
    Interface Features : Position - Physical Type Included in panel signal interface
    Backlight Driver : No


    AUO G050VTN01.1 Packing Details

    Package Box : Amount Size (L×W×H) Weight
    90 pcs / box 11.0 Kgs 520×340×250 mm (L×W×H)
