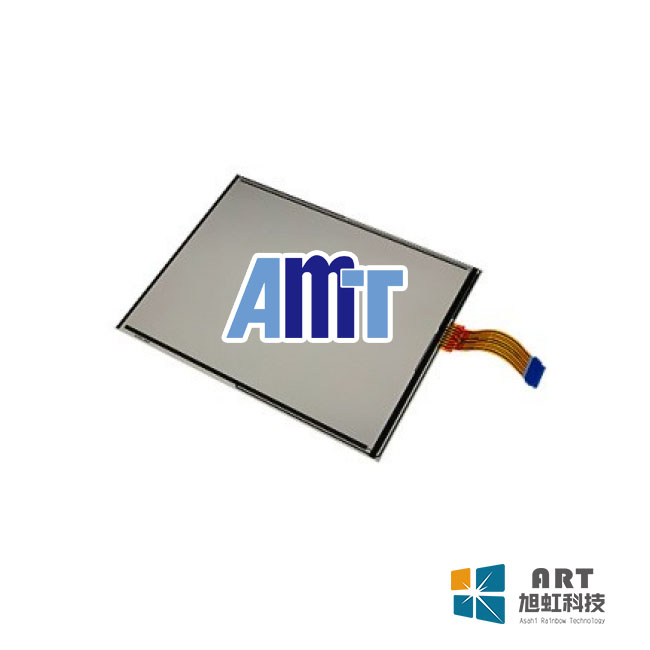

Amt2511 19 inch 5-wire resistance touch screen |
|
Brand |
AMT |
Model |
AMT2511 |
Size |
19” |
Outline(mm) |
404.2*330(H*V)mm |
Active Area(mm) |
378.5*303(H*V)mm |
Operating Temp. |
-10 ~ 60 °C |
Storage Temp. |
-40 ~ 80 °C |
Click life |
>1 million times (single point) |
Transmittance |
>80% |
Fogging degree |
<13% |
Working voltage |
5V-12V |
Environmental testing |
Storage temperature:-40℃~80℃ Operating temperature:-20℃~70℃ |
Transmission speed |
19200baud |
Impedance characteristics |
300-600Ω |
Linear error |
<1.5% |
Test method |
High temperature test: the test temperature is 80 ℃, store it for 288 hours, take it out and store it at room temperature for 24 hours;
Low temperature test: the test temperature is - 40 ℃, stored for 288 hours, taken out and stored at room temperature for 24 hours;
High temperature and humidity test: the test temperature is 60 ℃, the humidity is 90rh, stored for 288 hours, taken out and stored at room temperature for 24 hours;
Cold and hot shock test: the test temperature is - 40 ℃ and 80 ℃, the storage time is 30 minutes respectively, the cycle is 10 times, and then it is stored at room temperature for 24 hours;
Durability test: r8mm / 250g force / single point tapping the touch panel twice per second for more than 10 million times;
Writing test: r0.8mm/250g force, draw back 100000 times on a straight line of one inch
|
Remarks |
Amt2511 5-wire resistance touch screen is suitable for 19 inch Industrial LCD, such as Youda 19 inch g190eg01, etc |
