G104XVN01.0 Product Engineering Change Notice for 10.4-inch TFT-LCD Modules
Date:2026-06-25
G104XVN01.0 Product Engineering Change Notice for 10.4-inch TFT-LCD Modules
Purpose
To upgrade model mode to AHVA and maintain key parts logistics, we will launch a new cell with new driver IC, and also change the corresponding parts, including PCBA, BLU and connector.
Changes
The product specification will change as list below.

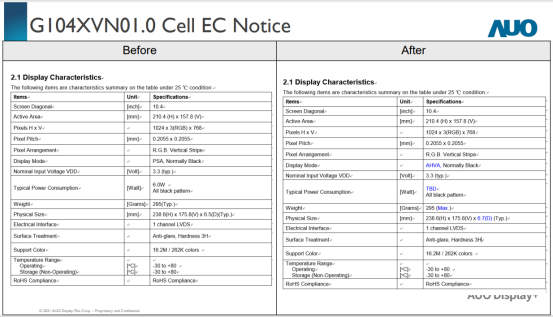

1. Display Characteristics

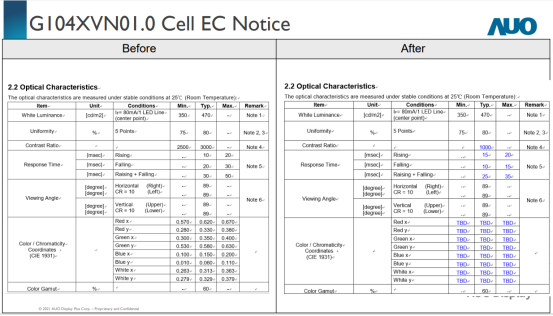

2. Optical Characteristics

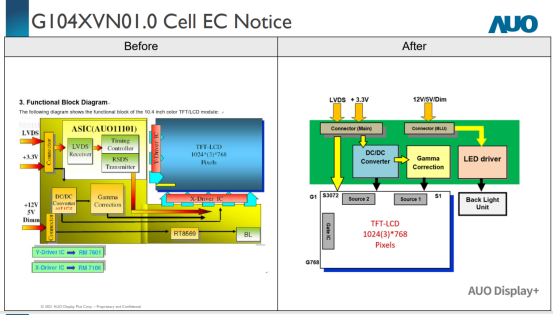

3. Functional Block Diagram

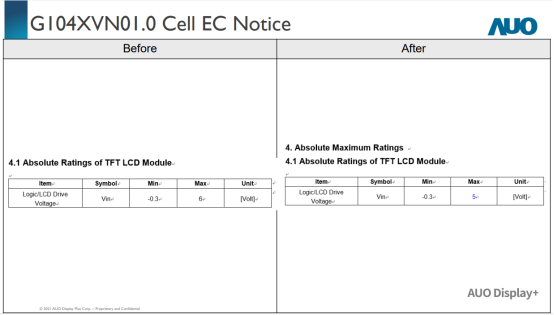

4. Absolute Ratings of TFT LCD Module

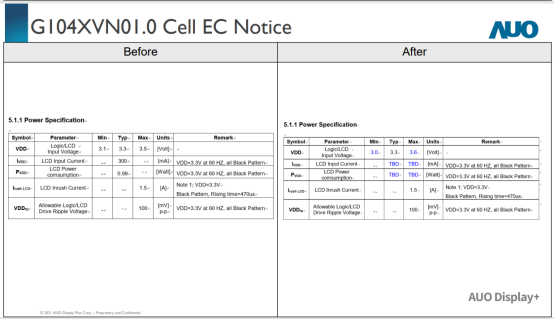

5. Electrical Characteristics

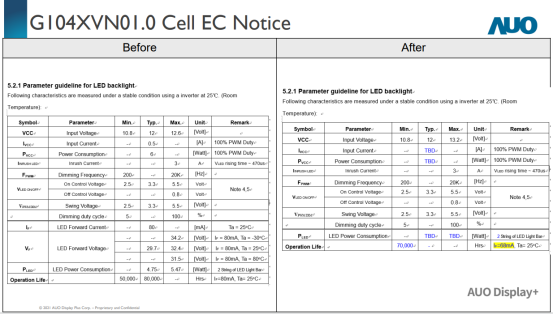

6. Backlight Unit

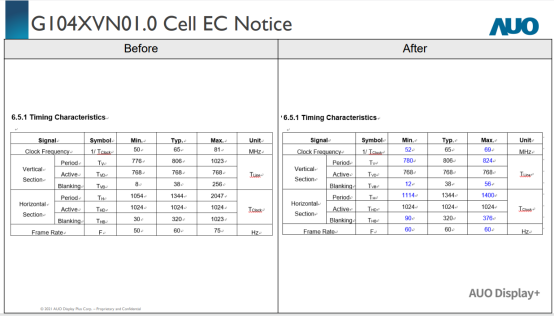

7. Timing Characteristics

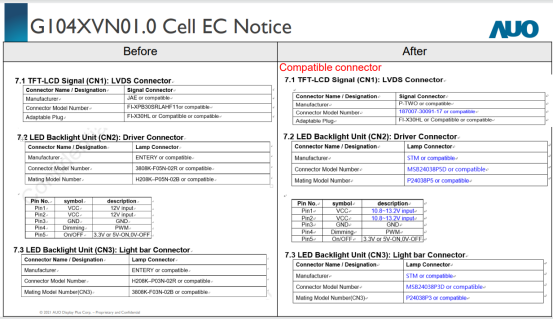

8. Compatible connector

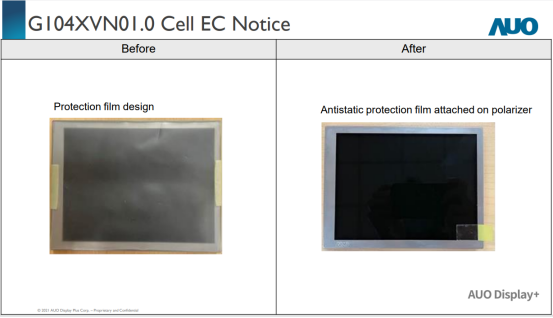

9. Protection film
EC Sample Schedule

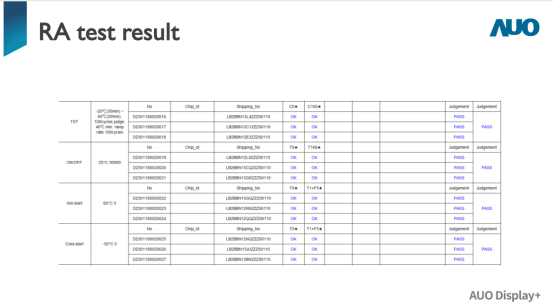

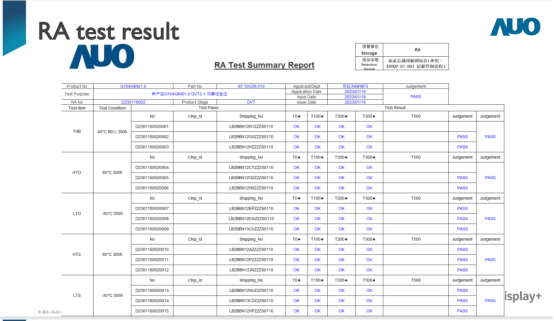

Sample delivery | RA Test completed | Customer approval | Phase-in |
2023/1/E | 2023/2 | 2023/5 | 2023/7 |
AUO Display Plus has issued an Engineering Change (EC) notice for its 10.4-inch industrial grade TFT-LCD module (model G104XVN01.0). This change is not a simple parameter adjustment, but a systematic upgrade involving core display technology, key components, and electrical specifications, aimed at improving product performance and optimizing supply chain stability.
