Specification reference: This page describes AUO G104XVN01.0 Final Specification v1.7, prepared on March 30, 2018. Confirm current availability, product revision and the applicable controlled specification before design-in or ordering.

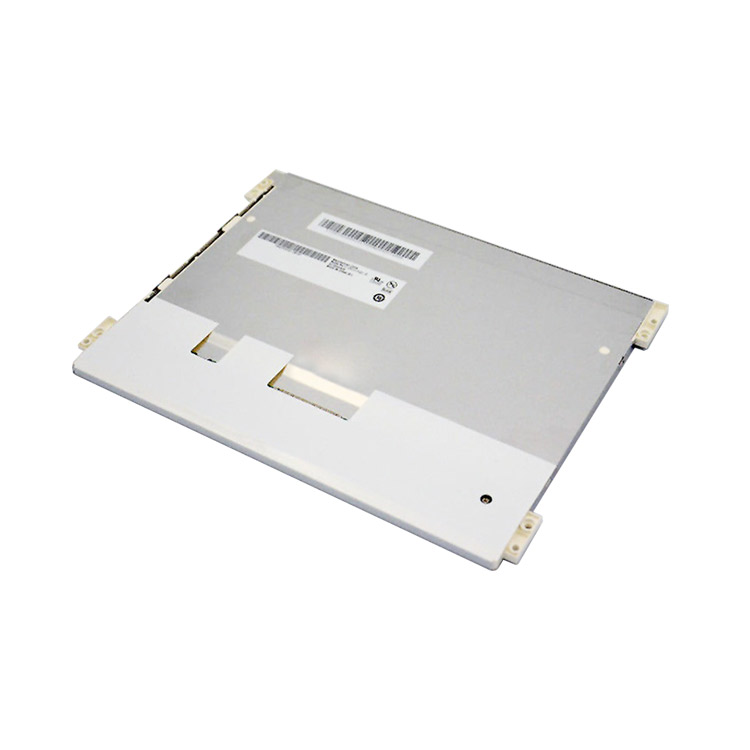

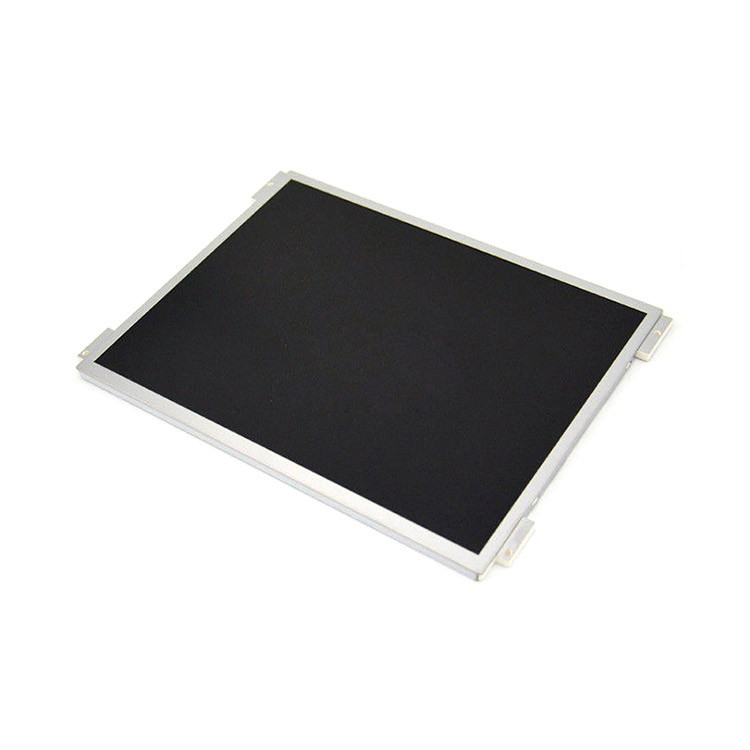

AUO G104XVN01.0 10.4-inch Industrial LCD
G104XVN01.0 is a 10.4-inch AUO industrial TFT-LCD module with 1024 × 768 XGA resolution. It uses PSA normally black display technology and provides 470 cd/m²; typical luminance, a 3000:1 typical contrast ratio and wide 89-degree viewing angles in all four directions.
The module supports 16.2 million or 262 thousand colors through a 1-channel, 30-pin LVDS interface with selectable 6-bit or 8-bit input. Its integrated LED backlight driver, anti-glare surface and -30°C to +80°C operating range make it suitable for industrial display applications. Final suitability must be verified in the customer's complete system.
Key Specifications
| Item | Specification |
|---|
| Manufacturer | AUO |
| Model | G104XVN01.0 |
| Specification Version | Final Specification v1.7 |
| Screen Size | 10.4 inch |
| Resolution | 1024×768 pixels (XGA), 4:3 aspect ratio |
| Display Mode | PSA, normally black |
| Active Area | 210.4 × 157.8 mm |
| Pixel Pitch | 0.2055 ×0.2055 mm |
| Outline Dimensions | 238.6 × 175.8 × 6.5 mm (Typ.) |
| Weight | 295 g (Typ.) |
| Surface Treatment | Anti-glare, 3H hardness |
| Compliance | RoHS |
Optical Characteristics
| Item | Specification |
|---|
| Brightness | 470 cd/m² ; (Typ.), 350 cd/m² ; (Min.) |
| Contrast Ratio | 3000:1 (Typ.), 2500:1 (Min.) |
| Viewing Angle | 89/89/89/89° (Typ.) |
| Response Time | 20 ms rising, 10 ms falling, 30 ms total (Typ.) |
| Display Colors | 16.2M / 262K colors |
| Color Gamut | 60% (Typ.) |
| Pixel Arrangement | RGB vertical stripe |
Interface, Power and Backlight
| Item | Specification |
|---|
| Signal Interface | 1-channel LVDS, 30-pin, 6/8-bit |
| Panel Input Voltage | 3.3 V (Typ.), 3.1 to 3.5 V |
| LCD Power | 0.99 W (Typ.) under the specified test condition |
| Backlight Input Voltage | 12 V (Typ.), 10.8 to 12.6 V |
| Backlight Input Current | 0.5 A (Typ.) at 100% PWM duty |
| Backlight Input Power | 6 W (Typ.) at 100% PWM duty |
| PWM Dimming | 200 Hz to 20 kHz, 5% to 100% duty cycle |
| LED Operating Life | 50,000 hours minimum / 80,000 hours typical under the specified conditions |
LED operating life is defined as the time until brightness decreases to 50% of its initial value at the specified current and 25°C ambient temperature. Actual life depends on current, temperature, humidity and system thermal design.
Environmental Range
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Operating Humidity | 5% to 90% RH, no condensation |
| Storage Humidity | 5% to 90% RH, no condensation |
Application and Design-in Notes
G104XVN01.0 may be considered for industrial HMIs, factory automation displays, control terminals, test equipment and embedded systems requiring a 10.4-inch XGA panel. Application suitability must be confirmed through electrical, mechanical, thermal and environmental testing in the final equipment.
This page applies specifically to G104XVN01.0 Final Specification v1.7. Do not combine its PSA display mode, 3000:1 contrast ratio, 6.5 mm thickness or backlight power values with the later specification associated with part number 97D10G05.010. Confirm the complete model, part number and document revision before replacing an existing module.
G104XVN01.0 FAQ
What is the AUO G104XVN01.0?
G104XVN01.0 is a 10.4-inch AUO industrial TFT-LCD with 1024×768 XGA resolution, PSA normally black display mode, 470 cd/m²; typical brightness and a 30-pin LVDS interface.
Is G104XVN01.0 an IPS display?
The v1.7 specification identifies the display mode as PSA, normally black. This page therefore does not describe the module as IPS or AHVA.
What are the brightness and contrast ratio?
White luminance is 470 cd/m² typical and 350 cd/m²; minimum. The contrast ratio is 3000:1 typical and 2500:1 minimum under the specified measurement conditions.
What interface does G104XVN01.0 use?
It uses a 1-channel, 30-pin LVDS interface and supports selectable 6-bit or 8-bit input. The typical panel supply voltage is 3.3 V.
What is the operating temperature range?
The specified operating and storage temperature ranges are both -30°C to +80°C. Condensation is not permitted.
What is the LED backlight life?
The specification lists 50,000 hours minimum and 80,000 hours typical under the stated current and temperature conditions, measured until brightness falls to 50% of the initial value.
Is G104XVN01.0 the same as the 97D10G05.010 version?
They should not be treated as identical without revision-level confirmation. The later document associated with part number 97D10G05.010 contains different display mode, contrast ratio, thickness, power and backlight specifications. Confirm the exact part number before substitution.
How can I request the current datasheet and quotation?
Use the inquiry link and include the complete model number G104XVN01.0, required quantity, delivery destination and application. The applicable document revision and availability can then be checked.
