GP-121F-5H-NB17B

Your location:Home > Products > Touch LCD screen > GTOUCH touch >
  • GP-121F-5H-NB17B
  • Model:GP-121F-5H-NB17B
  • Brand:gtouch
  • Aximum:5-wire resistive touch screen
  • Size:12.1 inches
  • Maximum resolution supported:
  • Interface signal:RT / RL / SG / LT / ll pitch = 2.54
  • LCDinterface:
  • Operating temperature:- 20 ℃ ~ 70 ℃
  • Current production status:
  • Technical Parameters
  • GP-121F-5H-NB17B 12.1 "5-wire resistive touch screen

    brand

    GTOUCH

    Model



    GP-121F-5H-NB17B

    Size

    12.1”

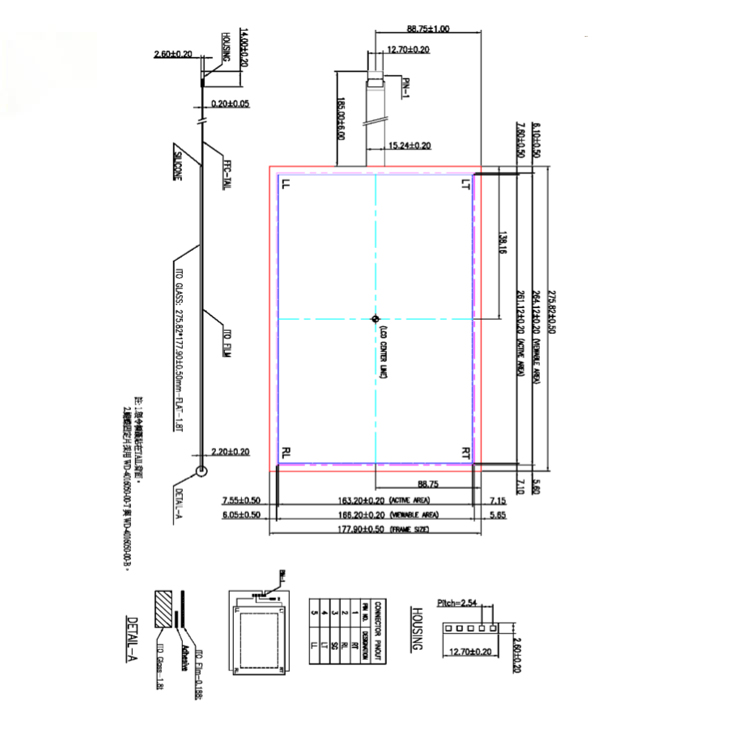

    Frame size

    275.82 x 177.9 mm

    Display size

    261.12 x 163.2 mm

    Visual size

    264.12 x 166.2 mm

    Thickness

    2.2mm

    Operating Temp.

    -20°C ~ +70°C

    Storage Temp.

    -40°C ~ +80°C

    Operating humidity

    20%RH ~85%RH

    Storage humidity



    10%RH ~ 90%RH

    Click life

    >1 million times (single point)

    Transmittance

    >80%

    Haze degree

    <13%

    working voltage

    5V-12V

    Environmental testing

    Storage Temp.:-40℃~80℃

    Operating Temp.:-20℃~70℃

    Transmission speed

    19200baud

    Impedance characteristics

    300-600Ω

    Linear error

    <1.5%

    New testing method

    High temperature test: test temperature 80 ℃, store 288 hours, take out and store 24 hours at room temperature;

    Low temperature test: test temperature - 40 ℃, store 288 hours, take out and store 24 hours at room temperature;

    High temperature and humidity test: test temperature 60 ℃, humidity 90rh, storage 288 hours, take out at room temperature for 24 hours;

    Cold and hot shock test: the test temperature was - 40 ℃ and 80 ℃, and the storage time was 30 minutes each, 10 cycles, and then stored at room temperature for 24 hours;

    Durability test: r8mm / 250g force / 2 times per second single touch touch panel, more than 10 million times;

    Writing test: R 0.8 mm / 250 g force, draw back 100000 times in a straight line of one inch

    Notes

    Gp-121f-5h-nb17b 5-wire resistive touch screen is suitable for 12.1 inch Industrial LCD screen, such as Youda 12.1 inch g121ean01.2, etc
