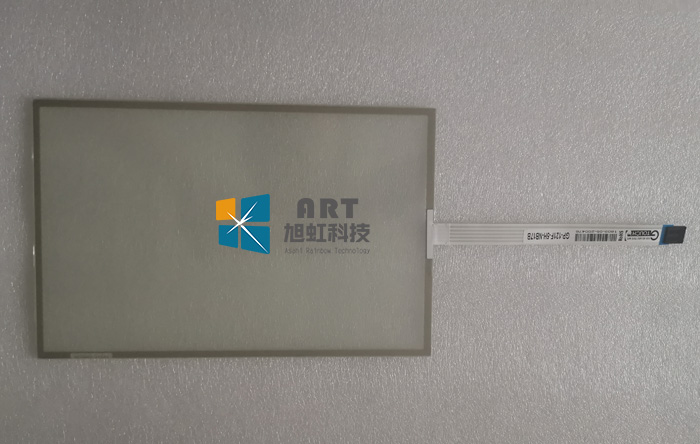

GP-121F-5M-NB09B

Your location:Home > Products > Touch LCD screen > GTOUCH touch >
  • GP-121F-5M-NB09B
  • Model:GP-121F-5M-NB09B
  • Brand:gtouch
  • Aximum: 5-wire resistive touch screen
  • Size:12.1 inches
  • Maximum resolution supported:
  • Interface signal:ur / LR / SG / UL / ll
  • LCDinterface:
  • Operating temperature:- 20 ℃ ~ 70 ℃
  • Current production status:
  • Technical Parameters
  • 1、GP-121F-5M-NB09B Brief introduction of five wire resistive touch screen products:

    This specification is applicable to five wire analog resistive touch screen

    1. Even if the surface is scratched and damaged, if the ITO glass is not damaged. Still working normally;

    2. High temperature manufacturing process at 500 ℃;

    3. The warranty period is 2 years of normal operation and the number of contacts is 10000000;

    4. Provide high transparency touch screen (more than 80%), even low brightness display is very clear;

    5. It can be customized in various sizes from 5 to 26 inches according to customers' requirements.

    6. It is designed to be activated by pressure from a finger or stylus.

    7. It's easy to install on different brands of monitors.

    2、GP-121F-5M-NB09B characteristic

    Type

    Five wire analog resistance type

    Operation mode

    Brush or hand touch

    Links

    FFC

    3、GP-121F-5M-NB09B General specifications

    Frame size

    261.8 x 199.8 mm

    Viewable area

    249.8 x 188.5 mm

    Action area  246.8 x 185.5 mm

    Total thickness

    2.2 mm

    Length of outgoing line

    205mm

    4、GP-121F-5M-NB09B Environmental characteristics
    Operating temperature -20°C ~ +70°C
    Storage temperature -40°C ~ +80°C
    Operating humidity 20%RH ~85%RH
    Storage humidity 10%RH ~ 90%RH
    Note: the above environment is atmospheric pressure
    5、GP-121F-5M-NB09B Optical characteristics
    Light transmittance

    ≧80% ± 3% (Measured by BYK-Gardner)

    Haze degree

    Antiglare Finish≦10% ± 3%

    6、GP-121F-5M-NB09BB Electronic characteristics

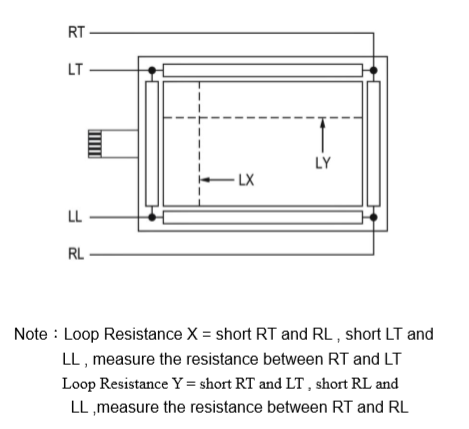

    Loop impedance X:20~500Ω, Y:20~500Ω
    linear X≦1.5%, Y≦1.5%
    Actuation time ≦15ms
    Insulation impedance ≧20MΩ/25V(DC)
    Withstand voltage Dc50v / 60s no action damage
