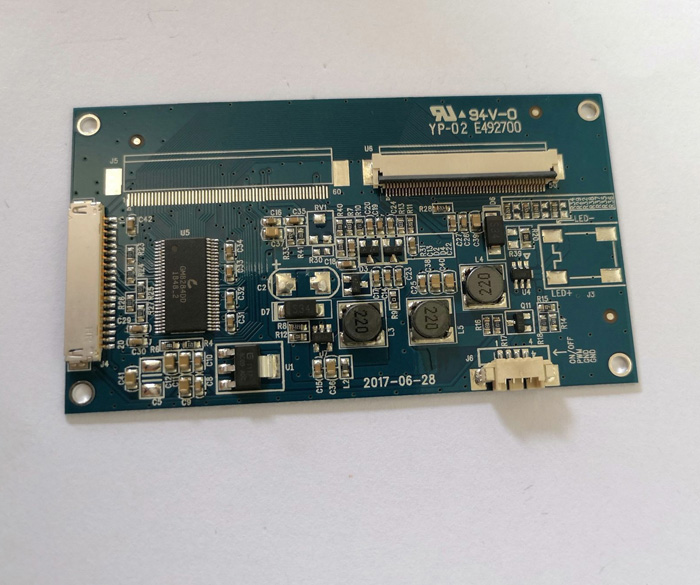

LCD screen used for TTL interface and supported by TCON voltage has backlight driving circuit
| Project | describe |
| Product name | TCON V1.2 |
| Chip solution | Mstar |
| Support maximum resolution | 1024*768 |
| Support size | 10.4" |
| Interface signal | LVDS |
| Input power | +5V power supply |
| Function | LVDS to TTL, including TCON voltage, including backlight driving circuit, used for TCON screen supporting TTL |
| LCD interface | TTL |
| Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 40 ℃ to 70 ℃; Relative humidity 20% to 80% |
| Size | 83*47*8mm |
| Applicable occasions | Industrial control display, special occasions display, LCD driver board, LCD control board. |
