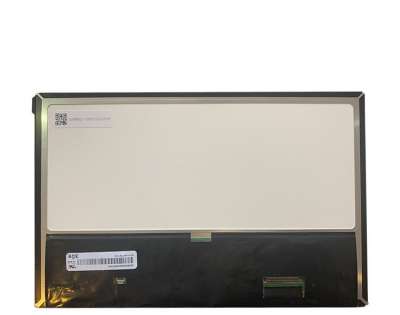

1、BOE EV101WXM-N10 Application Details
Basic Information : | Brand | BOE | Model | AV104X0M-N10 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial，Medical Imaging | |
Screen Size | 10.4inch | |||
Environment : | Storage Temp. | -20 ~ 70 °C | Operating Temp. | -30 ~ 70 °C |
RoHS | RoHS | Vibration | - | |
Typical Features : | WLED Backlight，With LED Driver | |||
2、BOE EV101WXM-N10 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.0565×0.1695 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 (H×V) [149PPI] | |
Mechanical Size : | Active Area(mm) | 216.96(H) × 135.6(V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 228.6(H) × 149.2(V) | Depth(mm) | 3.0/6.0 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
Mounting : | Without | |||
Other Spec : | Weight | 175±20g | Treatment | - |
3、BOE EV101WXM-N10 Optical Details
Basic Information : | Luminance(cd/m²) | 400 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 48% | sRGB | 68% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE EV101WXM-N10 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption: | 4.2W (Max.) |
5、BOE EV101WXM-N10 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 250/330mA (Typ./Max.) | ||
Consumption | 0.8/1.1W (Typ./Max.) | |||||
Signal Type : | LVDS (1 ch,8-bit) | |||||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
STM | MSAK24025P40G | 0.5 mm | 40 pins | 1 pcs | ||
6、BOE EV101WXM-N10 Backlight Details
Backlight Features : | Type | WLED | Lamp Shape | - | Position | Edge light type |
Replacement | - | Amount | - | Life Time | 30K(Min.) (Hours) | |
Lamp Electrical : | Voltage Supply | 12±0.5V | Current Supply | 220/280mA (Typ./Max.) | ||
Consumption | 3.1W (Max.) | |||||
Interface Features : | Position | - | Type | Included in signal interface | ||
7、BOE EV101WXM-N10 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
40 | 500×400×300 | N/A |
