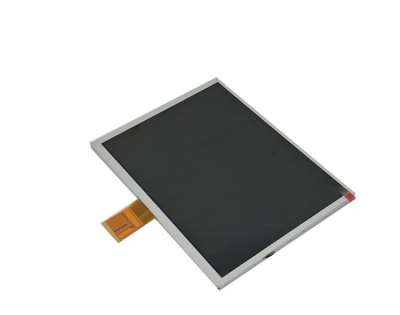

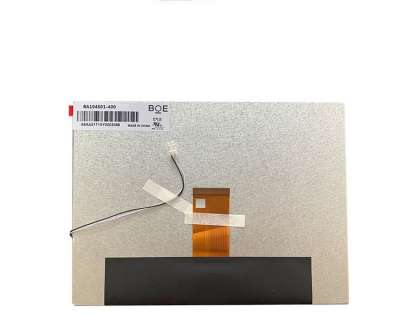

1、BOE BA104S01-400 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | BA104S01-400 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 10.4 inch | Designed For | Digital Photo Frame，Home Appliance | |
Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
Vibration Level | - | RoHS | RoHS | |
Features : | WLED Backlight，6/8 bit，Matte | |||
2、BOE BA104S01-400 Optical Details
Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Good View at | - | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
Color Performance : | Chromaticity | Wx:0.284; Wy:0.320 | Support Color | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 8455K | White Uniformity | 1.25/1.43 (Typ./max.)(9 points) |
3、BOE BA104S01-400 Mechanical Details
Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 228.4(W)×175.4(H) mm |
Bezel Opening | 214.4(W)×161.6(H) mm | Overall Depth | 5.5 (Typ.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
Fixation : | Without | |||
Other Detail : | Mass | TBD | Surface | Antiglare |
4、BOE BA104S01-400 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Driver IC : | Built-in HX8245, HX8677 |
Time Controller (T-CON) : | Embedded T-CON |
5、BOE BA104S01-400 Interface Details
Signal Electrical : | Input Current | - | Input Voltage | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) | ||
Consumption | 0.77W (Typ.) | Signal Interface | Parallel RGB (1 ch, 6/8-bit) | |||
Interface Features : | Position | - | Physical Type | FPC | ||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
1 pcs | 0.5 mm | 60 pins | ||||
6、BOE BA104S01-400 Lightting Details
Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type (Top side) | |||
Exchange | - | Amount | 3S12P | Life | 20K(Typ.) (Hours) | ||||
Lamp Electrical : | Input Current | 240mA (Max.) | Input Voltage | 9.0V (Max.) | |||||
Consumption | 2.16W (Typ.) | ||||||||
Interface Features : | Position | - | Physical Type | Connector | |||||
nterface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | |||
JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2pins | BLE-2PINS-AC | ||||
Backlight Driver : | No | ||||||||
