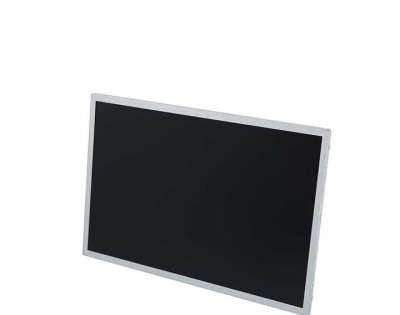

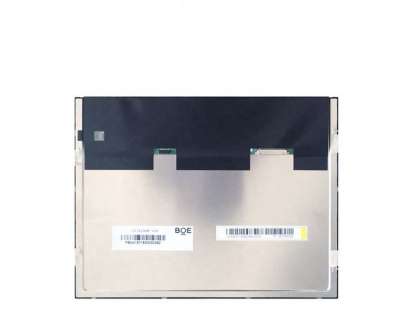

  • Industrial grade 12 1 inch LCD Panel BOE PV121X0M-N10 TFT IPS LCD Display Screen
  • Industrial grade 12 1 inch LCD Panel BOE PV121X0M-N10 TFT IPS LCD Display Screen
  • Model:PV121X0M-N10
  • Brand:BOE
  • Size:12.1inch
  • Resolution:1024×768
  • Brightness:500 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE PV121X0M-N10 Application Details

    Basic Info :

    Panel Brand

    BOE

    Panel Model

    PV121X0M-N10

    Diagonal Size

    12.1"

    Application

    Industrial

    Panel Type

    a-Si TFT-LCD , LCM



    Reliability :

    Operating Temp.

    -20 ~ 70 °C

    Storage Temp.

    -30 ~ 80 °C

    RoHS State

    RoHS



    Specific Features :

    WLED BacklightLife50K hoursWith LED Driver


    2BOE PV121X0M-N10 Mechanical Details

    Pixel Features :



    Pixel Format

    1024(RGB)×768 [XGA]

    Dot Pitch

    0.080×0.240 mm (H×V)

    Configuration

    RGB Vertical Stripe

    Pixel Pitch

    0.240×0.240 mm (H×V)  [105PPI]

    Mechanical Size :

    Display Area

    245.76×184.32 mm (H×V)

    Bezel Area

    249×187.5 mm (H×V)

    Outline Dim.

    260.5×204 mm (H×V)

    Outline Depth

    8.7/9.2 (Typ./Max.) mm

    Outline Features :

    Form Factor

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio

    4:3 (H:V)

    Shape Style


    Holes & Brackets :

    Side mounting holes (4-M3) on left,   right, bezel


    3BOE PV121X0M-N10 Optical Details

    Basic Information :

    Brightness

    500 cd/m² (Typ.)

    Contrast Ratio

    1200:1 (Typ.) (Transmissive)

    Viewing Angle

    86/86/86/86 (Typ.)(CR10)

    Optical Mode

    ADS, Normally Black, Transmissive

    Viewing Direction

    Symmetry

    Response Time

    30 (Typ.)(Tr+Td) (ms)

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Color Numbers

    16.7M (8-bit)

    Color Temperature

    6485K

    White Uniformity

    1.25/1.33 (Typ./Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    73%

    sRGB

    93% coverage

    Adobe RGB

    72% coverage

    DCI-P3

    75% coverage

    Rec.2020

    54% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)



    4BOE PV121X0M-N10 Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    No


    5BOE PV121X0M-N10 Backlight Details

    Back-light Features:


    Lamp Shape

    -

    Lamp Type

    WLED

    Life Time

    50K(Min.) (Hours)

    Replacement

    -

    Amount

    -

    Position

    Edge light type

    Interface Features :

    Type

    Connector

    Position

    -

    Lamp Driver

    With LED Driver

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration

    ACES

    91208-01001-H01

    1.0 mm

    10 pins

    1 pcs


    Driver Electrical :

    Voltage Input

    11.0/12.0/20.0V (Min./Typ./Max.)

    Current Input

    480mA (Typ.)

    Consumption

    9.6W (Typ.)


    6BOE PV121X0M-N10 Interface Details

    Signal Systerm :

    LVDS (1 ch, 8-bit)

    Logic Voltage

    -

    Signal Electrical :

    Voltage Input

    3.3V (Typ.)

    Current Input

    235±15mA

    Consumption

    0.72/0.78/1.65W (Min./Typ./Max.)

    Interface Features :

    Type

    Connector


    Position

    -


    Connector Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration


    9006F20-0048RQ-G4


    20 pins

    1 pcs



    7BOE PV121X0M-N10 Carton Details

    Package Type

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    18

    607×507×240

    N/A
