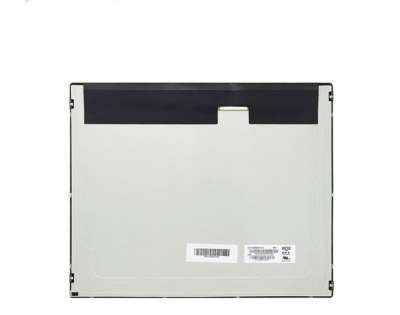

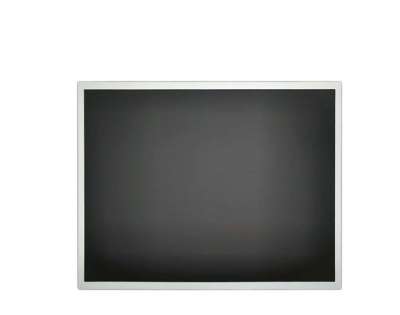

  • DV170E0M-N30 Good viewing 17 Inch LCD Panel IPS Display BOE TFT LCM 1280*1024
  • DV170E0M-N30 Good viewing 17 Inch LCD Panel IPS Display BOE TFT LCM 1280*1024
  • Model:DV170E0M-N30
  • Brand:BOE
  • Size:17.0inch
  • Resolution:1280×1024
  • Brightness:500 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE DV170E0M-N30  Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    DV170E0M-N30

    Panel Type

    a-Si TFT-LCD , LCM

    Another Name


    Panel Size

    17.0 inch

    Designed For

    Laptop

    Maximum Ratings :

    OP Temperature

    -20 ~ 70 °C

    ST Temperature

    -20 ~ 70 °C

    RoHS

    RoHS

    Vibration Level

    -

    Features :

    Landscape/PortraitWLED BacklightUpside I/F,Matte


    2BOEDV170E0M-N30  Optical Details

    Basic Detail :

    Luminance

    500 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    20 (Typ.)(Tr+Td) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

    HADS, Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Support Color

    16.7M (6-bit + Hi-FRC)

    Color Temperature

    6485K

    White Variation

    1.25/1.33 (Typ./Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    73%

    sRGB

    94% coverage

    Adobe RGB

    73% coverage

    DCI-P3

    76% coverage

    Rec.2020

    55% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    3BOE DV170E0M-N30  Mechanical Details

    Pixel Features :

    Number of Pixel

    1280(RGB)×1024, SXGA

    Arrangement

    RGB Vertical Stripe

    Dot Pitch(W×H)

    0.088×0.264 mm

    Pixel Pitch(W×H)

    0.264×0.264 mm  [96PPI]

    Physical Size :

    Active Viewing

    337.92(W)×270.336(H) mm

    Overall Dim.

    358.5(W)×296.5(H) mm

    Bezel Opening

    341.72(W)×274.14(H) mm

    Overall Depth

    8.7/10.8 (Typ./Max.) mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    5:4 (H:V)

    Shape Style


    Fixation :

    Side mounting holes (4-M2) on left, right   bezel

    Other Detail :

    Weight

     1.35Kgs (Typ.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)



    4BOEDV170E0M-N30  Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No

    Total Consumption :

    12.36W (Typ.)


    5BOE DV170E0M-N30  Interface Detail

    Signal Electrical :

    Input Current

    0.6/1.0A (Typ./Max.)

    Input Voltage

    5.0V (Typ.)

    Consumption

    3.0/5.5W (Typ./Max.)

    Signal Interface

    LVDS (2 ch, 8-bit)

    Interface Features :

    Position

    Upper right of panel

    Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    UJU

    IS100-L30O-C23

    1.0mm

    30 pins

    1 pcs

    LVDS-30P2C8B-160A


    6BOE DV170E0M-N30 Backlight Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    12S4P

    Position

    Edge light type (Bottom side)

    Exchange

    -

    Lamp Shape

    4 strings

    Lamp Life

    30K(Min.) (Hours)

    Interface Features :

    Position

    Down left corner

    Type

    Connector

    Lamp Electrical :

    Voltage Input

    32.4/36/38.4V (Min./Typ./Max.)

    Current Input

    65mA (Typ.)

    Consumption

    8.42/9.36/9.99W (Min./Typ./Max.)

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    E&T

    3707K-S06N-21L

    1.0 mm

    6 pins

    1 pcs

    BLE-6PINS-CCAACC

    Backlight Driver :

    No
















    7BOE DV170E0M-N30  Carton Details

    Box Type:

    Pcs/Box

    Package LWH (mm)

    G.W (kgs)

    14

    512×442×357

    N/A
