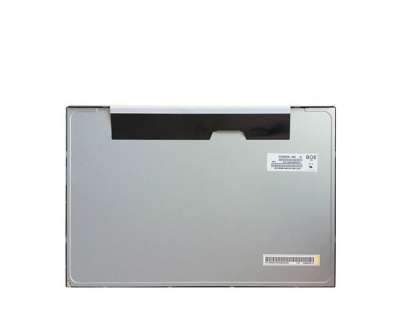

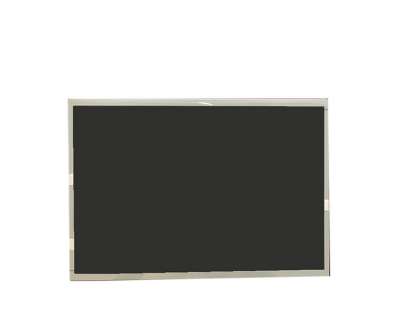

1、BOE DV185WHM-NM1 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | DV185WHM-NM1 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 18.5 inch | Designed For | Medical Imaging，Digital Signage | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | Srgb, WLED Backlight， Upside I/F,Matte | |||
2、BOE DV185WHM-NM1 Optical Details
Basic Detail : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 99% coverage |
Adobe RGB | 77% coverage | DCI-P3 | 78% coverage | |
Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE DV185WHM-NM1 Mechanical Details
Pixel Features : | Number of Pixel | 1366(RGB)×768, WXGA | Arrangement | RGB Vertical Stripe |
Dot Pitch | 0.100×0.300 (H×V) | Pixel Pitch(W×H) | 0.300×0.300 (H×V) [84PPI] | |
Physical Size : | Active Viewing (mm) | 409.8(H) × 230.4(V) | Bezel Area(mm) | 413.4(H) × 234.0(V) |
Outline Dim. (mm) | 430.4(H) × 254.6(V) | Depth(mm) | 7.7/11.4 (Typ./Max.) | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | ||
Fixation : | Without | |||
Other Detail : | Mass | 1.30Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
4、BOE DV185WHM-NM1 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Total Consumption : | 8.62/10.33W (Typ./Max.) |
5、BOE DV185WHM-NM1 Interface Detail
Signal Electrical : | Input Current | 0.5/0.72A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 2.5/3.6W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) | |||
Interface Features : | Position | Upper right of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
UJU | IS100-L30O-C23 | 1.0mm | 30 pins | 1 pcs | LVDS-30P1C8B-170A | |
6、BOE DV185WHM-NM1 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | 6S4P | Position | Edge light type (Right side) | |||||
Exchange | - | Lamp Shape | Array | Life Time | 30K(Min.) Hours | ||||||
Lamp Electrical : | Input Current | 100mA (Typ.) | Input Voltage | 17.4/18.0/19.8V (Min./Typ./Max.) | |||||||
Consumption | 7.2/7.92W (Typ./Max.) | ||||||||||
Interface Features : | Position | Down left corner | Type | Connector | |||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||
E&T | 3708K-Q06N-00R | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | ||||||
Backlight Driver : | No | ||||||||||
7、BOE DV185WHM-NM1 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
13 | 508×358×325 mm | - |
