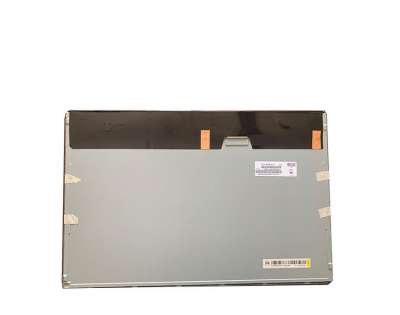

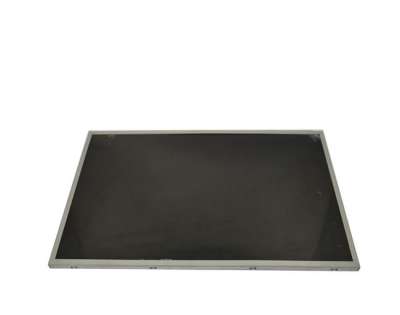

1、BOE EV213U0M-N10 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | EV213U0M-N10 |
Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
Panel Size | 21.3 inch | Designed For | Medical Imaging | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~~ 60 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | Ultra High Brightness，WLED Backlight，Life≥50K hours，Upside I/F，Matte | |||
2、BOE EV213U0M-N10 Optical Details
Basic Detail : | Luminance | 2000 cd/m² (Typ.) | Contrast Ratio | 1800:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) ms | |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.292; Wy:0.307 | Support Color | Grayscale (8-bit) |
Color Temperature | 8188K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
3、BOE EV213U0M-N10 Mechanical Details
Pixel Features : | Number of Pixel | 1600(LCR)×1200, UXGA | Arrangement | LCR Vertical Stripe |
Dot Pitch | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] | |
Physical Size : | Active Viewing (mm) | 432(W)×324(H) mm | Overall Dim. | 457(W)×350(H) mm |
Bezel Opening | 438.2(W)×330(H) mm | Depth(mm) | 17.3 (Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 1.80Kgs (Typ.) | Surface | Antiglare (Haze 45%) |
4、BOE EV213U0M-N10 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
5、BOE EV213U0M-N10 Interface Detail
Signal Electrical : | Input Current | 300/950mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
Consumption | 3.4/11.4W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Upper right of panel | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
UJU | IS100-L30O-C23 | 1.0mm | 30 pins | 1 pcs | ||
6、BOE EV213U0M-N10 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type | |||||
Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||||
Lamp Electrical : | Input Current | Input Voltage | 12/27V (Min./Max.) | ||||||||
Consumption | 26.4/28.0W (Typ./Max.) | ||||||||||
Interface Features : | Position | Upper left corner | Type | Connector | |||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||
CviLux | CI0114M1HR0-NH | 2.0mm | 14 pins | 1 pcs | C | ||||||
Lamp Driver | No | ||||||||||
7、BOE EV213U0M-N10 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
9 | 540×444×446 | N/A |
