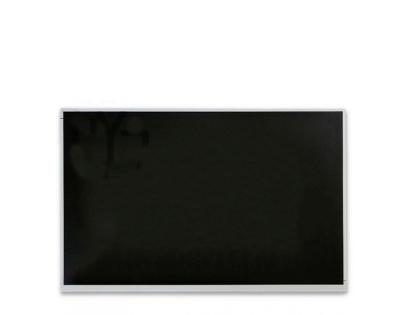

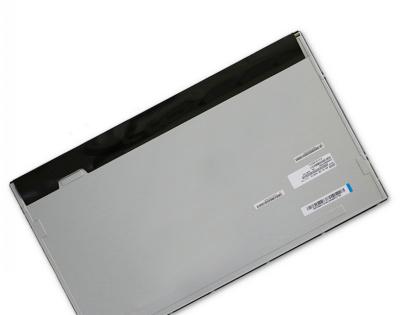

BOE MV238FHM-N10 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | MV238FHM-N10 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 23.8” | Designed For | Desktop Monitor |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | Srgb,WLED Backlight,Reverse I/F,Matte |
BOE MV238FHM-N10 Optical Details
| Basic Information : | Luminance | 250 cd/m² (Min.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 98% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 77% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE MV238FHM-N10 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0915*0.2745 mm | Pixel Pitch (mm) | 0.2745*0.2745 mm [92PPI] |
| Physical Size : | Active Viewing(mm) | 527.04(W)*296.46(H) mm | Bezel Area (mm) | 530.2(W)*299.6(H) mm |
| Outline Dim. (mm) | 543(W)*317.4(H) mm | Outline Depth | 8.2/11.4(Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 2.39Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
BOE MV238FHM-N10 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 13.6/19.4W (Typ./Max.) |
BOE MV238FHM-N10 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) |
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.62/1.5A (Typ./Max.) |
| Consumption | 3.1/7.5W (Typ./Max.) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1.0mm | 30pins | 1 pcs | LVDS-30P2C8B-160A |
BOE MV238FHM-N10 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 17S4P | Position | Edge light type (Bottom side) |
| Exchange |
- | Lamp Shape | 3strings | Lamp Life | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 47.6/50.2/52.7V (Min./Typ./Max.) | Current Supply | 70/75mA (Typ./Max.) |
| Consumption | 10.5/11.9W (Typ./Max.) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3708K-Q06N-00R | 1.0mm | 6pins | 1 pcs | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
BOE MV238FHM-N10 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 8pcs / box | - | 235*615*448 mm |
