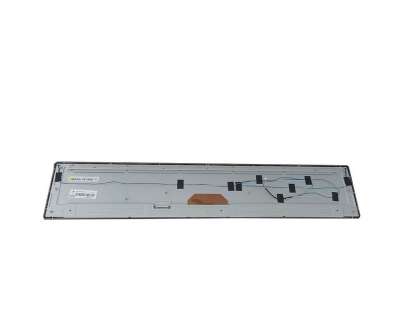

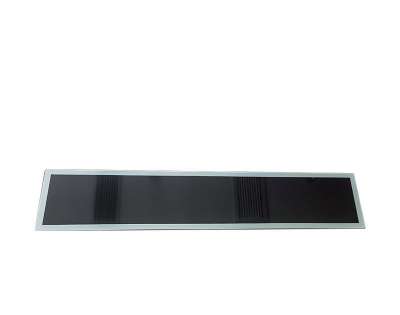

  • DV366FBM-N10 BOE 36.6 "Bar Type TFT IPS Strip LCD Panel 1920*290
  • DV366FBM-N10 BOE 36.6 "Bar Type TFT IPS Strip LCD Panel 1920*290
  • Model:DV366FBM-N10
  • Brand:BOE
  • Size:33.6inch
  • Resolution:1920×290
  • Brightness:700 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:0 ~ 50 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE DV366FBM-N10  Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    DV366FBM-N10

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    36.6"   (Native bar)

    Designed For

    Digital SignageOutdoor High Brightness

    Maximum Ratings :

    OP Temperature

    0 ~ 50 °C

    ST Temperature

    -20 ~ 60 °C

    RoHS

    RoHS

    Vibration Level

    1.5G (14.7 m/s²)

    Features :

    Landscape/PortraitHight Brightness WLED BacklightLife50k hoursBar Display Matte


    2BOE DV366FBM-N10 Mechanical Details

    Pixel Features :

    Number of Pixel

    1920(RGB)×1080, FHD

    Arrangement

    RGB Vertical Stripe

    Dot Pitch

    0.1596×0.4788 (H×V)

    Pixel Pitch

    0.4788×0.4788 (H×V)  [53PPI]

    Physical Size :

    Active Viewing

    919.3(H) × 138.85(V)

    Bezel Area(mm).

    924.3(H) × 143.85(V)

    Outline Dim.(mm)

    960(H) × 174.35(V)

    Depth(mm)

    16.9±0.5

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape / Portrait

    Aspect Ratio(W:H)

    >3:1 (H:V)

    Shape Style


    Mounting :

    Side mounting holes (10-M3) on left,   right, up,down bezel

    Other Detail :

    Mass


    3.26Kgs (Typ.)

    Surface

    Antiglare (Haze 1%)


    3BOE DV366FBM-N10 Optical Details

    Basic Information :

    Luminance

    700 cd/m² (Typ.)

    Contrast Ratio

    1200:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    8 (Typ.)(G to G) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

    ADS, Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.289; Wy:0.332

    Support Color

    16.7M (8-bit)

    Color Temperature

    7842K

    White Variation

    1.38 (Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    75%

    sRGB

    96% coverage

    Adobe RGB

    76% coverage

    DCI-P3

    78% coverage

    Rec.2020

    56% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    Dispaly Performance :

    Outdoor Visibility

    Sunlight Readable

    Transmissivity

    -



    4BOE DV366FBM-N10  Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No



     5BOE DV366FBM-N10 Interface Details

    Signal Electrical :

    Input Current

    450/600mA   (Typ./Max.)

    Input Voltage

    12.0V (Typ.)

    Consumption

    5.4/8W (Typ./Max.)

    Signal Interface

    LVDS (2 ch, 8-bit)

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    UJU

    IS050-C51B-C39-S

    0.5 mm

    51 pins


    1 pcs



    6BOE DV366FBM-N10  Lightting Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    -


    Position

    Edge light type

    Exchange

    -

    Lamp Shape

    -

    Lamp Life

    50K(Min.) (Hours)

    Lamp Electrical :

    Voltage Supply


    37.2/38.4V (Typ./Max.)

    Current Supply




    Consumption

    34.2W (Typ.)

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    CviLux

    CI0106S0000

    2.0 mm

    6pins

    1 pcs


    Backlight Driver :

    No


    7BOE DV366FBM-N10 Packing Details

    Box/Package

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    8

    1106×477×316

    N/A
