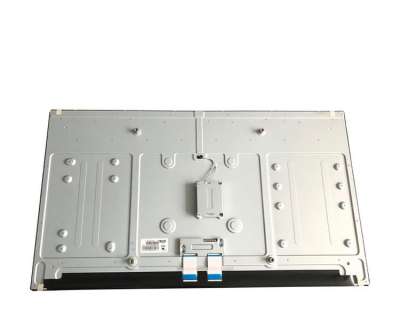

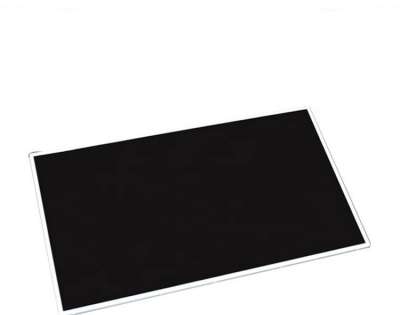

  • BOE 43 inch FHD LCD Panel DV430QUM-N10 Support 3840×2160,500nit
  • BOE 43 inch FHD LCD Panel DV430QUM-N10 Support 3840×2160,500nit
  • Model:DV430QUM-N10
  • Brand:BOE
  • Size:43.0inch
  • Resolution:3840×2160
  • Brightness:500 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:V-by-One 8 lane
  • Operating Temp.:0 ~ 50 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1BOE DV430QUM-N10 Application Details

    Basic Detail :

    Manufacturer

    BOE

    Model Name

    DV430QUM-N10

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    43.0inch

    Designed For

    Digital Signage

    Maximum Ratings :

    OP Temperature

    0 ~ 50 °C

    ST Temperature

    -20 ~ 60 °C

    RoHS

    RoHS

    Vibration Level

    1.5G (14.7 m/s²)

    Features :

    SrgbWLED BacklightWith LED Driver10bit, Matte


    2BOE DV430QUM-N10 Mechanical Details

    Pixel Features :

    Number of Pixel

    3840(3)×2160 [UHD]

    Arrangement

    RGB Vertical Stripe

    Dot Pitch (mm)

    0.0817×0.2451 mm (H×V)

    Pixel Pitch (mm)

    0.2451×0.2451 mm (H×V)  [103PPI]

    Physical Size :

    Active Viewing (mm)

    941.184×529.416 mm (H×V)

    Bezel Area(mm)


    -

    Outline Dim.(mm)

    961.7×550.1 mm (H×V)

    Depth(mm)

    11.7/27.7 (Typ./Max.) mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    16:9 (H:V)

    Shape Style


    Other Detail :

    Mass

    TBD


    Surface

    Antiglare (Haze 1%), Hard coating (3H)


    3BOE DV430QUM-N10 Optical Details

    Basic Information :

    Luminance

    500 cd/m² (Typ.)

    Contrast Ratio

    1200:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    8 (Typ.)(G to G) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Operating Mode

    ADS,   Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.280; Wy:0.290

    Support Color

    1.07B (10-bit)

    Color Temperature

    9969K

    White Variation

    1.25 (Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    73%

    sRGB

    98% coverage

    Adobe RGB

    76% coverage

    DCI-P3

    76% coverage

    Rec.2020

    55% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)



     4BOE DV430QUM-N10 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No



     5BOE DV430QUM-N10 Interface Details

    Signal Electrical :

    Input Current

    0.8/3.0A   (Typ./Max.)

    Input Voltage

    12.0V (Typ.)

    Consumption

    9.6/39W   (Typ./Max.)

    Signal Interface

    V-by-One 8 lane

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    CT

    F05035-51P-H

    0.5mm

    51 pins

    1 pcs



    6BOE DV430QUM-N10  Lightting Details

    Lamp Features :

    Lamp Type

    WLED

    Amount

    -

    Position

    Edge light type

    Exchange

    -

    Lamp Shape

    Array

    Lamp Life

    30K(Min.) (Hours)

    Lamp Electrical :

    Input Voltage

    67.2V (Typ.)

    Input Current

    480mA (Typ.)

    Consumption

    64.5W (Typ.)

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Quantity

    Pin Configuration



    2.0 mm

    14 pins

    1 pcs


    Backlight Driver :

    With LED Driver

    Driver Electrical :

    Voltage Input

    24±2V

    Current Input

    -
















    7BOE DV430QUM-N10 Packing Details

    Box/Package

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    10

    -

    N/A
