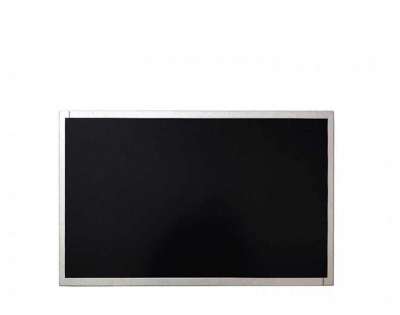

  • 17.0 inch 1280*1024 G170EGE-L50 tft screen lcd display tft lcd laptop screen tft
  • Model:G170EGE-L50
  • Brand:CHIMEI
  • Size:17inch
  • Resolution:1280×1024
  • Brightness:400 cd/m² (Typ.)
  • Perspective:85/85/80/80
  • Interface:LVDS
  • Operating Temp.:-30 ~ 80 °C
  • Production State:Discontinued
  • Click For Price
  • Technical Parameters
  • 1、Innolux G170EGE-L50 Application Details

    Basic Detail :

    Manufacturer

    Innolux

    Model Name

    G170EGE-L50

    Panel Type

    a-Si TFT-LCD , LCM

    Another Name


    Panel Size

    17.0 inch

    Designed For

    Industrial

    Maximum Ratings :

    OP Temperature

    -30 ~ 80 °C

    ST Temperature

    -40 ~ 85 °C

    RoHS

    RoHS

    Vibration Level

    1.5G (14.7 m/s²)

    Features :

    Wide Color Gamut,Wide Temperature,WLED Backlight,With LED Driver,Upside I/F,Matte


    2、Innolux G170EGE-L50 Optical Details

    Basic Detail :

    Luminance

    400 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Good View at

    -

    Response Speed

    1/4 (Typ.)(Tr/Td) (ms)

    Viewing Angle

    85/85/80/80 (Typ.)(CR≥10)

    Operating Mode

    TN, Normally White, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Support Color

    16.7M (8-bit)

    Color Temperature

    6485K

    White Variation

    1.25/1.33 (Typ./Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    72%

    sRGB

    95% coverage

    Adobe RGB

    74% coverage

    DCI-P3

    75% coverage

    Rec.2020

    54% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)


    3、Innolux G170EGE-L50 Mechanical Details

    Pixel Features :

    Number of Pixel

    1280(RGB)×1024 [SXGA]

    Arrangement

    RGB Vertical Stripe

    Dot Pitch(W×H)

    0.088×0.264 mm (H×V)

    Pixel Pitch(W×H)

    0.264×0.264 mm (H×V)  [96PPI]

    Physical Size :

    Active Viewing

    337.92×270.336 mm (H×V)

    Bezel Area

    341.9×274.4 mm (H×V)

    Outline Dim.

    358.5×296.5 mm (H×V)

    Outline Depth

    10.5/11 (Typ./Max.) mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    5:4

    Shape Style


    Fixation :

    Side mounting holes (4-M3) on left, right   bezel

    Other Detail :

    Mass

    1.26/1.40/1.47Kgs (Min./Typ./Max.)

    Surface

    Antiglare (Haze 25%), Hard coating (3H)



    4、Innolux G170EGE-L50 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No

    Total Consumption :

    TBD


    5、Innolux G170EGE-L50 Interface Detail

    Signal Electrical :

    Input Current

    490/580mA (Typ./Max.)

    Input Voltage

    5.0V (Typ.)

    Consumption

    2.45/2.9W (Typ./Max.)

    Signal Interface

    LVDS (2 ch, 8-bit)

    Interface Features :

    Position

    Upper right of panel

    Type

    Connector


    Interface Detail :

    Brand

    Model

    Pitch

    Pins

    Amount

    Pin Assignment

    FOXCONN

    GS23301-0321R-7H


    1.0mm

    30 pins

    1 pcs

    LVDS-30P2C8B-160A


    6、Innolux G170EGE-L50 Lightting Details

    Lamp Features :


    Lamp Type

    -

    Amount

    -

    Position

    Edge light type

    Exchange

    -

    Lamp Shape

    WLED

    Lamp Life

    40K(Min.) (Hours)

    Interface Features :

    Position

    -

    Type

    Connector

    Lamp Electrical :

    Voltage Input

    34.2/36/37.8V (Min./Typ./Max.)

    Current Input

    40±2.4mA

    Consumption

    5.76/6.05W (Typ./Max.)

    Backlight Driver :

    With LED Driver

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration

    JST

    SM10B-SHLS-TF

    1.0 mm

    10pins

    1 pcs


    Driver Electrical :

    Voltage Input

    12.0V (Typ.)


    Current Input

    -
















    7、 Innolux G170EGE-L50 Packing Details

    Box Type

    Pcs/Box

    Package LWH (mm)

    G.W (kgs)

    11

    440×280×375

    17.45
