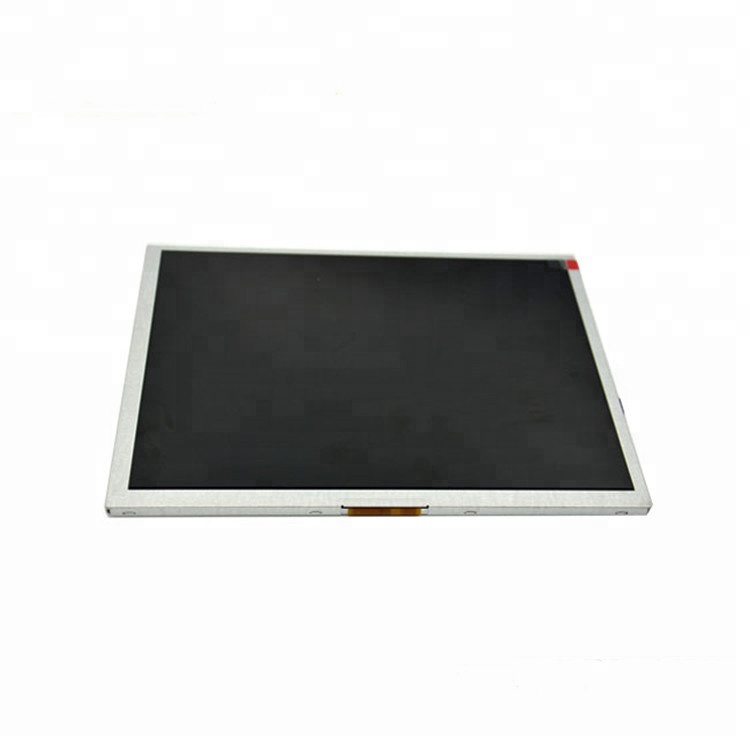

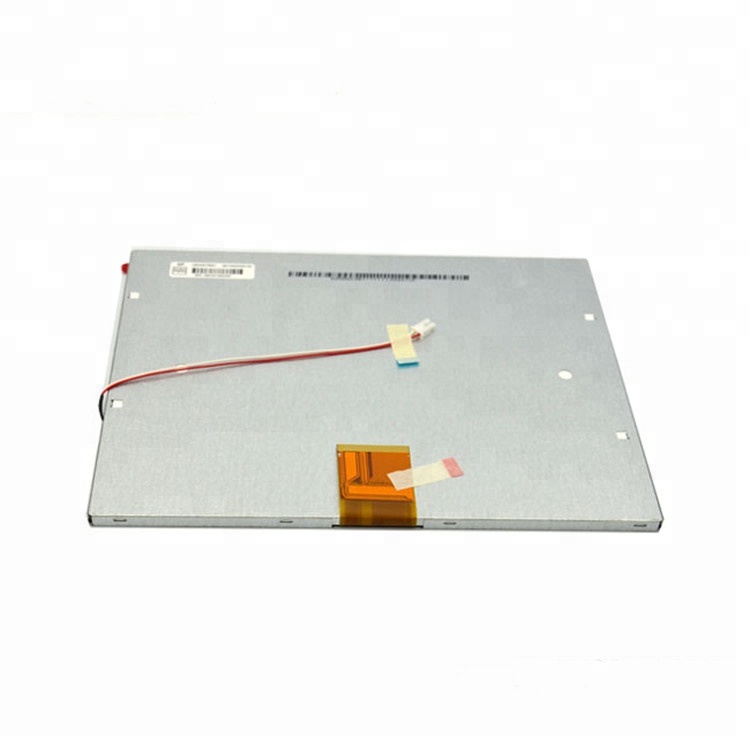

Chimei Innolux LSA40AT9001 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | LSA40AT9001 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.4” | Designed For | Digital Photo Frame，Portable DVD Player | |
| Maximum Ratings : | OP Temperature | -10 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | - | |
| Features : | WLED Backlight，6/8bit | |||
Chimei Innolux LSA40AT9001 Optical Details
| Basic Information : | Luminance | 250 cd/m²(Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.310; Y:0.330 | Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6638K | White Variation | - | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 70% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux LSA40AT9001 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.088*0.264 mm | Pixel Pitch (W*H) | 0.264*0.264 mm [96PPI] | |
| Physical Size : | Active Viewing(mm) | 211.2(W)*158.4(H) mm | Bezel Area (mm) | 214.2(W)*162.5(H) mm |
| Outline Dim.(mm) | 228.4(W)*175.4(H) mm) | Depth(mm) | 5.9±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Fixation : | Without | |||
| Other Spec : | Weight | 379g (Typ.) | Surface | Hard coating (3H) |
Chimei Innolux LSA40AT9001 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Time Controller (T-CON) : | Need external T-CON |
Chimei Innolux LSA40AT9001 Interface Details
| Signal Electrical : | Signal Interface | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||
| Signal Electrical : | Voltage Input | 3.3/10.5V (Typ.)(VCC/AVDD) | Current Input | 6/40mA (Typ.)(ICC/AIDD) | ||||
| Interface Features : | Position | - | Physical Type | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| 0.5mm | 60pins | 1 pcs | ||||||
Chimei Innolux LSA40AT9001 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S12P | Position | Edge light type | |||||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Min.) (Hours) | ||||||||
| Lamp Electrical : | Voltage Supply | 9.6/10.5V (Typ./Max.) | Current Supply | 240mA (Typ.) | |||||||||
| Consumption | 2.3/2.52W (Typ./Max.) | ||||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Backlight Driver : | No | ||||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||||
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-CA | ||||||||
Chimei Innolux LSA40AT9001 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 25pcs / box | 12.59±0.63 Kgs | 530*355*255 mm |
