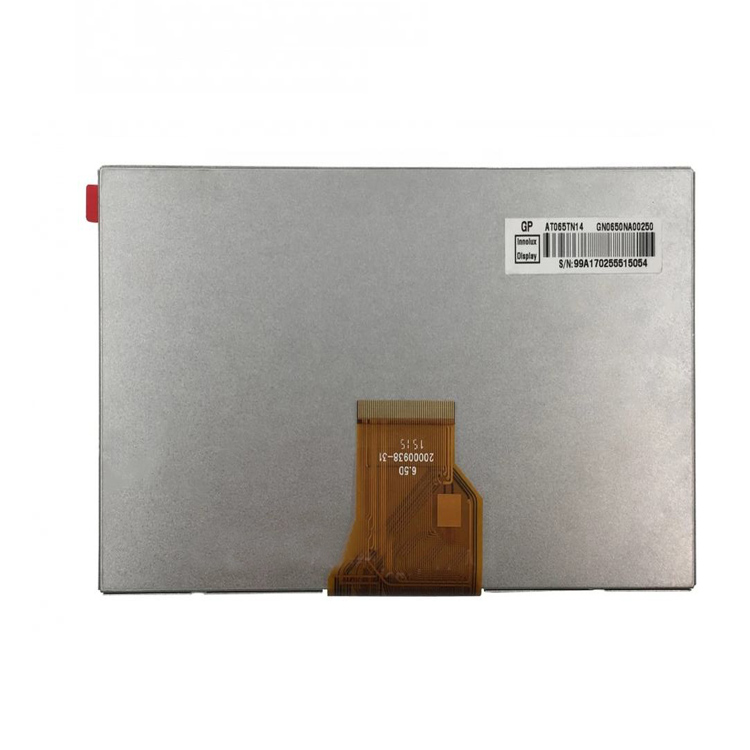

  • Original 6.5'' For Innolux 800*480 LCD Screen Display Module Panel AT065TN14

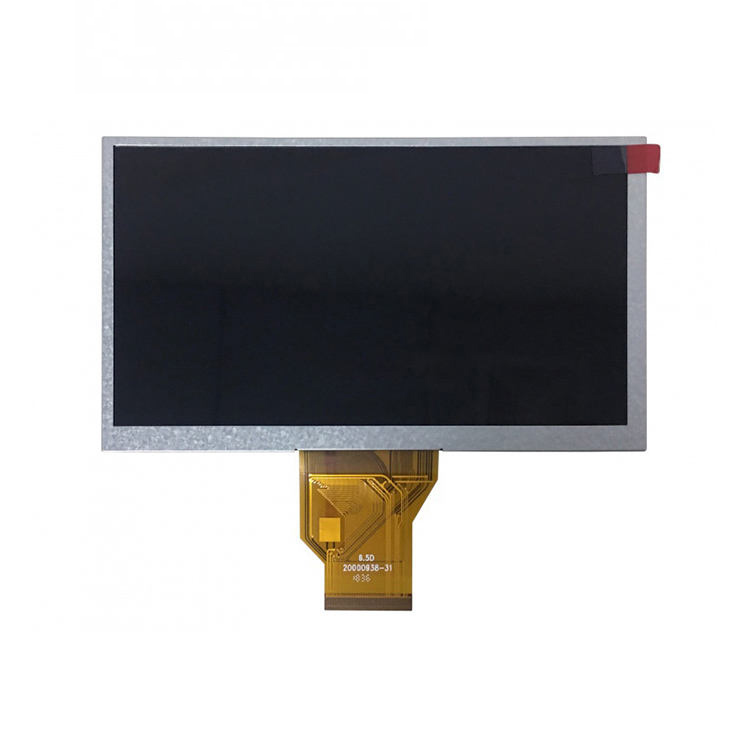

  • Original 6.5'' For Innolux 800*480 LCD Screen Display Module Panel AT065TN14
  • Model:AT065TN14
  • Brand:Innolux
  • Size:6.5inch
  • Resolution:800×480
  • Brightness:400 cd/m²
  • Perspective:70/70/50/70
  • Interface:RGB
  • Operating Temp.:-30 ~ 85 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Chimei Innolux AT065TN14 Application Details

    Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameAT065TN14
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size6.5”Designed ForAutomotive Display
    Maximum Ratings :OP Temperature-30 ~ 85  °C ST Temperature-30 ~ 85  °C
    RoHSRoHSVibration Level-
    Features :Wide Temperature。WLED Backlight,U/D.L/R Reverse,6/8 bit,Matte


    Chimei Innolux AT065TN14 Optical Details

    Basic Information :Luminance400 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
    Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.7M (6-bit / 6-bit + Dithering)

    Color Temperature
    6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


    Chimei Innolux AT065TN14 Mechanical Details

    Pixel Features :Number of Pixel800(RGB)*480, WVGAArrangementRGB Vertical Stripe
    Dot Pitch (mm)0.05975*0.1598 (H*V)Pixel Pitch (mm)0.17925*0.1598 (H*V)  [145PPI]
    Physical Size :Active Viewing(mm)143.4(H) *76.704(V)Bezel Area (mm)146.2(H) *78.7(V)
    Outline Dim.(mm)155.2(H) *89.4(V)Depth(mm)5.5±0.2
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio17:9 (H:V)OrientationLandscape type
    Other Spec :Weight127g (Typ.)SurfaceAntiglare


    Chimei Innolux AT065TN14 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Driver IC :COG Built-in NT39419, NT52001
    Time Controller (T-CON) :Embedded T-CON


    Chimei Innolux AT065TN14 Interface Details

    Signal Electrical :Signal Interface
     Parallel RGB (1 ch, 6/8-bit)

    Logic Voltage0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
    Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)Current Input4.0/20.0/0.6/0.6mA (Typ.)(DIDD/AIDD/IGH/IGL)
    Consumption0.24W (Typ.)

    Interface Features :Position-Physical TypeFPC
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


    0.5mm50 pins1 pcsDRGB-50P1C8B-115A


    Chimei Innolux AT065TN14 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity3S8PPositionEdge light type
    Exchange
    -
    Lamp ShapeArrayLamp Life20K(Min.) (Hours)
    Lamp Electrical :Voltage Supply9.3V (Typ.)Current Supply160mA (Typ.)
    Consumption1.45W (Typ.)
    Interface Features :Position-Physical TypeIncluded in panel signal interface
    Backlight Driver :No


    Chimei Innolux AT065TN14 Carton Details

    Package Box :AmountWeightSize (L*W*H)
    50pcs / box9.65±0.48 Kgs530*350*255 mm
