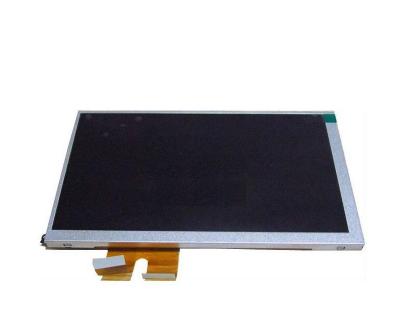

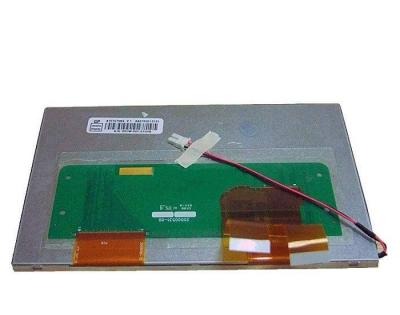

  • 800x480 INNOLUX 30 pin 7 inch TFT LCD Display AT070TN84 V.1
  • 800x480 INNOLUX 30 pin 7 inch TFT LCD Display AT070TN84 V.1
  • Model:AT070TN84 V.1
  • Brand:Innolux
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:450cd/m²
  • Perspective:70/70/50/70
  • Interface:RGB
  • Operating Temp.:-30 ~ 85 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Chimei Innolux AT070TN84 V.1 Application Details

    Basic Detail :Panel Brand

    INNOLUX/CHI MEIModel NameAT070TN84 V.1

    Panel Typea-Si TFT-LCD , LCMAnother NameAT070TN84 V1
    Panel Size7.0”Designed ForAutomotive Display,Digital Photo Frame,Portable DVD Player
    Maximum Ratings :OP Temperature-30 ~ 85 °C  ST Temperature-30 ~ 85 °C
    RoHSRoHSVibration Level-
    Features :Wide Temperature,WLED Backlight,U/D.L/R Reverse,Matte


    Chimei Innolux AT070TN84 V.1 Optical Details

    Basic Information :Luminance450 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
    Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K (6-bit)

    Color Temperature
    6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


    Chimei Innolux AT070TN84 V.1 Mechanical Details

    Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
    Dot Pitch (mm)0.0635*0.1905 mm (H*V)Pixel Pitch (mm)0.1905*0.1905 mm (H*V)  [133PPI]
    Physical Size :Active Viewing(mm)152.4*91.44 mm (H*V)Bezel Area (mm)155.2*94.2 mm (H*V)
    Outline Dim.(mm)165*104 mm (H*V)Depth(mm)5.5/6.3 (Typ./Max.) mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio15:9 (H:V)OrientationLandscape type
    Holes & Brackets :Without
    Other Spec :WeightTBDSurfaceAntiglare


    Chimei Innolux AT070TN84 V.1 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Power Consumption :2.219W (Typ.)
    Time Controller (T-CON) :Need external T-CON


    Chimei Innolux AT070TN84 V.1 Interface Details

    Signal Electrical :Signal InterfaceParallel RGB (1 ch, 6-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
    Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)Current Input5.0/40.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
    Consumption437mW (Typ.)
    Interface Features :Position-Physical TypeFPC
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


    0.5mm30 pins2 pcs


    Chimei Innolux AT070TN84 V.1 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
    Exchange
    -
    Lamp ShapeArrayLamp Life20K(Min.) (Hours)
    Lamp Electrical :Voltage Supply9.9±0.6VCurrent Supply170/180/200mA (Min./Typ./Max.)
    Consumption1.782W (Typ.)
    Interface Features :Position-Physical TypeConnector
    Backlight Driver :No
    Interface Detail :BrandModelPin PitchPinsAmountConfiguration
    JSTBHSR-02VS-13.5 mm

    2 pins1 pcsBLE-2PINS-AC


    Chimei Innolux AT070TN84 V.1 Carton Details

    Package Box :AmountWeightSize (L*W*H)
    50pcs / box11.55kgs530*355*255 mm
