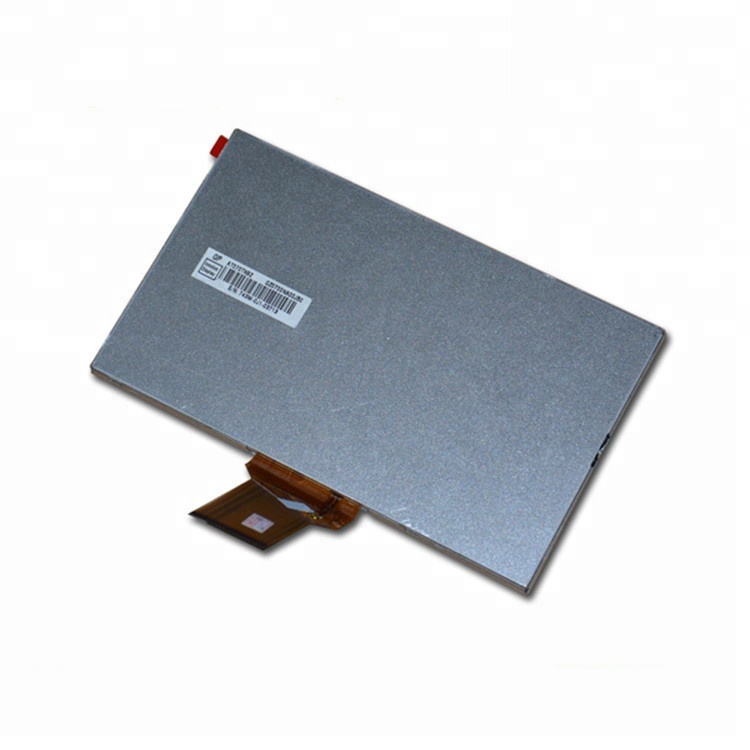

  • 800x480 INNOLUX 30 pin 7 inch TFT LCD Display AT070TN93 V.2

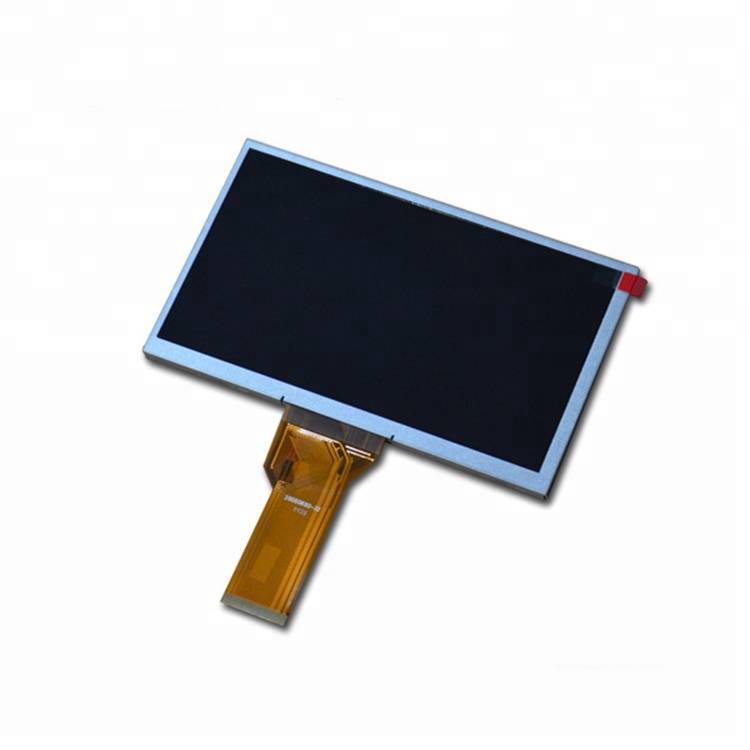

  • 800x480 INNOLUX 30 pin 7 inch TFT LCD Display AT070TN93 V.2
  • Model:AT070TN93 V.2
  • Brand:Innolux
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:250cd/m²(Typ.)
  • Perspective:70/70/50/70
  • Interface:RGB
  • Operating Temp.:-20 ~ 60 °C
  • Production State:Discontinued
  • Click For Price
  • Technical Parameters
  • Chimei Innolux AT070TN93 V.2 Application Details

    Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameAT070TN93 V.2
    Panel Typea-Si TFT-LCD , LCMAnother NameAT070TN93 V2
    Panel Size7.0”Designed ForDigital Photo Frame,Portable DVD Player,MP3 PMP
    Maximum Ratings :OP Temperature-20 ~ 60 °CST Temperature-30 ~ 70 °C
    RoHSRoHSVibration Level-
    Features :WLED Backlight,U/D.L/R Reverse,6/8bit,Matte


    Chimei Innolux AT070TN93 V.2  Optical Details

    Basic Information :Luminance250 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
    Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.2M (6-bit / 6-bit + Dithering)

    Color Temperature
    6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


    Chimei Innolux AT070TN93 V.2  Mechanical Details

    Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
    Dot Pitch (mm)0.0642*0.1790 (H×V)Pixel Pitch (mm)0.1926*0.1790 (H*V)  [134PPI]
    Physical Size :Active Viewing(mm)154.08(H) *85.92(V)Bezel Area (mm)156.7(H) *89.1(V)
    Outline Dim.(mm)164.9(H) *100(V)Depth(mm)3.35±0.3
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio16:9 (H:V)OrientationLandscape type
    Holes & Brackets :Without
    Other Spec :Weight117g (Typ.)SurfaceAntiglare


    Chimei Innolux AT070TN93 V.2  Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Power Consumption :1.90W (Typ.)
    Time Controller (T-CON) :Embedded T-CON


    Chimei Innolux AT070TN93 V.2  Interface Details

    Signal Electrical :Signal InterfaceParallel RGB (1 ch, 6/8-bit)Logic Voltage0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
    Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)Current Input226mW (Typ.)
    Consumption226mW (Typ.)
    Interface Features :Position-Physical TypeFPC
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


    0.5mm50 pins1 pcsDRGB-50P1C8B-115A


    Chimei Innolux AT070TN93 V.2  Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
    Exchange
    -
    Lamp ShapeArrayLamp Life20K(Min.) (Hours)
    Lamp Electrical :Voltage Supply9.3±0.6VCurrent Supply170/180/200mA (Min./Typ./Max.)
    Consumption1.674W (Typ.)
    Interface Features :Position-Physical TypeIncluded in panel signal interface
    Backlight Driver :No


    Chimei Innolux AT070TN93 V.2  Carton Details

    Package Box :AmountWeightSize (L*W*H)
    50pcs / box9.03 Kgs (Typ.)530*355*255 mm
