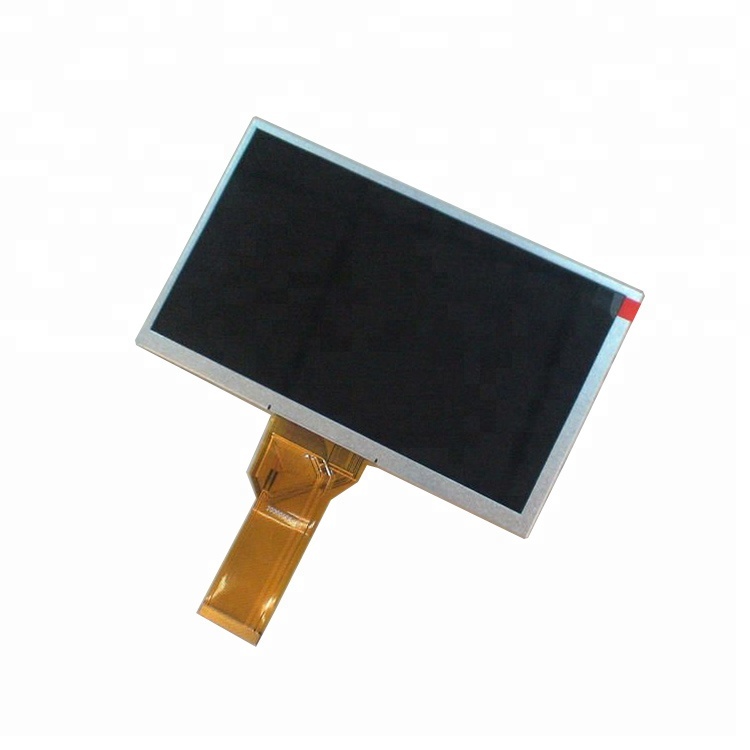

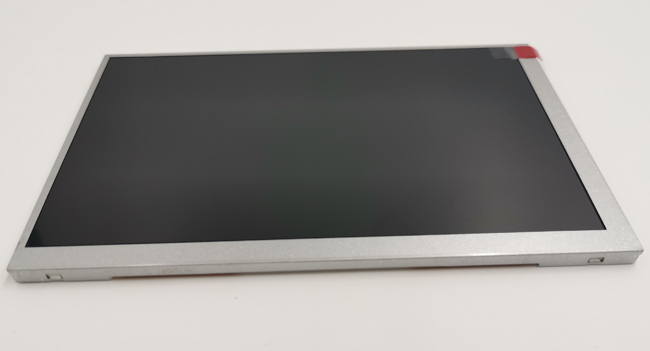

  • InnoLux Display AT070TN83 V.1 TFT LCD 7 inch 800x480 TFT LCD Displays Tcon board
  • InnoLux Display AT070TN83 V.1 TFT LCD 7 inch 800x480 TFT LCD Displays Tcon board
  • Model:AT070TN83 V.1
  • Brand:Innolux
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:300 cd/m²
  • Perspective:70/70/50/70
  • Interface:TTL
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Chimei Innolux  AT070TN83 V.1 Application Details

    Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name AT070TN83 V.1
    Panel Typea-Si TFT-LCD , LCMAnother NameAT070TN83 V1
    Panel Size7.0”Designed ForDigital Photo Frame,Portable DVD Player,MP3 PMP
    Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
    RoHSRoHSVibration Level-
    Features :WLED Backlight,U/D.L/R Reverse,With LED Driver,Matte


    Chimei Innolux  AT070TN83 V.1 Optical Details

    Basic Information :Luminance300 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
    Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K (6-bit)

    Color Temperature
    6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


    Chimei Innolux  AT070TN83 V.1  Mechanical Details

    Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W*H)0.0635*0.1905 mmPixel Pitch (W*H)0.1905*0.1905 mm  [133PPI]
    Physical Size :Active Viewing(mm)152.4(W)*91.44(H) mmBezel Area (mm)155.3(W)*94.3(H) mm
    Outline Dim.(mm)165(W)*104(H) mmDepth(mm)5.5±0.3 mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio15:9 (H:V)OrientationLandscape type
    Holes & Brackets :Without
    Other Spec :Weight130g (Typ.)SurfaceAntiglare


    Chimei Innolux  AT070TN83 V.1  Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Power Consumption :3.325W (Typ.)
    Time Controller (T-CON) :Embedded T-CON


    Chimei Innolux  AT070TN83 V.1  Interface Details

    Signal Electrical :Signal InterfaceTTL (1 ch, 6-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
    Signal Electrical :Voltage Input3.3V (Typ.)(VCC)Current Input250/300mA (Typ./Max.)(ICC)
    Consumption825mW (Typ.)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    HRS
     FH19SC-40S-0.5SH
    0.5mm40 pins1 pcsDRGB-40P1C6B-260B


    Chimei Innolux  AT070TN83 V.1 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
    Exchange
    -
    Lamp Shape-Lamp Life20K(Min.) (Hours)
    Interface Features :Position-Physical Type
     Included in panel signal interface
    Backlight Driver :With LED Driver
    Driver Electrical :Input Voltage5.0V (Typ.)Input Current500/550mA (Typ./Max.)
    Consumption2.50W (Typ.)


    Chimei Innolux  AT070TN83 V.1  Carton Details

    Package Box :AmountWeightSize (L*W*H)
    50pcs / box9.528±5% Kgs530*355*255 mm
