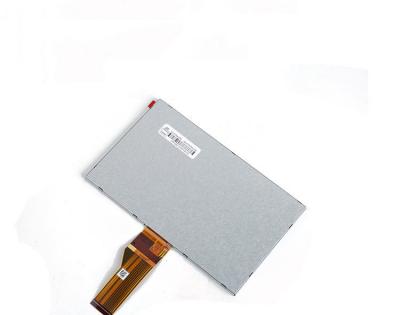

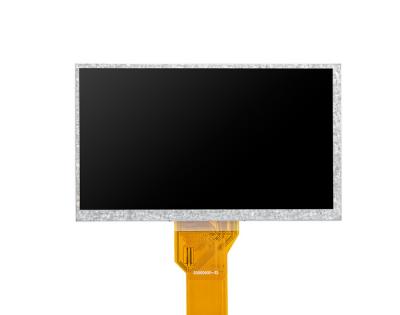

  • Original Innolux 7" 1024*600 TFT LCD Screen Display Module Panel NJ070NA-23A
  • Original Innolux 7" 1024*600 TFT LCD Screen Display Module Panel NJ070NA-23A
  • Model:NJ070NA-23A
  • Brand:Innolux
  • Size:7.0inch
  • Resolution:1024×600
  • Brightness:500 cd/m²
  • Perspective:75/75/70/75
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Chimei Innolux  NJ070NA-23A Application Details

    Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name NJ070NA-23A
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size7.0”Designed ForAutomotive Display
    Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
    RoHSRoHSVibration Level1.5G (14.7 m/s² )
    Features :WLED Backlight,U/D.L/R Reverse,6/8bit


    Chimei Innolux  NJ070NA-23A Optical Details

    Basic Information :Luminance500 cd/m² (Typ.)Contrast Ratio800 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
    Viewing Angle75/75/70/75(Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.7M (6-bit / 8-bit)

    Color Temperature
    6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


    Chimei Innolux  NJ070NA-23A  Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)*600, WSVGAArrangementRGB Vertical Stripe
    Dot Pitch (mm)0.0502*0.1432 (H*V)Pixel Pitch (W×H) (mm)0.1432*0.1432 (H*V)  [170PPI]
    Physical Size :Active Viewing(mm)154.214(H) *85.92(V)Bezel Area (mm)157.21(H) * 89.49(V)
    Outline Dim.(mm)164.9(H) * 100(V)Depth(mm)4.8±0.3
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio16:9 (H:V)OrientationLandscape type
    Holes & Brackets :Without
    Other Spec :Weight140g (Typ.)SurfaceAHard coating


    Chimei Innolux  NJ070NA-23A  Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Power Consumption :3.02W (Typ.)
    Driver IC :COG Built-in NT51008QH-D 3EA + NT52003BH 3EB


    Chimei Innolux  NJ070NA-23A  Interface Details

    Signal Electrical :Signal InterfaceLVDS (1 ch, 6/8-bit)Logic Voltage
    -
    Signal Electrical :Voltage Input3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)Current Input35/20/0.26/0.26mA (Typ.)(DIDD/AIDD/IGH/IGL)
    Consumption0.4W (Typ.)
    Interface Features :Position-Physical TypeFPC
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


    0.5mm40 pins1 pcs


    Chimei Innolux  NJ070NA-23A Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
    Exchange
    -
    Lamp Shape-Lamp Life20K(Min.) (Hours)
    Lamp Electrical :Voltage Supply8.4/9.9/10.2V (Typ./Max.)Current Supply265mA (Typ.)
    Consumption2.62W (Typ.)
    Interface Features :Position-Physical Type
     Included in panel signal interface
    Backlight Driver :No


    Chimei Innolux  NJ070NA-23A  Carton Details

    Package Box :AmountWeightSize (L*W*H)
    50pcs / box10.12±0.51Kgs525*362*250 mm
