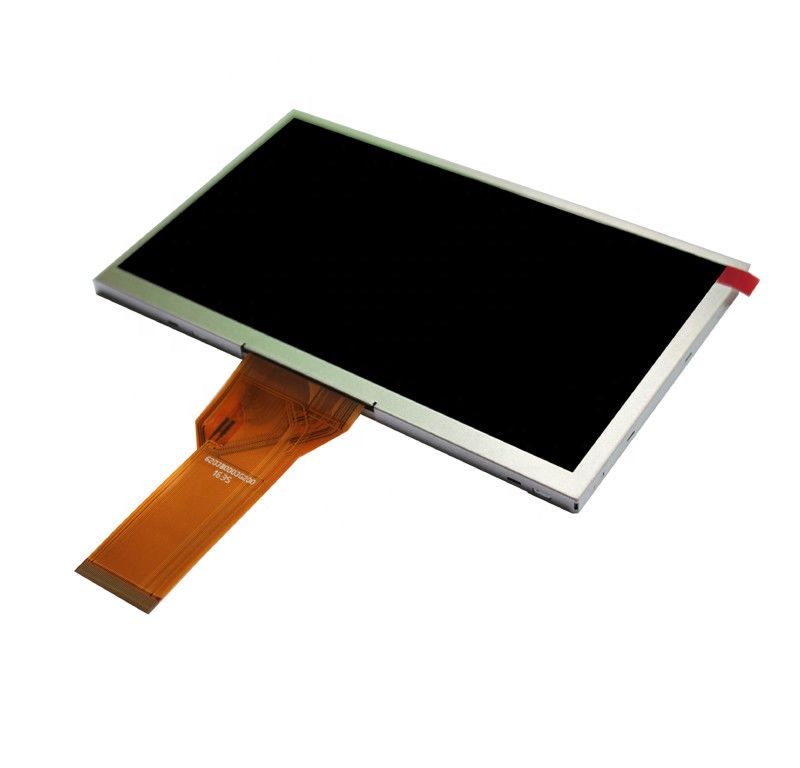

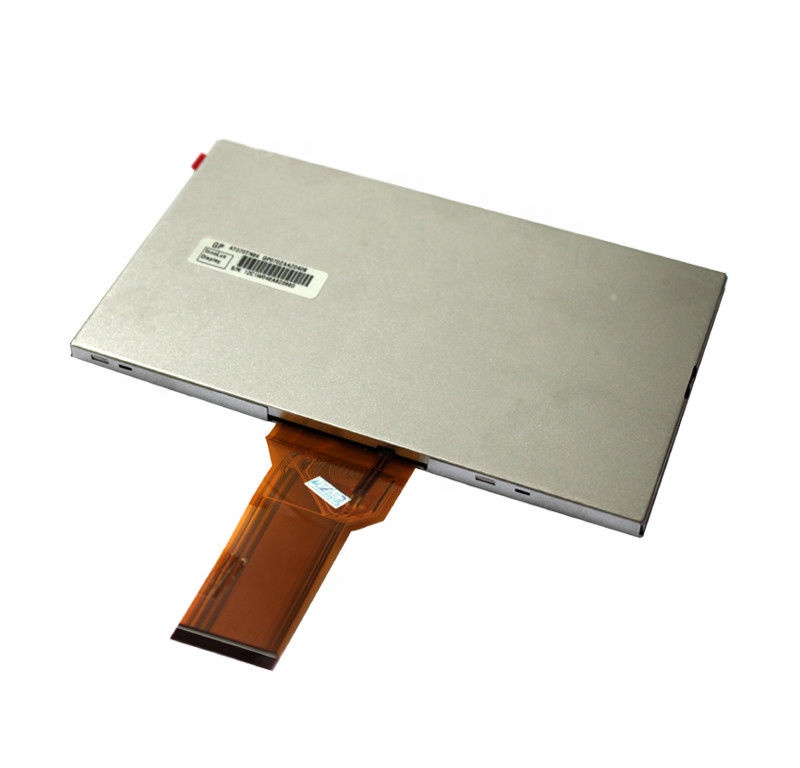

  • AT070TN94 7 inch Tft Lcd Panel Screen 800*480 Wled 400nits Innolux Display
  • AT070TN94 7 inch Tft Lcd Panel Screen 800*480 Wled 400nits Innolux Display
  • Model:AT070TN94
  • Brand:Innolux
  • Size:7.0英寸
  • Resolution:800×480
  • Brightness:400cd/m²(Typ.)
  • Perspective:70/70/50/70 (Typ.)
  • Interface:RGB
  • Operating Temp.:-30 ~ 85 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • AT070TN94 Group Innovation Optoelectronics has changed, as AT070TN94 CELL FAB has been transferred from FabT0 to FAB T1, and LCM production base has been transferred from Nanjing to Ningbo. The design of AT070TN94 has been changed.


     Innolux  7.0inch AT070TN94 Application Details

    Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameAT070TN94
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size7.0”Designed ForAutomotive Display,Portable DVD Player
    Maximum Ratings :OP Temperature-30 ~ 85°CST Temperature-30 ~ 85°C
    RoHSRoHSVibration Level1.5G (14.7 m/s²)
    Features :Wide Temperature,WLED Backlight,U/D.L/R Reverse,6/8bit,Matte


    Innolux  7.0inch  AT070TN94 Optical Details

    Basic Information :Luminance400 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed25 (Typ.)(Tr+Tf) ms
    Viewing Angle75/75/70/75(Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.7M (6-bit / 6-bit + Dithering)

    Color Temperature
    6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


    Innolux  7.0inch  AT070TN94 Mechanical Details

    Pixel Features :Number of Pixel800(RGB)*480, WVGAArrangementRGB Vertical Stripe
    Dot Pitch (mm)0.0642*0.1790 mmPixel Pitch (W×H) (mm)0.1926*0.1790 mm  [134PPI]
    Physical Size :Active Viewing(mm)154.08(W)*85.92(H) mmBezel Area (mm)156.7(W)*89.1(H) mm
    Outline Dim.(mm)164.9(W)*100(H) mmDepth(mm)5.7±0.3 mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio16:9 (H:V)OrientationLandscape type
    Holes & Brackets :Without
    Other Spec :Weight154g (Typ.)SurfaceAntiglare


    Innolux  7.0inch  AT070TN94 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Power Consumption :1.90W (Typ.)
    Driver IC :COG NT39419, TN52001
    Time Controller (T-CON) :Embedded T-CON


    Innolux  7.0inch  AT070TN94  Interface Details

    Signal Electrical :Signal Interface
    LVDS (1 ch, 6/8-bit)

    Logic Voltage0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
    Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)Current Input4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
    Consumption226mW (Typ.)
    Interface Features :Position-Physical TypeFPC
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


    0.5mm50pins1 pcsDRGB-50P1C8B-115A


    Innolux  7.0inch AT070TN94 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
    Exchange
    -
    Lamp ShapeArrayLamp Life20K(Min.) (Hours)
    Lamp Electrical :Voltage Supply9.3±0.9VCurrent Supply170/180/200mA (Min./Typ./Max.)
    Consumption1.674W (Typ.)
    Interface Features :Position-Physical TypeIncluded in panel signal interface
    Backlight Driver :No


    Innolux 7.0inch AT070TN94  Carton Details

    Package Box :AmountWeightSize (L*W*H)
    50pcs / box10.68±0.53 Kgs530*355*255 mm
