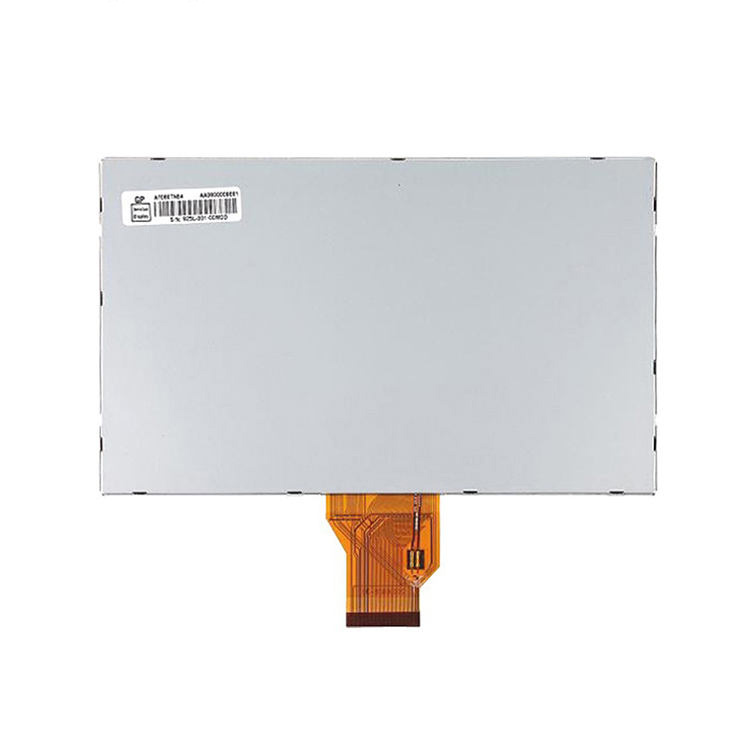

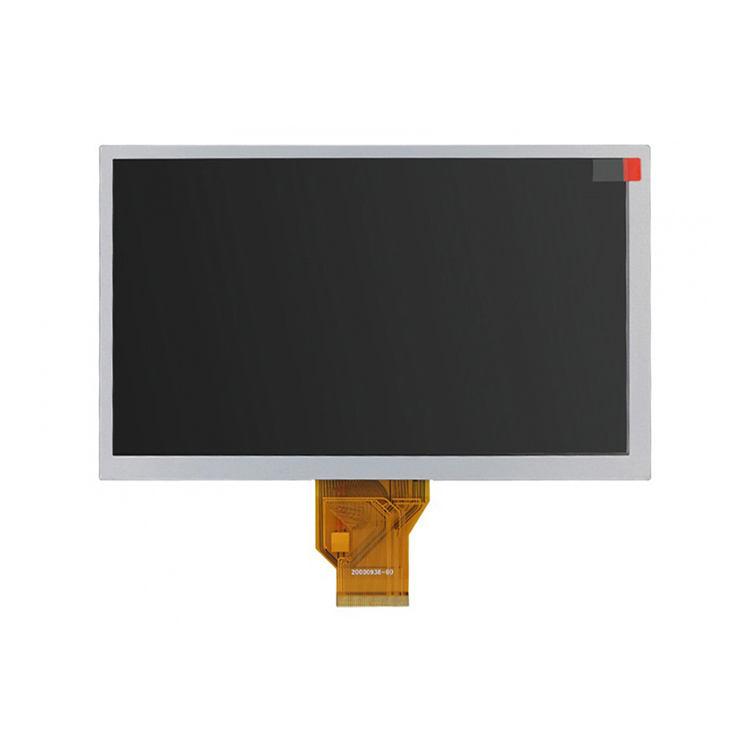

Chimei Innolux AT080TN64 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | AT080TN64 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 8.0” | Designed For | Automotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Wide Temperature，WLED Backlight，U/D.L/R Reverse，6/8bit，Matte | |||
Chimei Innolux AT080TN64 Optical Details
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.310; Y:0.330 | Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering) |
Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
Chimei Innolux AT080TN64 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0736*0.2070 (H*V) | Pixel Pitch (W*H) (mm) | 0.2208*0.2070 (H*V) [116PPI] | |
| Physical Size : | Active Viewing(mm) | 176.64(H) *99.36(V) | Bezel Area (mm) | 180.1(H) × 103.4(V) |
| Outline Dim.(mm) | 192.8(H) *116.9(V) | Depth(mm) | 6.4±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 245g (Typ.) | Surface | Antiglare |
Chimei Innolux AT080TN64 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.90W (Typ.) |
| Driver IC : | COG Built-in NT39419BH-D/4ID + NT52001H-D/4IC |
| Time Controller (T-CON) : | Embedded T-CON |
Chimei Innolux AT080TN64 Interface Details
| Signal Electrical : | Signal Interface | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤0.1DVDD≤0.3DVDD; 0.7DVDD≤0.9DVDD≤DVDD | ||||
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Input | 4.0/20.0/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL) | ||||
| Consumption | 226mW (Typ.) | |||||||
| Interface Features : | Position | - | Physical Type | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| 0.5mm | 50pins | 1 pcs | DRGB-50P1C8B-115A | |||||
Chimei Innolux AT080TN64 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S12P | Position | Edge light type | |||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Min.) (Hours) | ||||
| Lamp Electrical : | Voltage Supply | 9.3±0.9V | Current Supply | 240±24mA | |||||
| Consumption | 2.232W (Typ.) | ||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | No | ||||||||
Chimei Innolux AT080TN64 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 30pcs / box | 10.26±0.51 Kgs | 535*370*265 mm |
