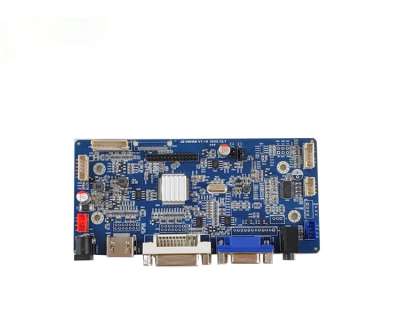

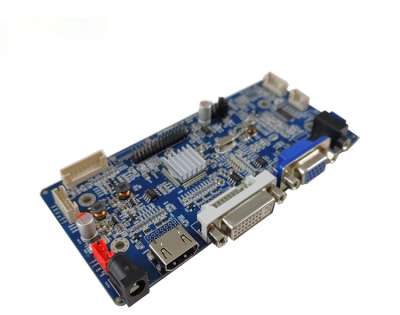

  • VDH68 HDMI LCD driver board VGA DVI to LVDS board
  • VDH68 HDMI LCD driver board VGA DVI to LVDS board
  • Model:VDH68
  • Brand:Xuhong
  • Aximum:1920*1200
  • Size:≤ 82”
  • Maximum resolution supported:
  • Interface signal:VGA/DVI/HDMI
  • LCDinterface:
  • Operating Temp.:-30 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Project

    Describe

    Chip Scheme

    MTK9700

    Supports maximum resolution

    1920*1200

    Support size

     82”

    Interface signal

    1 VGA input, 1 DVI input, 1 HDMI input, 1   audio input, 2x8W amplifier output

    Input power

    +12V single power supply, Jianyi uses a   power adapter of 54W or above

    Function

    LCD driver board: supports DDCCI   protocol, automatic photosensitivity, knob dimming, multiple languages, gamma   settings (preset with 7 gamma curves), composite synchronization, SOG   support. Stable performance and large shipment volume.

    LCD screen interface

    LVDS/eDP

    Storage conditions

    temperature-40 to 80; relative   humidity 5% to 85%

    Working conditions

    temperature-30 to 70; relative   humidity   20% to 80%

    Size

    139*66*16mm

    Application scope

    Industrial LCD displays, HDMI displays,   special occasion displays, and other LCD driver boards and LCD control boards
