  • RTD2552 V0 LCD display driver board
  • RTD2552 V0 LCD display driver board
  • Model:RTD2552 V0
  • Brand:Xuhong
  • Aximum:1920*1080
  • Size:121*70*3.5mm
  • Maximum resolution supported:
  • Interface signal:VGA/DVI/HDMI
  • LCDinterface:
  • Operating Temp.:-20 ~ 75 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • RTD2552 V0 Product Overview:

      This driver motherboard is mainly used to support TFT LCD crystal injection screens. The driver board comes with 1 channel VGA, 1 channel DVI, and 1 channel HDMI input, supporting LVDS output interface. The motherboard adopts REALTEK signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals. Use high-quality devices with good working performance.


    RTD2552 V0 Function:

    Supports HDMI input,

    VGA input, up to 1080P support

    Supports buttons and LED indicator lights

    Backlight control, backlight brightness adjustment

    Dual LVDS LCD screen interface

    Serial communication, ISP upgrade

    Expand ADC port and connect external photosensitive components for automatic brightness adjustment


    RTD2552 V0 Product Characteristics Description

    Input signal

    Simulate R, G, B

    support mode

    DOSVGASVGAXGASXGA UXGAWXGAWXGA+WSXGA+

    colour

    Up to 32BIT

    Line synchronization range

    25KHz-85KHz

    Field synchronization range

    60-75Hz

    HDMI, DVI signals

    support mode

    Maximum resolution 1920x1080

    power supply

    INPUT VOLTAGE

    10-14v

    Working power consumption

    <5w

    standby power

    <0.5w

    Screen voltage

    3.3v/5v/12v

    power operation

    Working mode, standby mode

    Other

    OSD Language

    Simplified Chinese, English

    OSD function

    Automatic adjustment, color adjustment,   image adjustment, etc



    Analog R, G, B Support List

    mode

    Resolution

    Line frequency (KHz)

    Field frequency (Hz)

    Standard

    DOS

    640*480

    720*400

    29.7

    29.3

    60

    70

    VESA

    VGA

    640*480

    29.7

    37.7

    60

    75

    VESA

    SVGA

    800*600

    37.4

    47.1

    60

    75

    VESA

    XGA

    1024*768

    47.8

    60.3

    60

    75

    VESA

    SXGA

    1280*1024

    63.7

    80.3

    60

    75

    VESA

    WXGA

    1440*900

    55.9

    70.6

    60

    75

    VESA

    WSXGA+

    1680*1050

    65.3

    82.3

    60

    75

    VESA

    UXGA

    1920*1080

    67.2

    84.6

    60

    75

    VESA

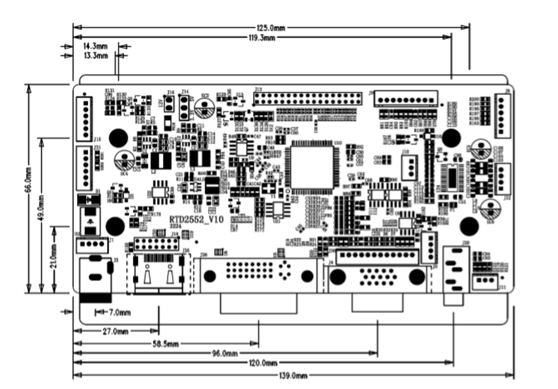

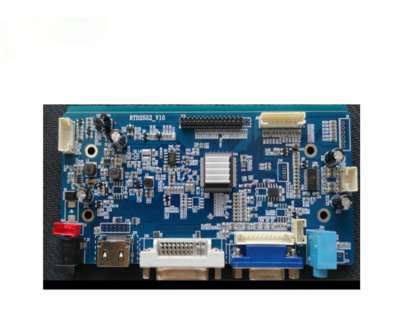

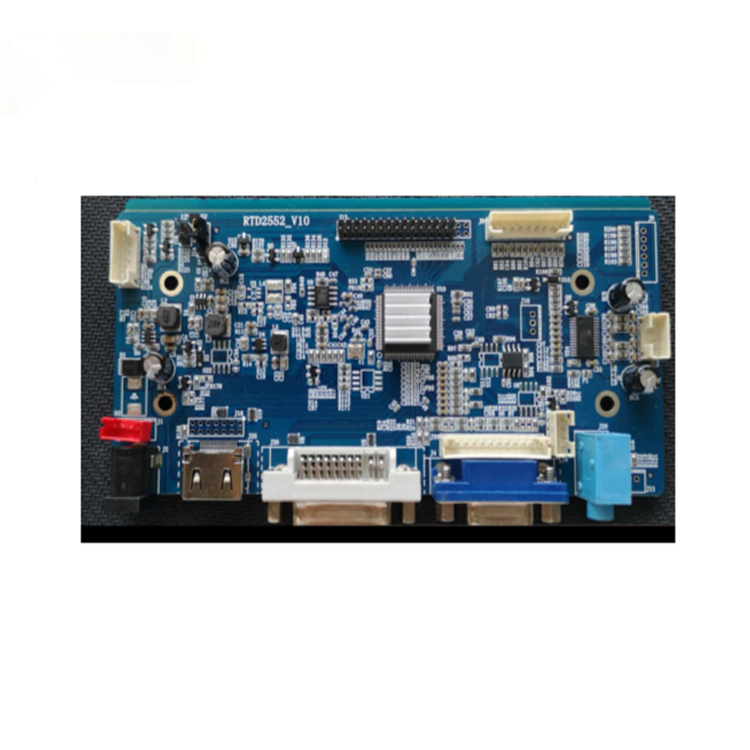

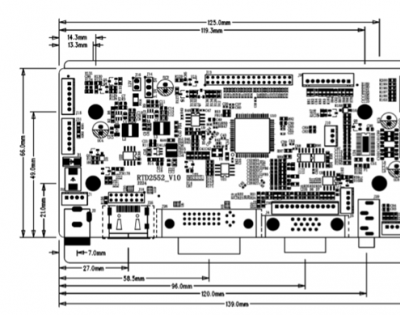

    RTD2552 V0 Appearance

    RTD2552 V0 Product size


      PCB thickness plus highest part:

      PCB length: 121mm

      PCB width: 70mm

      PCB screw aperture: 3.5mm

      Precautions for use:

      Relative humidity: ≤ 80%

      Storage temperature: -30~+80 ℃

      Operating temperature: -20~+75 ℃

      Please keep the board away from static electricity

      Do not be subjected to heavy pressure or bending deformation

      Do not connect the power supply until the drive screen cable is properly connected

      Do not drop conductive objects onto the board while it is working

      Do not disassemble the board

      If there is dust on the board, please wipe it with a dry cloth
