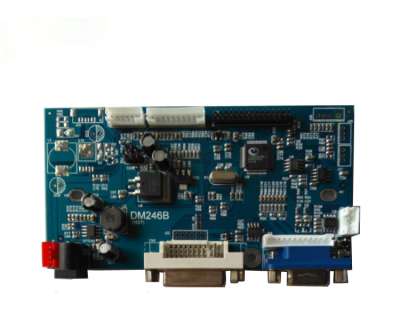

  • DM246B compatible with VD58 can achieve analog R, G, B signals, DVI signal proce
  • DM246B compatible with VD58 can achieve analog R, G, B signals, DVI signal proce
  • DM246B compatible with VD58 can achieve analog R, G, B signals, DVI signal proce
  • Model:DM246B
  • Brand:Xuhong
  • Aximum:1920×1080
  • Size:123*65*10mm
  • Maximum resolution supported:
  • Interface signal:DVI/VGA
  • LCDinterface:
  • Operating Temp.:
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  •   1、 Product Overview: This product is a LCD display driver motherboard launched by our company, suitable for various LCD displays with dual port or single port LVDS interface types; Can achieve analog R, G, B signals, DVI signal processing, with a maximum resolution of UXGA;


    Product Characteristics Description

    Input signal

    Simulate R, G, B

    support mode

    DOSVGASVGAXGASXGA UXGAWXGAWXGA+WSXGA+

    colour

    Up to 32BIT

    Line synchronization range

    25KHz-85KHz

    Field synchronization range

    60-75Hz

    power supply

    INPUT VOLTAGE

    10-14v

    Working power consumption


    standby power


    Screen voltage

    3.3v/5v/12v

    power operation

    Working mode, standby mode

    Other

    OSD Language

    Simplified Chinese, English

    OSD function

    Automatic adjustment, color adjustment,   image adjustment, etc



    Analog R, G, B Support List

    mode

    Resolution

    Line frequency (KHz)

    Field frequency (Hz)

    Standard

    DOS

    640*480

    720*400

    29.7

    29.3

    60

    70

    VESA

    VGA

    640*480

    29.7

    37.7

    60

    75

    VESA

    SVGA

    800*600

    37.4

    47.1

    60

    75

    VESA

    XGA

    1024*768

    47.8

    60.3

    60

    75

    VESA

    SXGA

    1280*1024

    63.7

    80.3

    60

    75

    VESA

    WXGA

    1440*900

    55.9

    70.6

    60

    75

    VESA

    WSXGA+

    1680*1050

    65.3

    82.3

    60

    75

    VESA

    UXGA

    1920*1080

    67.2

    84.6

    60

    75

    VESA



    Transportation, storage, and usage requirements

    Do not be subjected to heavy pressure or bending deformation

    Anti static and water

    Relative humidity: ≤ 80%

    Storage temperature: -30~+80 ℃

    Operating temperature: -25~+75 ℃

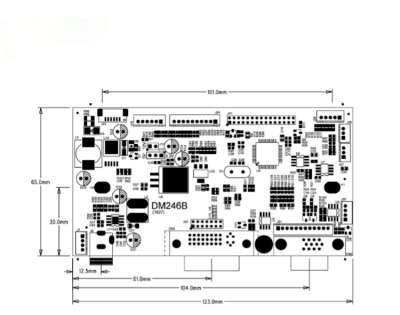

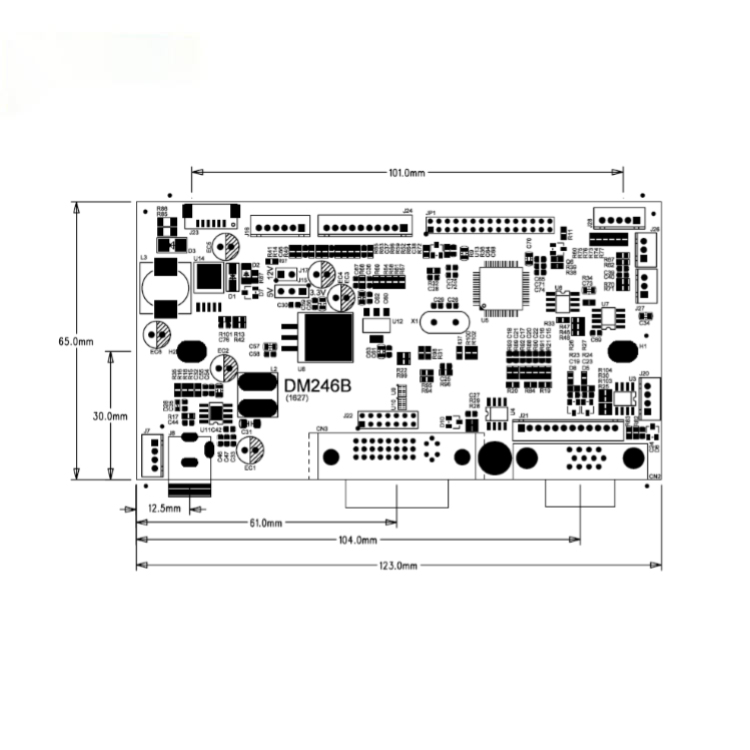

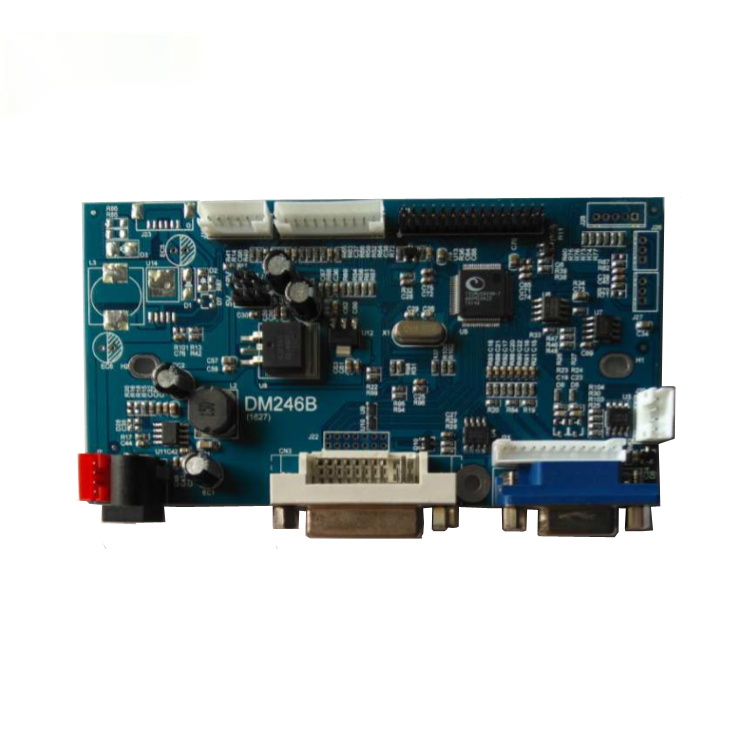

    Appearance

     Product size


      PCB thickness plus maximum part: 10mm

      PCB length 123mm

      PCB width 65mm

      PCB screw aperture 3.5mm

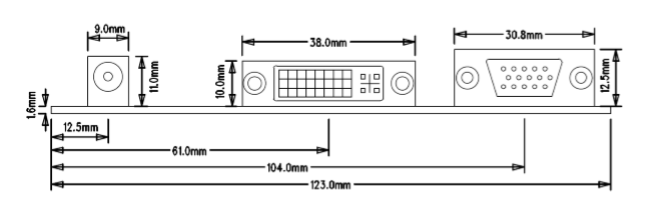

    Interface diagram
