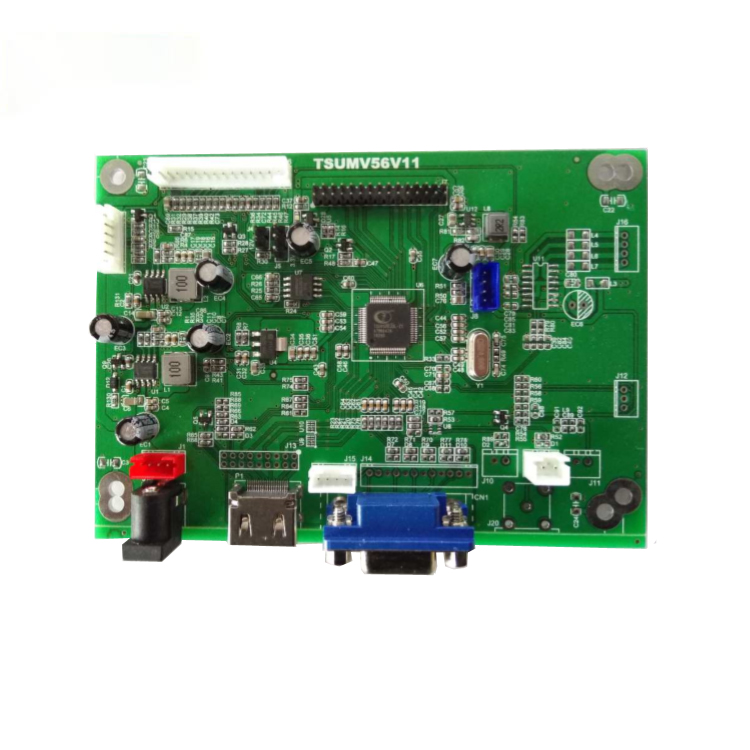

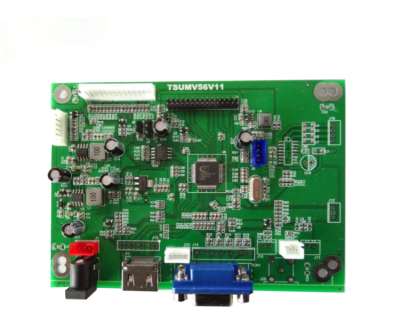

  • TSUMV56V11 Industrial LCD Driver Board
  • TSUMV56V11 Industrial LCD Driver Board
  • Model:TSUMV56V11
  • Brand:Xuhong
  • Aximum:1920×1080
  • Size:124*85*10mm
  • Maximum resolution supported:
  • Interface signal:VGA/HDMI
  • LCDinterface:
  • Operating Temp.:-10 ~ 50 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  •   1、 Product Overview

      This product is a LCD display driver motherboard launched by our company, suitable for various LCD displays with dual port or single port LVDS interface types; It can achieve analog R, G, B signals, HDMI signals, and 2-channel CVBS signal processing. Sound processing, 2x3W power amplifier output. The main chip adopts a 32-bit RISC high-speed and high-performance CPU. Comb filtering and progressive scanning processing of NTS/PAL/SECAM video signals. HDMI meets the 1.4b standard, while HDCP meets the 1.4 standard.


    Product Characteristics Description

    Input signal

    Simulate R, G, B

    support mode

    DOS、VGA、SVGA、XGA、SXGA、 UXGA、WXGA、WXGA+、WSXGA+

    colour

    Up to 32BIT

    Line synchronization range

    25KHz-85KHz

    Field synchronization range

    60-75Hz

    Composite signal CVBS

    Input Voltage

    0.7Vpp~1.0Vpp

    Video format

    NTSC M/N、PAL B,G/H,I,D/K、 SECAM



    HDMI 信号

    Video format

    480p、720p、1080p

    HDMI

    1.4b

    HDCP

    1.4

    Audio power amplifier

    Amplifier type

    Class D

    Load impedance

    Power

    2x3W

    Crosstalk

    -95db

    power supply

    INPUT VOLTAGE

    10-14v

    Working power consumption

    2W

    standby power

    0.4W

    Screen voltage

    3.3v/5v/12v

    power operation

    Working mode, standby mode

    Other

    OSD Language

    Simplified Chinese, English

    OSD function

    Automatic adjustment, color adjustment,   image adjustment, etc



    Analog R, G, B Support List

    mode

    Resolution

    Line frequency (KHz)

    Field frequency (Hz)

    Standard

    DOS

    640*480

    720*400

    29.7

    29.3

    60

    70

    VESA

    VGA

    640*480

    29.7

    37.7

    60

    75

    VESA

    SVGA

    800*600

    37.4

    47.1

    60

    75

    VESA

    XGA

    1024*768

    47.8

    60.3

    60

    75

    VESA

    SXGA

    1280*1024

    63.7

    80.3

    60

    75

    VESA

    WXGA

    1440*900

    55.9

    70.6

    60

    75

    VESA

    WSXGA+

    1680*1050

    65.3

    82.3

    60

    75

    VESA

    UXGA

    1920*1080

    67.2

    84.6

    60

    75

    VESA


     Transportation, storage, and usage requirements

     Do not be subjected to heavy pressure or bending deformation

     Anti static and water

     Relative humidity: ≤ 80%

     Storage temperature: -10~+50 ℃

     Operating temperature: -10~+50 ℃

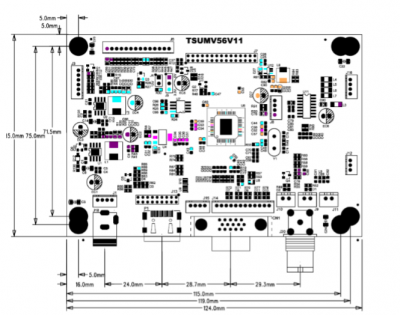

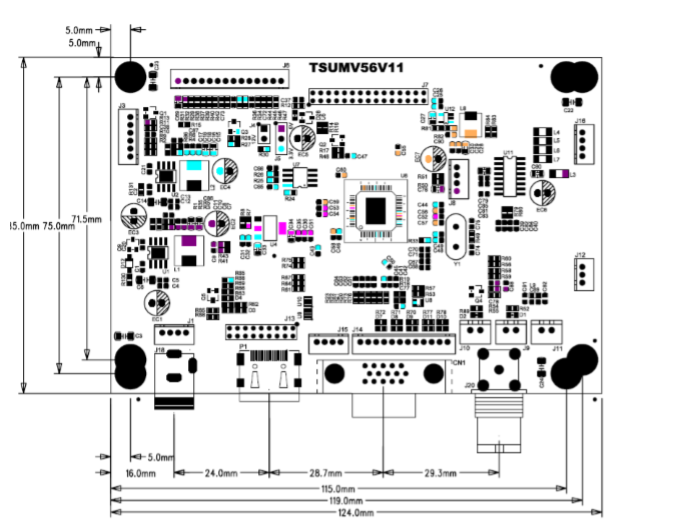

    Appearance


    Product size



      PCB thickness plus maximum part: 10mm

      PCB length 124mm

      PCB width 85mm

      PCB screw aperture 3.5mm
