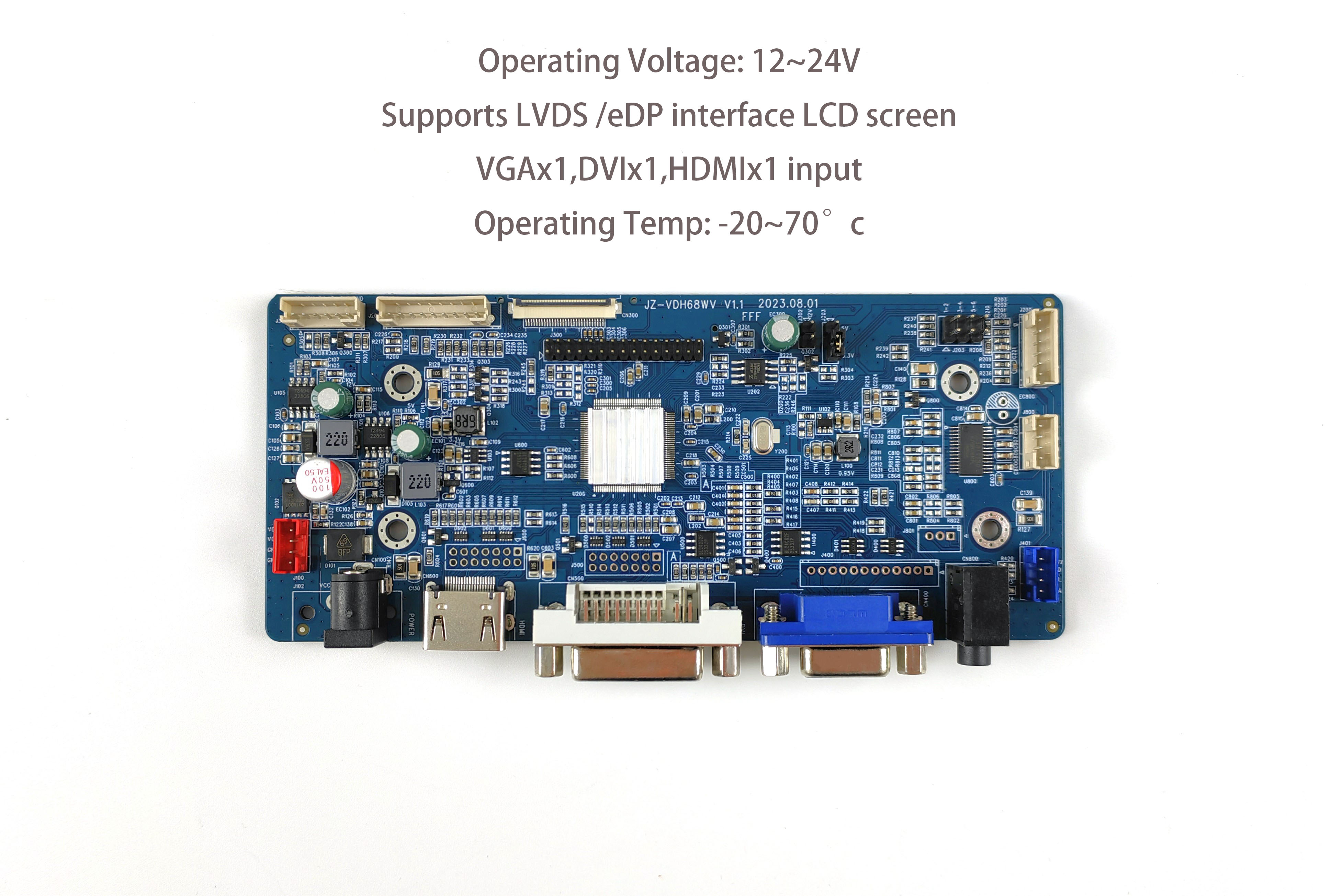

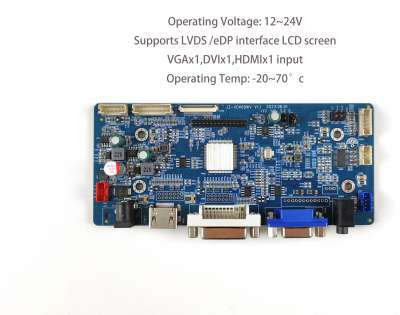

  • VDH68WV  Board Operating Voltage: 12~24VSupports LVDS /eDP interface LCD screen
  • VDH68WV  Board Operating Voltage: 12~24VSupports LVDS /eDP interface LCD screen
  • VDH68WV  Board Operating Voltage: 12~24VSupports LVDS /eDP interface LCD screen
  • Model:JZ-VDH68WV
  • Brand:Xuhong
  • Aximum:1920x1200
  • Size:≤ 82”
  • Maximum resolution supported:
  • Interface signal:LVDS /eDP
  • LCDinterface:
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price

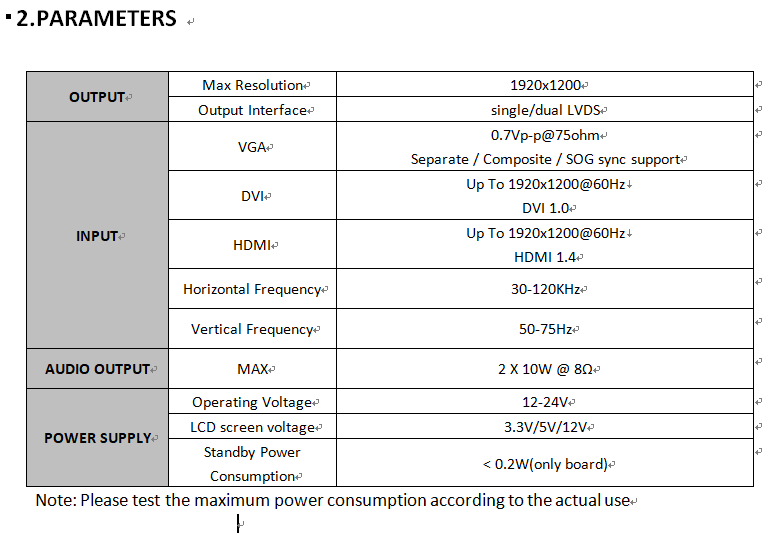

  • Technical Parameters
  •

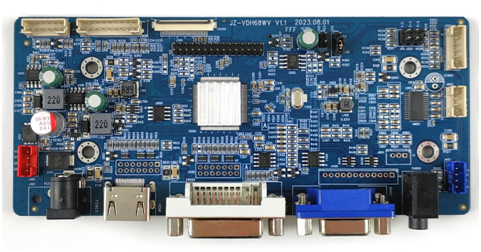

      The driver board JZ-VDH68WV is mainly used to support TFT LCD screens with max resolution 1920x1200. It has 1xVGA, 1xDVI, 1xHDMI input interfaces, supports LVDS and eDP output interfaces. This board adopts MTK signal processing chip which has powerful processing function and supports all kinds of standard and non-standard signals. The driver board JZ-VDH68WV uses high specification components, with good performance.

      Key Features:

      * Max resolution:1920x1200

      * Operating temperature: -20 ~70℃

      * Audio amplifier 2x10W

      * Support serial port protocol control

      * Automatic photosensitive control (optional)

      * Remote control function (optional)

      * The general resolutions support 85Hz

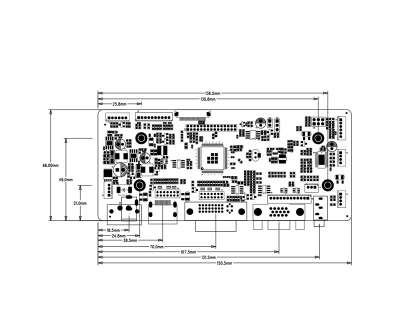

    Size:150.5mm (length) x 66.0mm (width)

    PCB Thickness:1.60mm

    Total height:15.0mm

    Screw hole:3.5mm
