Your location:Home > Products > LCD Driver Board >

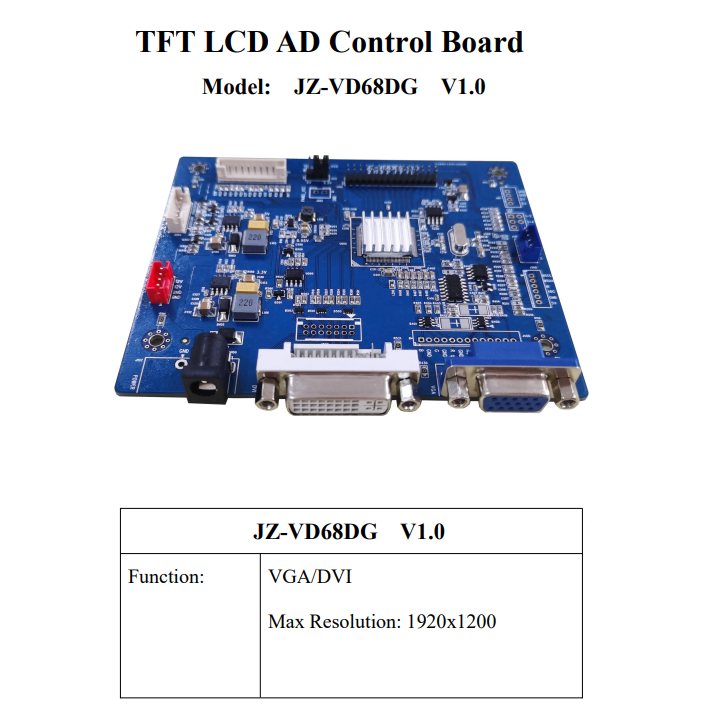

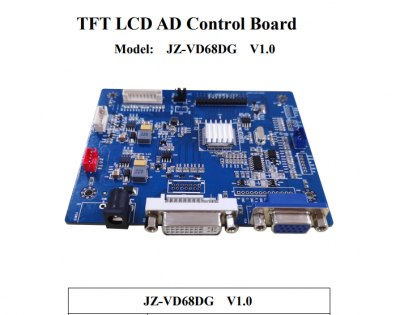

  • JZ-VD68DG is TFT LCD monitor controller board with VGA+DVI inputs
  • JZ-VD68DG is TFT LCD monitor controller board with VGA+DVI inputs
  • JZ-VD68DG is TFT LCD monitor controller board with VGA+DVI inputs
  • Model:JZ-VD68DG
  • Brand:Xuhong
  • Aximum:≤ 1920*1200
  • Size:JZ-VD68DG
  • Maximum resolution supported:
  • Interface signal:VGA+DVI
  • LCDinterface:
  • Operating Temp.:-40 ~ 65 °C
  • Production State:In Production
  • Click For Price

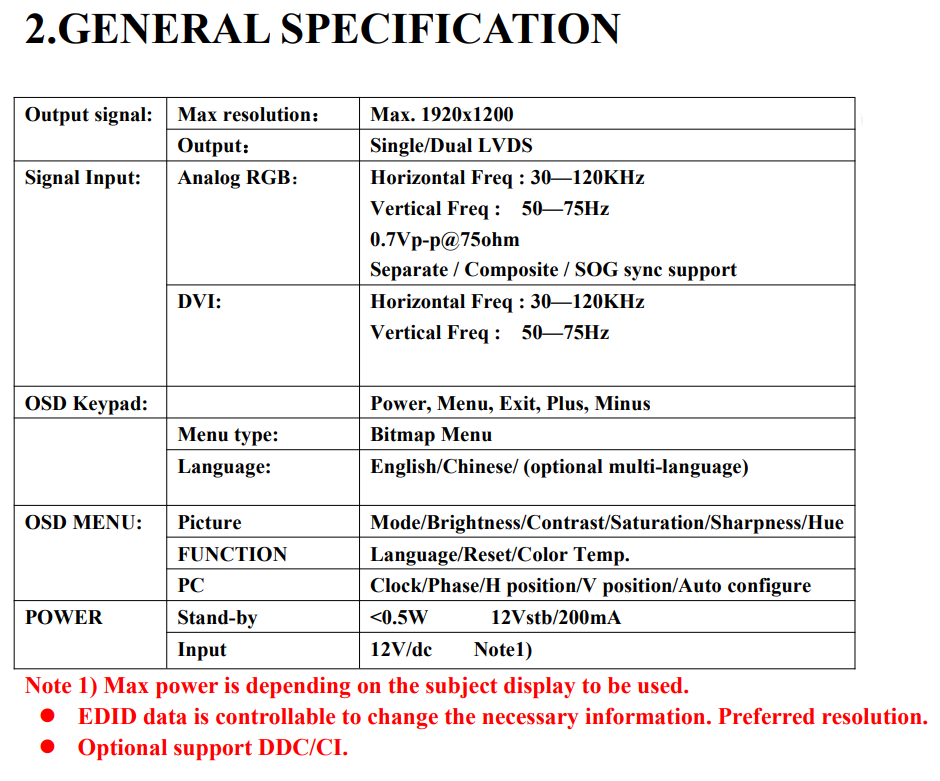

  • Technical Parameters

  • JZ-VD68DG is a high-quality TFT LCD monitor controller board with VGA+DVI inputs, As the board is designed to act as a full monitor interface , besides the main functionality, also various appealing On-Screen-Display Menu layouts are possible on customer’s request.


    Key features:

    * LVDS output resolution up to 1920x1200

     * Light sensor (optional)

    * Working temperature: -40 -- 65

    * Function of remote control * Support IR function

    * Support LVDS interfaces

     * Support serial port protocol control

     * High grade anti-static electricity

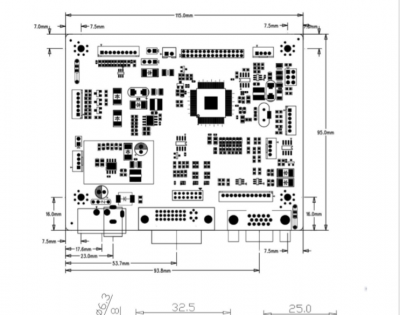

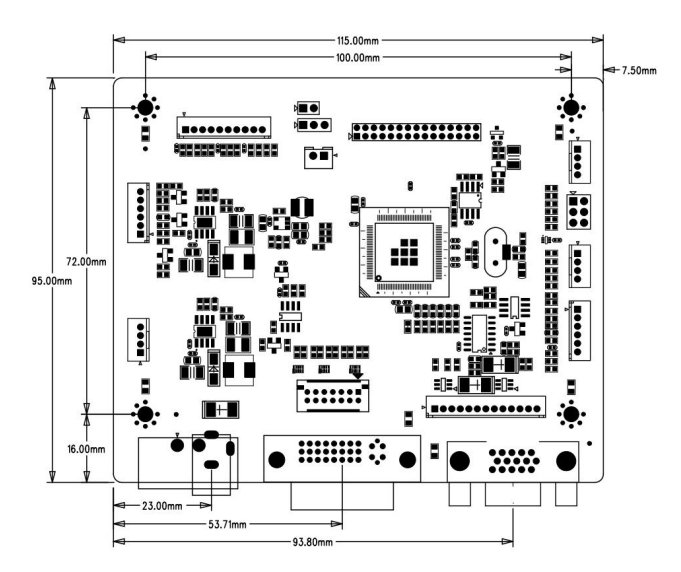

    4. CONTROLLER DIMENSIONS

    PCB height: 1.6 mm

    Total height: 15.0 mm

     Length and width: 115.0 x 95.0 mm



    More details, please contact with us Email:market@hzxuhong.com
