  • RTD2553_V10 wide temperature drive board with 1 VGA and 1 HDMI input
  • RTD2553_V10 wide temperature drive board with 1 VGA and 1 HDMI input
  • Model:RTD2553_V10
  • Brand:Xuhong
  • Aximum:≤ 1920×1080
  • Size:≤ 82”
  • Maximum resolution supported:
  • Interface signal:1 VGA and 1 HDMI input
  • LCDinterface:
  • Operating Temp.:-20 ~ 75 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1.     INTRODUCTION

    This driver board is mainly used to support TFT LCD crystal injection screens. The driver board comes with 1 VGA and 1 HDMI input, and supports LVDS output interface. The motherboard adopts REALTEK signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals. Using high specification devices with good working performance.


    2Key features:

    Supports HDMI input,

    VGA input, supports up to 1080P

    Supports buttons and LED indicator lights

    Backlight control, backlight brightness adjustment

    Dual LVDS LCD screen interface

    Serial communication, ISP upgrade

    Expand the ADC port and connect external photosensitive components for automatic brightness adjustment


    3Product feature description

    Input signal

    Analog RGB

    Support mode

    DOSVGASVGAXGASXGA UXGAWXGAWXGA+WSXGA+

    Color

    Up to 32BIT

    Row synchronization range

    25KHz-85KHz

    Field synchronization range

    60-75Hz

    HDMIDVI 信号

    Support mode

    Maximum resolution 1920x1080



    POWER

    Input voltage

    10-14v

    Working power consumption

    <5w

    Stand-by

    <0.5w

    Screen voltage

    3.3v/5v/12v

    Power operation

    Working mode, standby mode

    Others

    OSD language

    Simplified Chinese, English

    OSD function

    Automatic adjustment, color adjustment,   image adjustment, etc

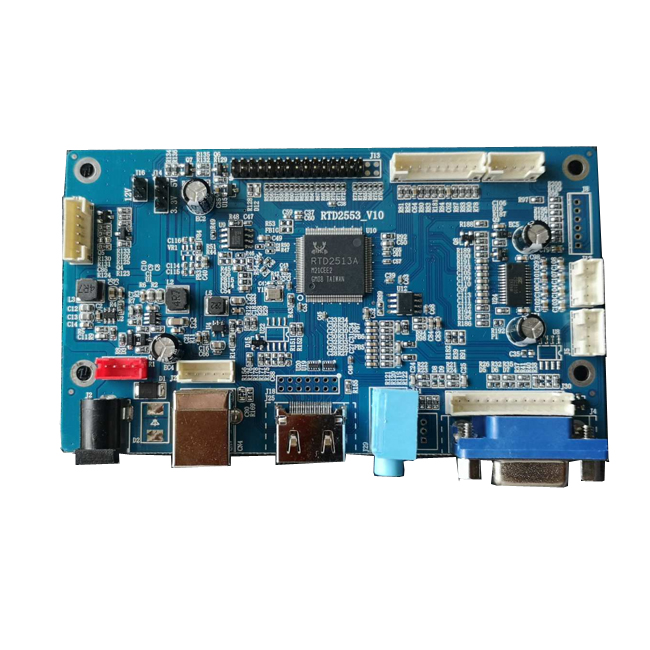

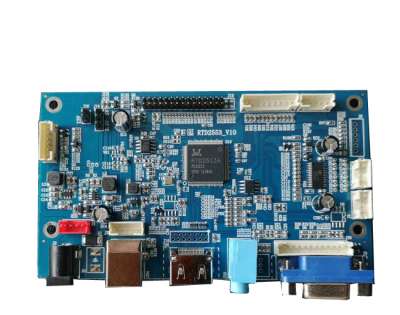

    4Product appearance

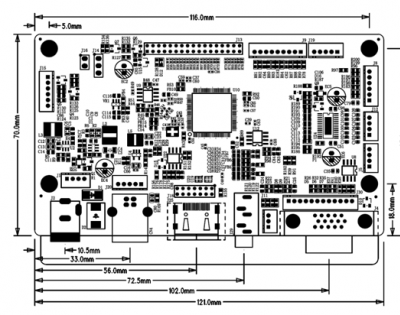

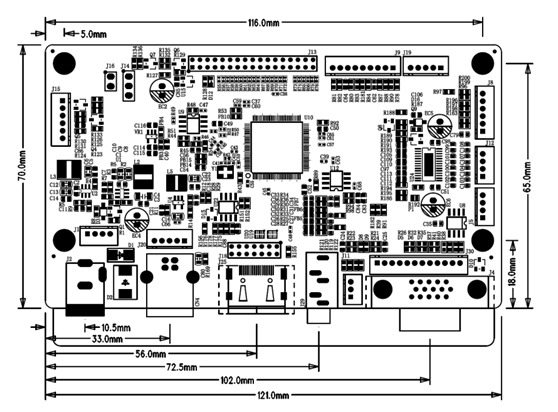

    5Product size



    PCB thickness plus highest part:

    PCB length: 121mm

    PCB width: 70mm

    PCB screw aperture: 3.5mm



    Precautions for use

    Relative humidity: 80%

    Storage temperature: -30~+80

    Operating temperature: -20~+75

    Please keep the board away from static electricity

    Do not be subjected to heavy pressure or bending deformation

    Do not connect the power supply until the drive screen cable is properly connected

    Do not drop conductive objects onto the board while it is in operation

    Do not disassemble the board

    If there is dust on the board, please wipe it with a dry cloth
