1、Product Overview
This driver board is mainly used to support TFT LCD screens. Driver board with 1 VGA and 1 DVI, supporting LVDS input Exit the interface. The motherboard adopts MTK signal processing chips, which have powerful processing functions and can support various specifications of standard and non-standard signals.
Using high specification devices with good working performance.
2、Key features:
The working temperature range is -40 to 65 ℃.
Optional addition of automatic photosensitive control.
Supports maximum resolution up to 1920x1200.
Can receive remote control function.
The basic resolution is supported up to 85Hz (if the LCD screen used can work at 85Hz).
The amplifier supports a maximum of 2x2W.
Supports serial protocol control.
3、Product feature description
Display output | Maximum resolution: | Max：1920*1200 | |||||
Output interface: | Single/Dual/ LVDS | ||||||
Support signal | Analog RGB： | Horizontal Freq | 30—120KHz | ||||
Vertical Freq | 50—75Hz | ||||||
0.7Vp-p@75ohm | |||||||
Separate / Composite / SOG sync support | |||||||
Numbers DVI： | Horizontal Freq | 30—120KHz | |||||
Vertical Freq | 50—75Hz | ||||||
Keys | Power, Menu, Exit, Plus, Minus | ||||||
Menu Type | Graphical menu | ||||||
Language support | 16 languages including Chinese and English support | ||||||
Functional operation | Picture | Mode/Brightness/Contrast/Saturation/Sharpness/Hue | |||||
FUNCTION | Language/Reset/Color Temp. | ||||||
PC | Clock | Phase | H position | V position | Auto configure | ||
POWER | Input voltage | 12V/dc Note1: | |||||
Stand-by | <0.5W 12Vstb/200mA | ||||||

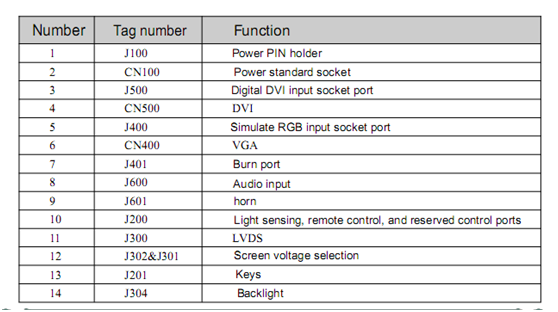

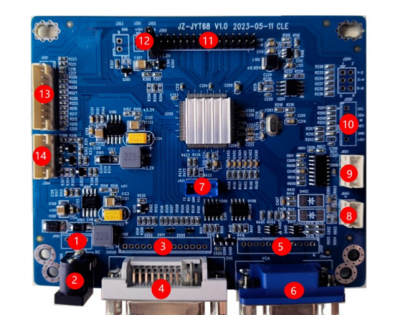

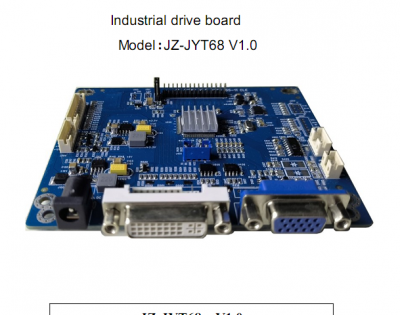

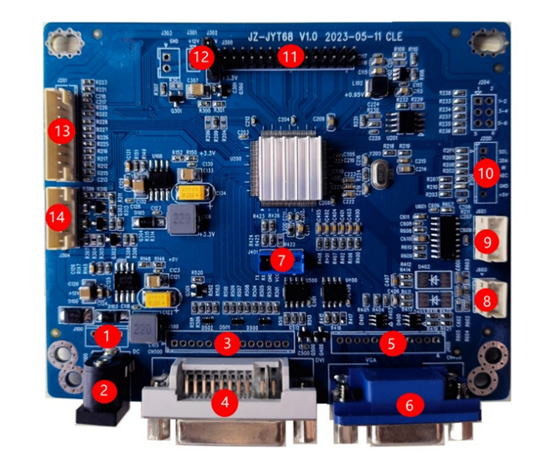

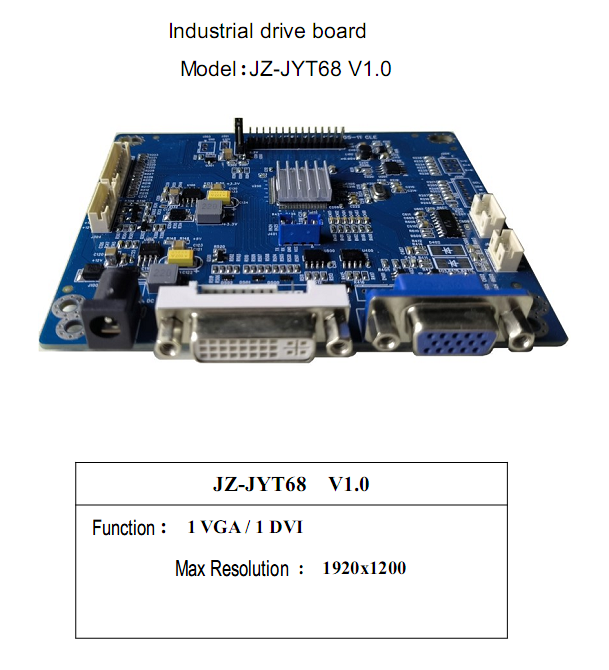

4、Product appearance

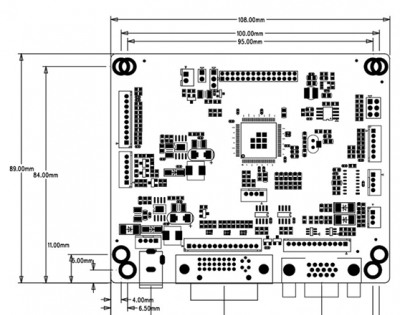

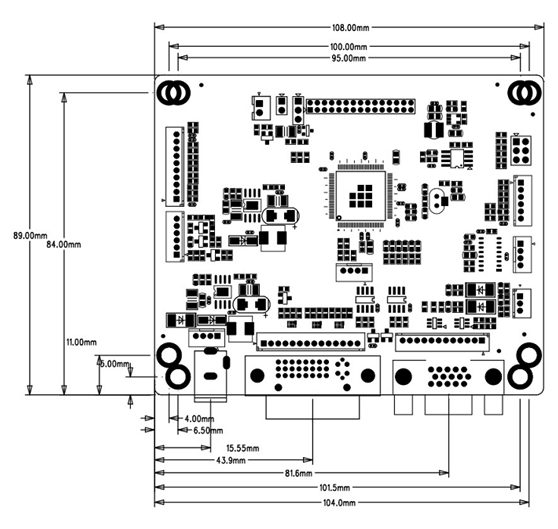

5、Product size
PCB board thickness: 1.60 mm
Total height: 15.00 mm
Size: 108.0*89.0 mm
