  • JZ-HP98 used to support VBY1/eDP interface TFT LCD screen
  • JZ-HP98 used to support VBY1/eDP interface TFT LCD screen
  • Model:JZ-HP98
  • Brand:Xuhong
  • Aximum:≤4096x2160
  • Size:≤ 82”
  • Maximum resolution supported:
  • Interface signal:VBY1/eDP
  • LCDinterface:
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1. INTRODUCTION

    This driver board is mainly used to support VBY1/eDP interface TFT LCD screen, driver board with 2 channel HDMI and 2 channel DP, support VBY1, eDP output interface. MTK signal processing chip is adopted in the motherboard, which has powerful processing functions and can support various standard and non-standard signals. The use of high - specification devices, with good performance.


    Key features:

    Built-in VBY1 interface, supports LCD Panel with the highest resolution of 4096x2160@60hz.

    Support 4K eDP signal output, support HBR and HBR2 format eDP LCD screen.

    It integrates 4 composite digital interfaces to support HDMI/ DP interfaces.

     Support USB upgrade.


    2Product feature description

    Output signal

    Maximum resolution:

    4096x2160

    Output

    VBY1/eDP

    Support Input

    DP

    Up To 4096x2160@60Hz

    DP 1.4

    HDMI

    Up   To 4096x2160@60Hz

    HDMI   2.0

    Horizontal   Freq

    30-75KHz

    Vertical   Freq

    50—75Hz

    Voice Output

    Max   Power

    2   X 10W @ 8Ω

    POWER

    Working   Voltage

    12V

    Drive-screen   Voltage

    3V/5V/10V/12V/VCC

    Stand-by

    0.252W(just   for motherboard)

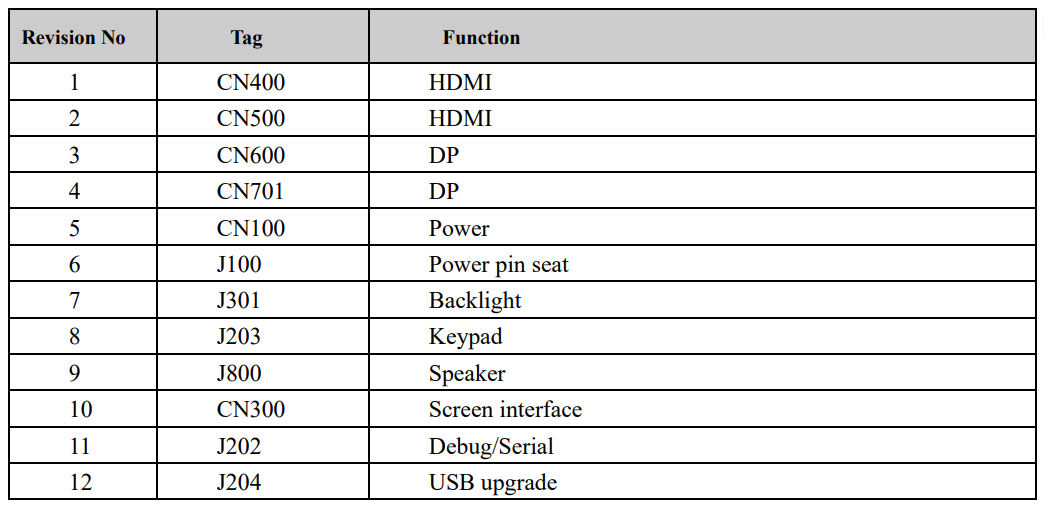

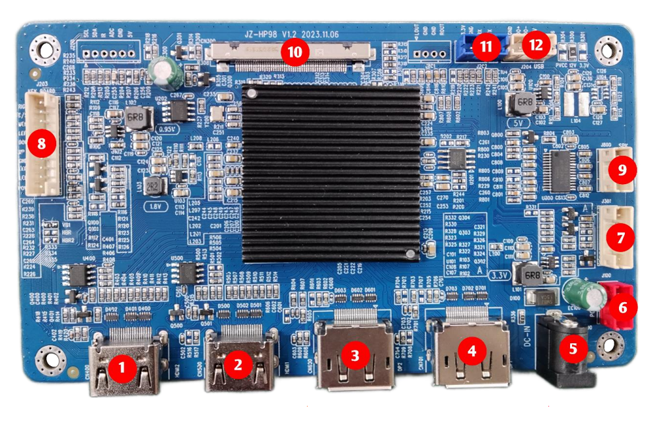

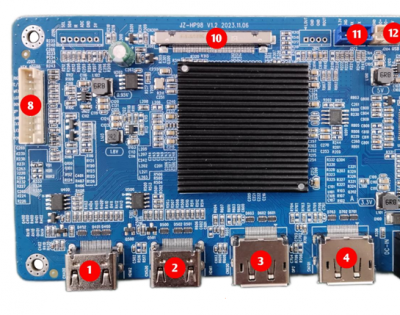

    4Product appearance




    5Product size

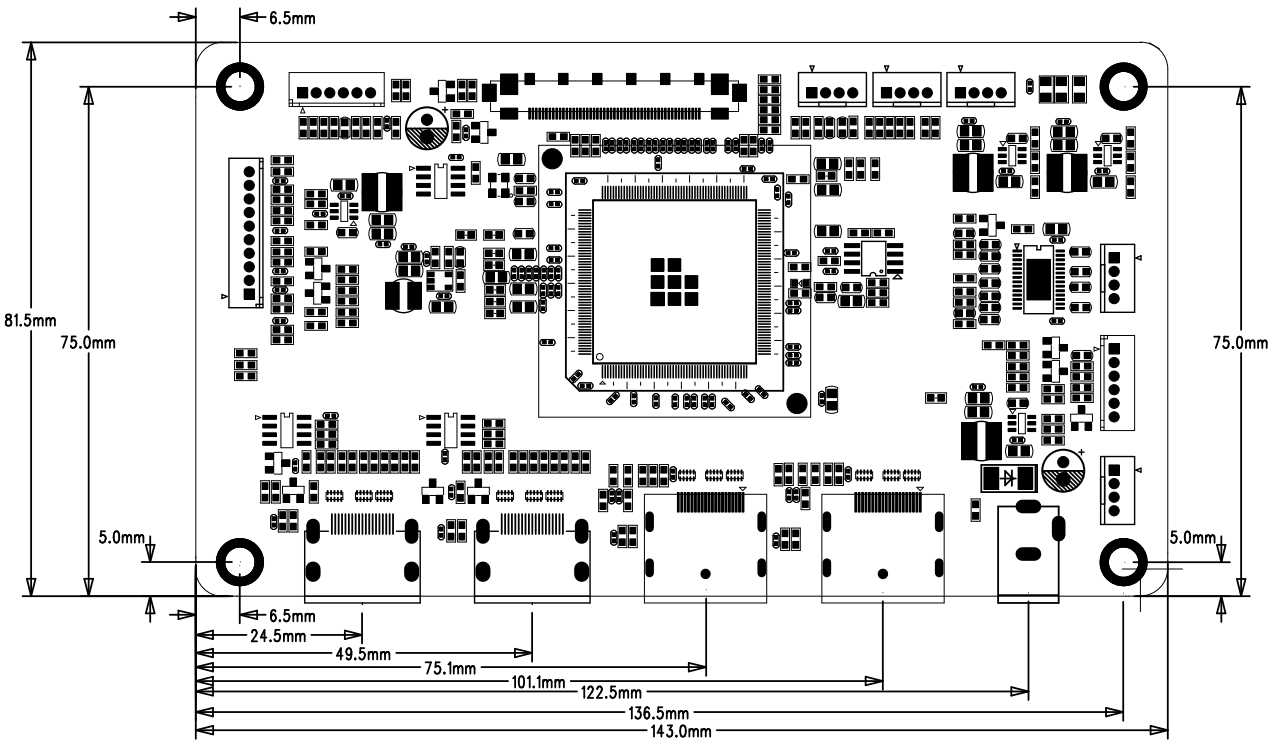

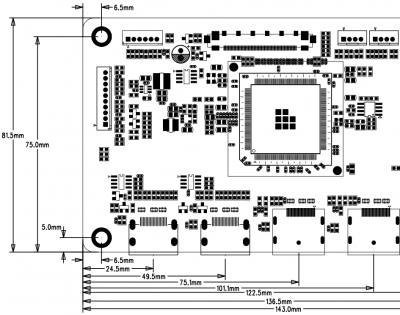

    JZ-HP98 CONTROLLER DIMENSIONS


    PCB board thickness: 1.60 mm

    Length and width 43.0 x 81.51mm

    Total height: 15.00 mm

    Bore Diameter:Φ3.5mm
