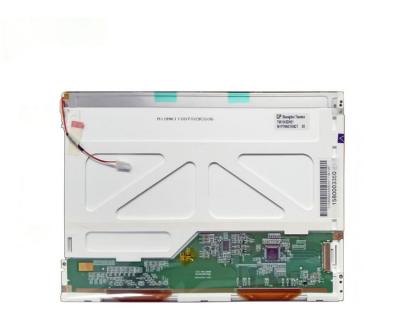

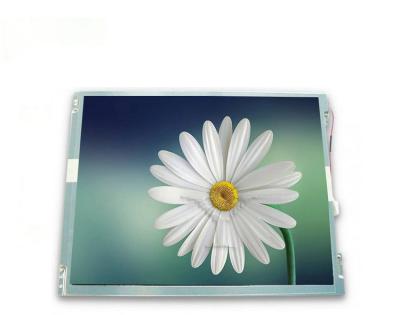

TIANMA TM104SDH01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM104SDH01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 10.4” | Designed For | Industrial，Medical Imaging |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | WLED Backlight，Matte |
TIANMA TM104SDH01 Optical Details
| Basic Information : | Luminance | 400 cd/m²(Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) ms |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.309; Wy:0.334 | Display Colors | 262K (6-bit) |
Color Temperature | 6655K | White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM104SDH01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*;600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.088*0.264 mm | Pixel Pitch (W×H) | 0.264*0.264 mm [96PPI] |
| Physical Size : | Active Viewing(mm) | 211.2(W)*158.4(H) mm | Bezel Area (mm) | 215.0(W)*162.0(H) mm |
| Outline Dim.(mm) | 236(W)*176.9(H) mm | Depth(mm) | 5.6±0.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel |
| Other Spec : | Weight | 288g (Typ.) | Surface | Antiglare, Hard coating (3H) |
TIANMA TM104SDH01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
TIANMA TM104SDH01 Interface Details
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 380mA (Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | DF19K-20P-1H | 1.0mm | 20pins | 1 pcs | LVDS-20P1C6B-070A |
TIANMA TM104SDH01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S6P | Position | Edge light type (Top side) |
| Exchange | - | Lamp Shape | Array | Lamp Life | 30K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 18/19.2/21.6V (Min./Typ./Max.) | Input Current | 120/180mA (Typ./Max.) |
| Frequency | 2.30/3.89W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Backlight Driver : | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL |
TIANMA TM104SDH01 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 25pcs / box | 10.3 Kgs±10% | 530*350*250 mm (L*W*H) |
