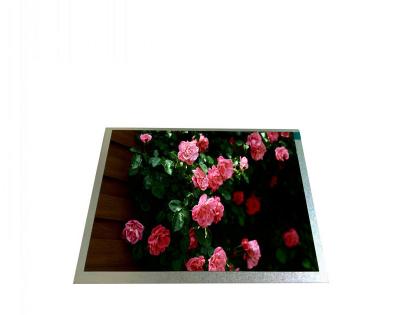

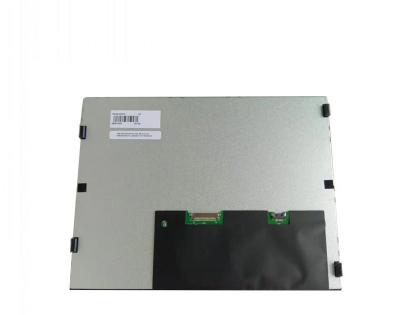

  • TIANMA 10.4 inch screen TM104TDGP10 1024*768 lcd display module
  • TIANMA 10.4 inch screen TM104TDGP10 1024*768 lcd display module
  • Model:TM104TDGP10
  • Brand:TIANMA
  • Size:10.4inch
  • Resolution:1024×768
  • Brightness:400 cd/m²
  • Perspective:80/80/80/80
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters

TIANMA 10.4 inch screen TM104TDGP10 1024*768 lcd display module

  • TIANMA TM104TDGP10 Application Details

    Basic Detail :Panel BrandTIANMAModel NameTM104TDGP10
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size10.4”Designed ForIndustrial
    Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
    RoHSRoHSVibration Level
    Features :WLED Backlight,With LED Driver, 180°C;Reverse,6/8bit,Matte


    TIANMA TM104TDGP10 Optical Details

    Basic Information :Luminance450 cd/m²(Typ.)Contrast Ratio1200:1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed35 (Typ.)(Tr+Td) ms
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeSFT, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.308; Wy:0.332Display Colors262K/16.7M (6-bit / 8-bit)
    Color Temperature6727KWhite Variation1.18/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio56%sRGB78% coverage
    Adobe RGB59% coverageDCI-P358% coverage
    Rec.202042% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    TIANMA TM104TDGP10 Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
    Dot Pitch (W*H)0.0685*0.2055 mmPixel Pitch (W×H)0.2055*0.2055 mm (H*V)  [123PPI]
    Physical Size :Active Viewing(mm)210.432*157.824 mm (H*V)Bezel Area (mm)213.43*160.82 mm (H*V)
    Outline Dim.(mm)230*175.8 mm (H*V)Depth(mm)5.7/9.06 mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Other Spec :Weight430g (Typ.)SurfaceAntiglare


    TIANMA TM104TDGP10 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (180°)
    D-IC Detail :COG Built-in RM51150 + RM76870*2


    TIANMA TM104TDGP10  Interface Details

    Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input430mA (Typ.)
    Consumption

    1.42W (Typ.)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    STARCONN107A20-0021RA-G3-R1.0mm20pins1 pcsLVDS-20P1C8B-080C


    TIANMA TM104TDGP10  Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity8S4PPositionEdge light type
    Exchange
    -
    Lamp ShapeArrayLamp Life-
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    E&T3808K-F05N-03R1.25mm5pins1 pcs
    Backlight Driver :With LED Driver
    Driver Electrical :Voltage Input12±1.0VCurrent Input0.33A (Typ.)
    Consumption3.96W (Typ.)


    TIANMA TM104TDGP10  Packing Details

    Package Box :
    Quantity
    WeightBox Size
    18pcs / box12.75±0.64 Kgs544*365*250 mm   (L*W*H)
