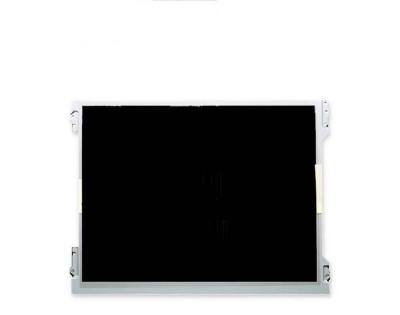

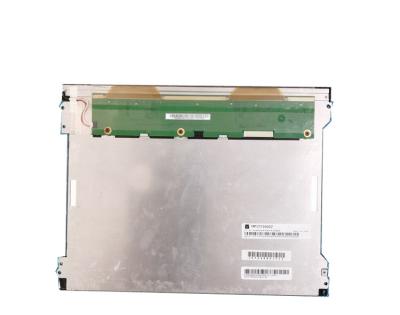

  • TM121TDSG02 12.1 inch 1024*768 tft screen lcd display tft lcd panel
  • TM121TDSG02 12.1 inch 1024*768 tft screen lcd display tft lcd panel
  • Model:TM121TDSG02
  • Brand:TIANMA
  • Size:12.1inch
  • Resolution:1024×768
  • Brightness:450 cd/m²
  • Perspective:80/80/80/80
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters

TM121TDSG02 12.1 inch 1024*768 tft screen lcd display tft lcd panel

  • TIANMA TM121TDSG02 Application Details

    Basic Detail :Panel BrandTIANMAModel NameTM121TDSG02
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size12.1”Designed ForIndustrial
    Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
    RoHSRoHSVibration Level1.2G (11.76 m/s² )
    Features :WLED Backlight,Life>=50K hours, With LED Driver,180°C;Reverse, 6/8bit,Matte


    TIANMA TM121TDSG02 Optical Details

    Basic Information :Luminance450 cd/m² (Typ.)Contrast Ratio700:1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed3/5 (Typ.)(Tr+Td) ms
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)

    Color Temperature
    6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio55%sRGB77% coverage
    Adobe RGB58% coverageDCI-P358% coverage
    Rec.202041% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    TIANMA TM121TDSG02 Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
    Dot Pitch (W*H)0.080*0.240 mm Pixel Pitch (W*H)0.240*0.240 mm (H*V)  [105PPI]
    Physical Size :Active Viewing(mm)245.76*184.32 mm (H*V)Bezel Area (mm)250.8*189.4 mm (H*V)
    Outline Dim.279*209 mm (H*V)Outline Depth6.0/9.1 (Typ./Max.) mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Holes & Brackets :Face mounting holes (3-Φ3.4, 3-R1.7) on left, right bezel
    Other Features :Weight483g (Typ.)Surface

    Antiglare, Hard coating (3H)



    TIANMA TM121TDSG02 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (180°)
    Power Consumption :6.4W (Typ.)


    TIANMA TM121TDSG02  Interface Details

    Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input340/740mA (Typ./Max.)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    STMMSB240420HE1.25mm20pins1 pcsLVDS-20P1C8B-080G


    TIANMA TM121TDSG02 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
    Exchange
    -
    Lamp Shape-Lamp Life50K(Min.) (Hours)
    Interface Features :Position-Physical TypeConnector
    Interface Detail BrandModelPin PitchPinsAmountPin Assignment
    STMMSB24038P51.25 mm5 pins1 pcs
    Backlight Driver :

    Input Voltage12.0V (Typ.)Input Current410/480mA (Typ./Max.)
    Backlight Driver :With LED Driver


    TIANMA TM121TDSG02 Carton Details

    Package Carton :AmountNet WeightCarton Size (L*W*H)
    20 pcs / box14.35±0.72 Kgs577*421*326 mm
