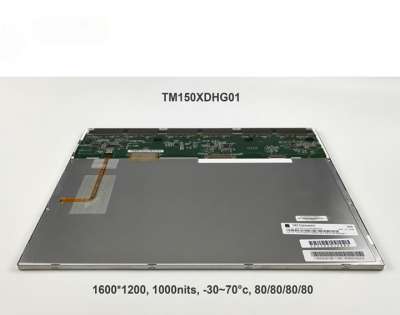

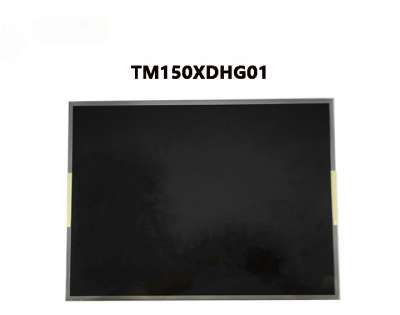

  • TM150XDHG01 15.0 Inch 1600(RGB)*1200 Resolution Free Angle with LVDS 30 Pins TFT
  • TM150XDHG01 15.0 Inch 1600(RGB)*1200 Resolution Free Angle with LVDS 30 Pins TFT
  • Model:TM150XDHG01
  • Brand:TIANMA
  • Size:15.0inch
  • Resolution:1600×1200
  • Brightness:1000 cd/m²
  • Perspective:80/80/80/80
  • Interface:LVDS
  • Operating Temp.:-30 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters

TM150XDHG01 15.0 Inch 1600(RGB)*1200 Resolution Free Angle with LVDS 30 Pins TFT

  • TIANMA TM150XDHG01 Application Details

    Basic Detail :Panel BrandTIANMAModel NameTM150XDHG01
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size15”Designed ForIndustrial,Outdoor High Brightness
    Maximum Ratings :OP Temperature-30 ~ 70 °CST Temperature-40 ~ 80 °C
    RoHSRoHSVibration Level
    Features :Wide Temperature,Ultra High Brightness,WLED Backlight,With LED Driver, 6/8bit,Matte


    TIANMA TM150XDHG01 Optical Details

    Basic Information :Luminance1000  cd/m²(Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Good View at12 o'clockResponse Speed20 (Typ.)(Tr+Td) ms
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K (6-bit)

    Color Temperature
    6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio54%sRGB75% coverage
    Adobe RGB56% coverageDCI-P356% coverage
    Rec.202040% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmittance-


    TIANMA TM150XDHG01 Mechanical Details

    Pixel Features :Number of Pixel1600(RGB)*1200, UXGAArrangementRGB Vertical Stripe
    Dot Pitch0.0635*0.1905 mm (H*V)Pixel Pitch0.1905*0.1905 mm (H*V)  [133PPI]
    Physical Size :Active Viewing(mm)304.8*228.6 mm (H*V)Bezel Area (mm)307.8*231.1 mm (H*V)
    Outline Dim. (mm)318.7*242.5 mm (H*V)Outline Depth6.0/6.5 (Typ./Max.) mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Holes & Brackets :Side mounting holes (4-M2.5) on left, right bezel
    Other Features :Weight620gSurfaceAntiglare


    TIANMA TM150XDHG01 Electronics Details

    Reverse Scan :No


    TIANMA TM150TDSG70 Interface Details

    Signal Systerm :LVDS (2 ch, 6-bit)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input990mA (Typ.)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    HRSMDF76-30P-1C1.0mm30pins1 pcs


    TIANMA TM150XDHG01 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
    Exchange
    -
    Lamp Shape-Lamp Life30K(Typ.) Hours
    Interface Features :Position-Physical TypeConnector
    Interface Detail BrandModelPin PitchPinsAmountPin Assignment
    HRSDF19L-14P-1H1.0 mm14pins1 pcs
    Driver Electrical :Voltage Input12.0±1.2VCurrent Input1.14/1.29A (Typ./Max.)


    TIANMA TM150XDHG01 Carton Details

    Package Carton :AmountNet WeightCarton Size (L*W*H)
    15 pcs / box12.75 Kgs520*435*330 mm
