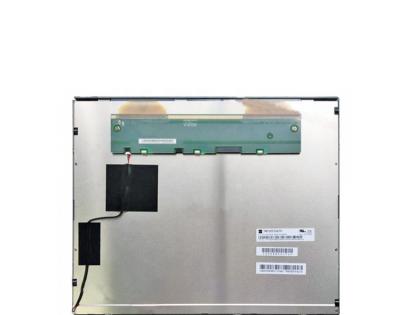

  • Original 15'' For TIANMA 1024*768 LCD Screen Display Module Panel  TM150TDSG71

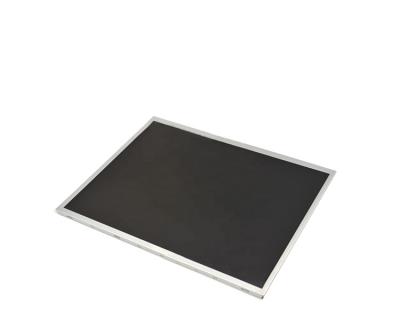

  • Original 15'' For TIANMA 1024*768 LCD Screen Display Module Panel  TM150TDSG71
  • Model:TM150TDSG71
  • Brand:TIANMA
  • Size:15.0inch
  • Resolution:1024×768
  • Brightness:450cd/m²
  • Perspective:80/80/80/80
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters

Original 15'' For TIANMA 1024*768 LCD Screen Display Module Panel TM150TDSG71

  • TIANMA TM150TDSG71 Application Details

    Basic Detail :Panel BrandTIANMAModel NameTM150TDSG71
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size15”Designed ForIndustrial
    Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
    RoHSRoHSVibration Level
    Features :Lamp Repaceable,WLED Backlight,Life>=50K hours,With LED Driver,180°Reverse, 6/8bit,Matte


    TIANMA TM150TDSG71 Optical Details

    Basic Information :Luminance450  cd/m² (Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
    Good View at12 o'clockResponse Speed8 (Typ.)(Tr+Td) ms
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)

    Color Temperature
    6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio62%sRGB80% coverage
    Adobe RGB62% coverageDCI-P364% coverage
    Rec.202047% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    TIANMA TM150TDSG71 Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)*768 [XGA]ArrangementRGB Vertical Stripe
    Dot Pitch0.099*0.297 mm (H*V)Pixel Pitch0.297*0.297 mm (H*V)  [85PPI]
    Physical Size :Active Viewing(mm)304.128*228.096 mm (H*V)Bezel Area (mm)307.4*231.3 mm (H*V)
    Outline Dim. (mm)326.5*253.5 mm (H*V)Outline Depth11.8±0.3 mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Other Features :Weight1.00Kgs (Typ.)SurfaceAntiglare


    TIANMA TM150TDSG71 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (180°)


    TIANMA TM150TDSG71 Interface Details

    Signal Systerm :LVDS (1 ch, 6/8-bit)

    Logic Voltage500mA (Typ.)

    Signal Electrical :Voltage Input3.3V (Typ.)Current Input-
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    P-TWO185083-201211.25mm20pins1 pcsLVDS-20P1C8B-080A


    TIANMA TM150TDSG71 Backlight Details

    Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
    Exchange
     Replaceable
    Lamp Shape-Lamp Life50K(Typ.) (Hours)
    Interface Features :Position-Physical TypeConnector
    BrandModelPitch

    Pins
    AmountPin Assignment
    STMMSB24038P51.25 mm5 pins1 pcs
    Lamp DriverWith LED Driver
    Driver Electrical :Voltage Input12.0V (Typ.)Current Input
     705mA (Typ.)


    TIANMA TM150TDSG71 Carton Details

    Package Carton :AmountNet WeightCarton Size (L*W*H)
    10 pcs / box12.1±0.61 Kgs438*402*464 mm
