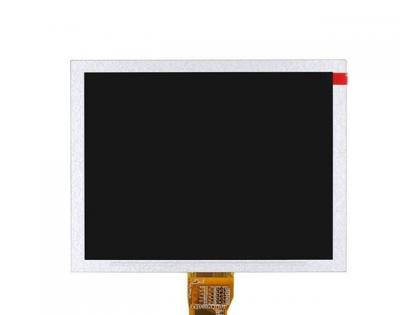

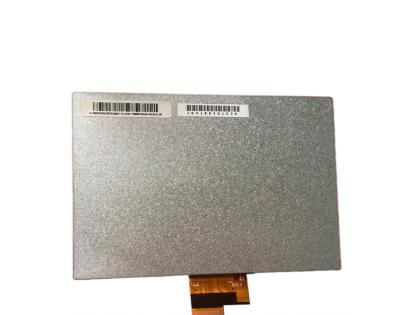

TIANMA TM080TDHG01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM080TDHG01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 8.0” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80°C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight， U/D,L/R Reverse，6/8bit | |||
TIANMA TM080TDHG01 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.325 | Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6799K | White Variation | 1.33/1.43 (Typ./Max.)(9 points | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | 76 | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM080TDHG01 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.05275×0.15825 mm (H×V) | Pixel Pitch (W×H) | 0.15825×0.15825 mm (H×V) [160PPI] | |
| Physical Size : | Active Viewing(mm) | 162.048×121.536 mm (H×V) | Bezel Area (mm) | 164.65×124.14 mm (H×V) |
| Outline Dim.(mm) | 183×141 mm (H×V) | Depth(mm) | 3.4±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Without | |||
| Other Spec : | Weight | 189g | Surface | Clear |
TIANMA TM080TDHG01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| D-IC Detail : | COG Built-in OTA7159A + OTD9160A |
TIANMA TM080TDHG01 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | 753mW (Typ.) | ||||||||
| Signal Electrical : | Voltage Input | 3.3/11.5/20.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Input | 42.2/52.3/0.80/0.83mA (Typ.)(IVCC/IAVDD/IGH/IGL) | |||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.5mm | 40pins | 1 pcs | |||||||||
TIANMA TM080TDHG01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S9P | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 30K(Typ.) (Hours) | |||||
| Lamp Electrical : | Input Current | 180/225mA (Typ./Max.) | Input Voltage | 9.3±0.9V | ||||||
| Consumption | 1.782W (Typ.) | |||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||||||
| Backlight Driver : | No | |||||||||
TIANMA TM080TDHG01 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
| 48 pcs / box | 11.035 Kgs | 544×365×250 mm |
