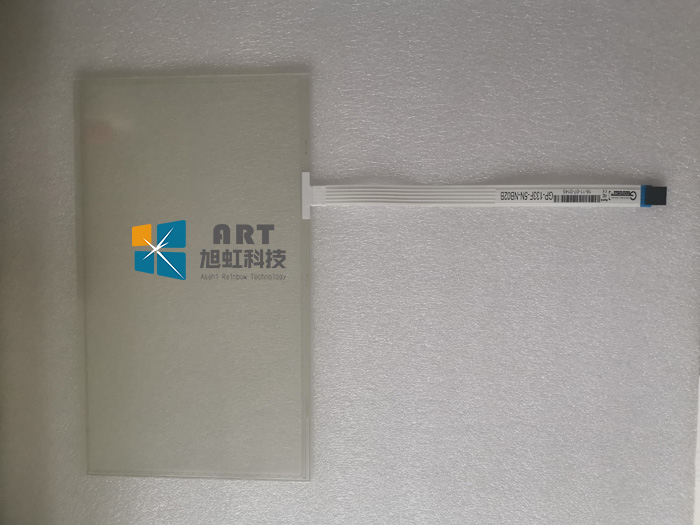

GP-133F-5N-NB02B 13.3-Inch 5-Wire Resistive Touch Panel

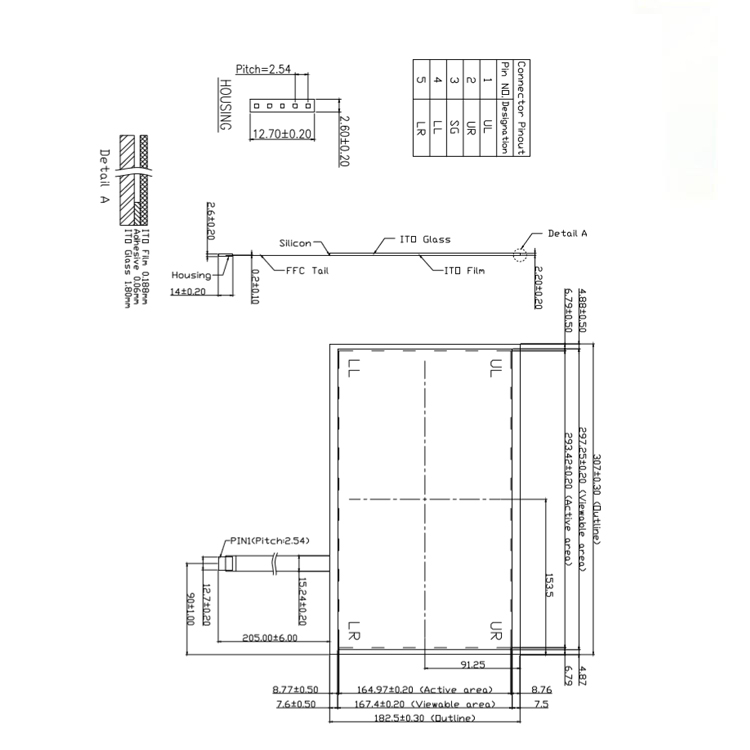

The GTOUCH GP-133F-5N-NB02B is a five-wire analog resistive touch panel for finger or stylus input, with an FFC connection. The specifications below follow the supplied specification, version 6.01.01, and mechanical drawing dated November 23, 2015. Confirm the current production revision and availability before ordering.
Mechanical Specifications
| Model | GP-133F-5N-NB02B |
|---|
| Brand | GTOUCH |
|---|
| Nominal Size | 13.3 inches |
|---|
| Touch Technology | Five-wire analog resistive |
|---|
| Input Method | Finger or stylus |
|---|
| Outline Dimensions (W × H) | 307.00 × 182.50 mm; tolerance ±0.30 mm for each dimension |
|---|
| Viewable Area (W × H) | 297.25 × 167.40 mm; tolerance ±0.20 mm for each dimension |
|---|
| Active Area (W × H) | 293.42 × 164.97 mm; tolerance ±0.20 mm for each dimension |
|---|
| Panel Thickness | 2.20 ±0.20 mm; check connector housing clearance separately |
|---|
| Tail Length | 205.00 ±6.00 mm |
|---|
| Panel Connection | Five-wire / FFC |
|---|
Environmental Specifications
| Operating Temperature | -10 to +70 °C |
|---|
| Operating Humidity | 20% to 80% RH, non-condensing |
|---|
| Storage Temperature | -40 to +80 °C |
|---|
| Storage Humidity | 20% to 90% RH, non-condensing |
|---|
These environmental conditions apply at normal atmospheric pressure, as specified in the document.
Optical, Electrical and Surface Specifications
| Transparency | 79% ±3%; BYK-Gardner measurement at 550 nm, ASTM D1003, as specified |
|---|
| Haze | 8% ±3%; BYK-Gardner measurement, ASTM D1003, as specified |
|---|
| Loop Resistance | X: 20 to 500 Ω; Y: 20 to 500 Ω, under the specified test connections |
|---|
| Linearity | X ≤1.5%; Y ≤1.5%, under the specified inspection conditions |
|---|
| Contact Chattering | ≤15 ms |
|---|
| Insulation Resistance | ≥20 MΩ at 25 V DC |
|---|
| Surface Hardness | ≥3H; pencil test with a 750 g load at 45°, as specified |
|---|
Panel Connector Pin Assignment
| Pin | Designation |
|---|
| 1 | UL |
| 2 | UR |
| 3 | SG |
| 4 | LL |
| 5 | LR |
Pin designations follow this model's mechanical drawing. Verify connector orientation and numbering before connection. This is not a USB pin assignment; confirm a compatible controller and its host interface separately.
Integration and Selection
Check the outline, viewable area, active area and tail position against the approved production drawing. Avoid enclosure pressure on the touch surface and excessive strain on the tail. The specification calls for 4-point and 25-point calibration after installation; these are calibration procedures, not simultaneous touch-point counts.
Contact us for the current GP-133F-5N-NB02B drawing, controller options, availability and a quotation. Include your display model, host interface and required quantity. Confirm current commercial warranty terms separately.
