| Project | Describe |

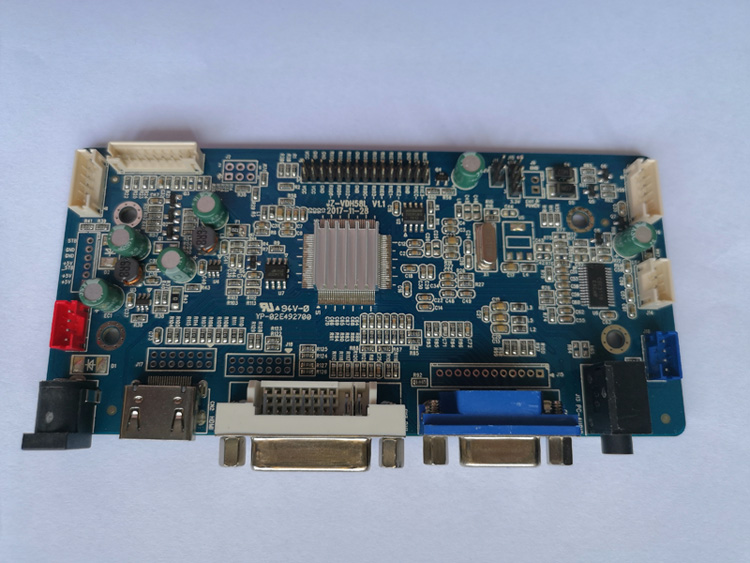

| Product name | XH-VDH58L |
| Chip solution | Mstar |
| Support maximum resolution | 1920*1200 |
| Support maximum size | 82inch |
| Interface signal | 1 VGA input, 1 DVI input, 1 HDMI input, 1 audio input, 2 * 8W power amplifier output |
| Input power | +12V single power supply, it is recommended to use 54W or above power adapter |
| Function | LCD driver board: it can support automatic sensitivity, knob dimming, multi language, gamma setting (preset 7 gamma curves), composite synchronization and SOG support. Stable performance, large shipment. |
| LCD interface | LVDS |
| Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 20 ℃ to 70 ℃; Relative humidity 20% to 80% |
| Size | 139*66*16mm |
| Applicable occasions | HDMI display, special occasions display and other LCD driver board, LCD control board |
