| Project | Describe |

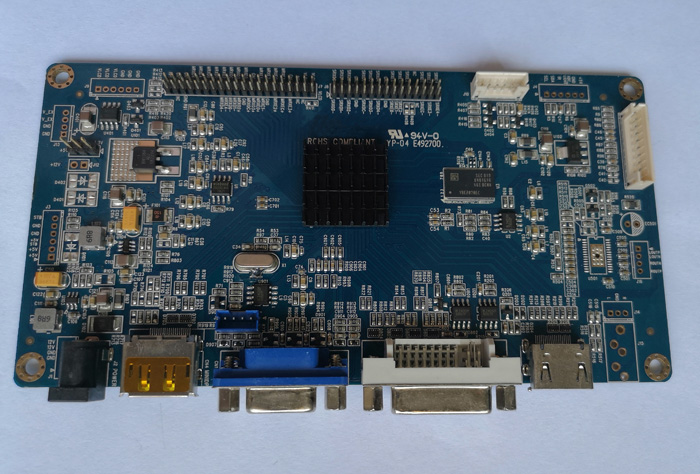

| Product name | FPD-QHD |
| Chip solution | Mstar |
| Support maximum resolution | 2560*2048 |
| Support size | ~82" |
| Interface signal | 1 VGA input, 1 HDMI input, 1 DVI input, 1 DP input, 2 * 28w stereo power amplifier |
| Input power | +12V single power supply. It is recommended to use a power adapter of 54W or above |
| Function | 3M LCD driver board: it can support black and white display, image up and down flip, very good gray scale, OSD display and control, multi language, DICOM brightness standard, 2560 * 10802560 * 14402560 * 16002048 * 1536 and other types of QHD LCD screen. |
| LCD interface | 4-channel 10bit LVDS |
| Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 20 ℃ to 70 ℃; Relative humidity 20% to 80% |
| Size | 140*120*20mm |
| Applicable occasions | Industrial control display, medical display, military display and other special occasions, LCD driver board, wide temperature LCD |
