| Project | Describe |

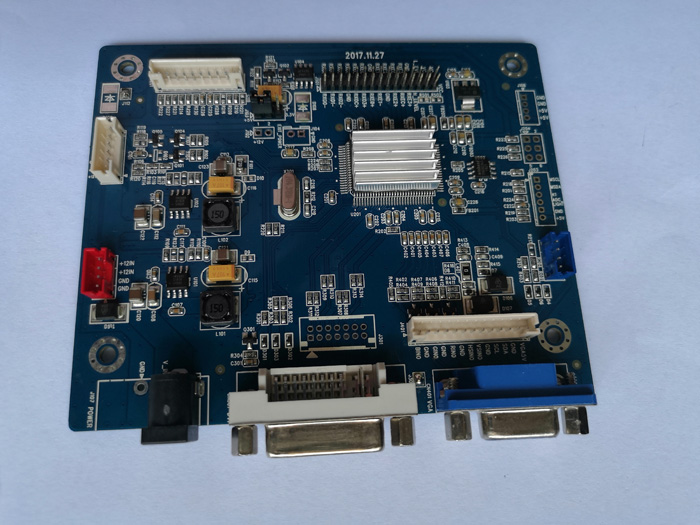

| Product name | VD58DG |
| Chip solution | Mstar series |
| Support maximum resolution | 1920*1200 |
| Applicable specifications | Industrial LCD driver board |
| Interface signal | One VGA input and one DVI input |
| Input power | +12V single power supply |
| function | Support automatic photosensitive control, knob dimming, multi language, DICOM brightness control, gamma setting (preset 7 gamma curves). Support stable work at minus 40 degrees. |
| LCD interface | 2 LVDS |
| Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 40 ℃ to 70 ℃; Relative humidity 20% to 80% |
| size | 115*95*12mm |
| Applicable occasions | VGA industrial display, LCD driver board, wide temperature LCD control board |
