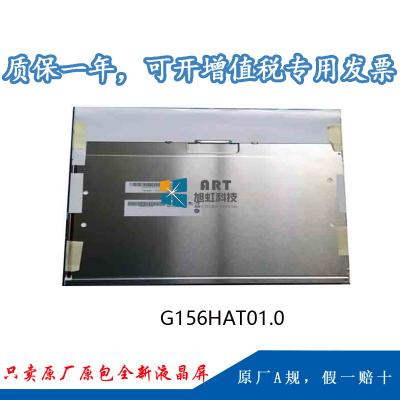

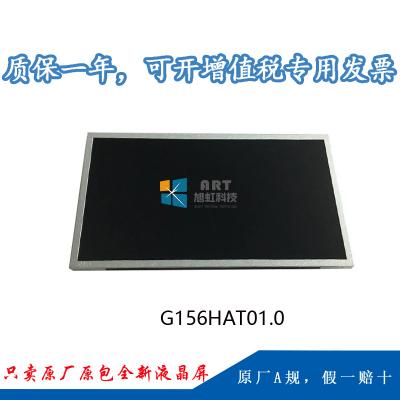

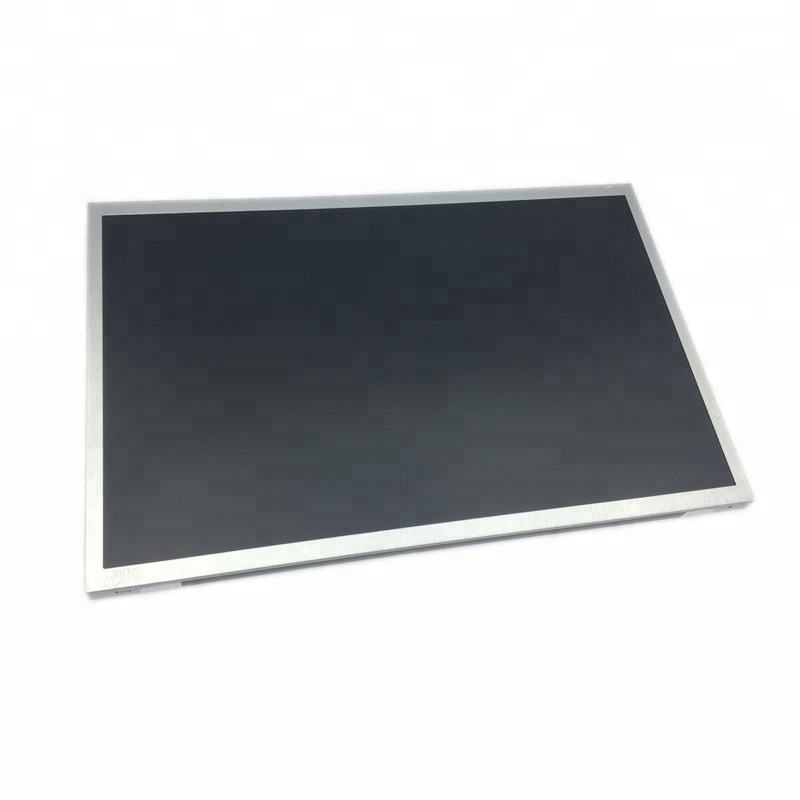

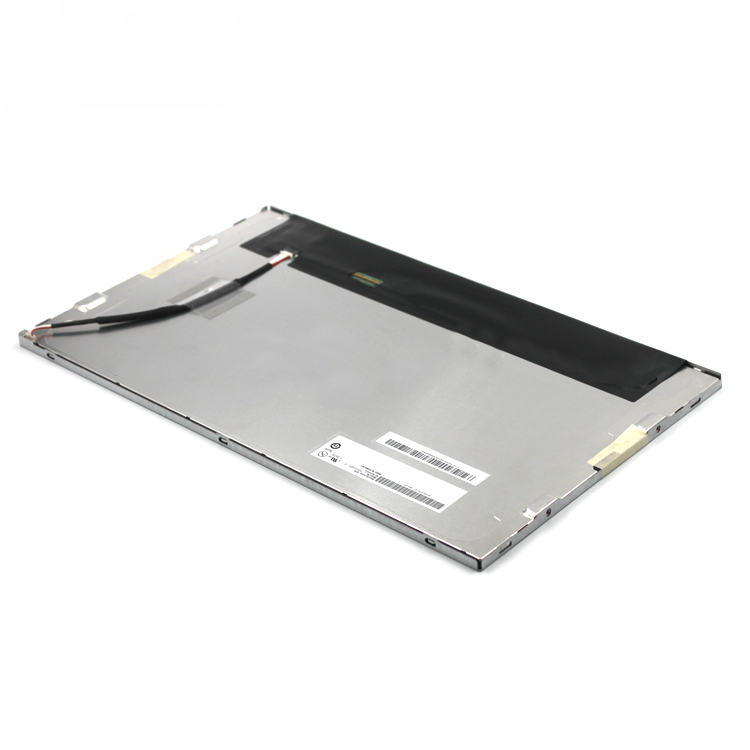

AUO G156HAT01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G156HAT01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 15.6inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -10 ~ 60 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | Srgb,With Touch，WLED Backlight，Life>=50K hours,With LED Driver |
AUO G156HAT01.0 Optical Details
| Basic Information : | Luminance | 425cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 77% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G156HAT01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.05975*0.17925 mm (H*V) | Pixel Pitch (W*H) | 0.17925*0.17925 mm (H*V) [141PPI] |
| Physical Size : | Active Viewing(mm) | 344.16*193.59 mm (H*V) | Outline Dim. | 370.4*227.89 mm (H*V) |
| Bezel Area(mm) | 345.56*194.99 mm (H*V) | Depth(mm) | 11.45 (Typ.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Touch Screen : | Touch Points | - | TP Signal | USB |
| TP Controller | With touch controller | Touchscreen | PCAP |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Weight | 1.14Kgs (Typ.) | Treatment | Hard coating (7H) |
AUO G156HAT01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G156HAT01.0 Interface Detail
| Signal Electrical : | Input Current | 240/290mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.79/0.98W (Typ./Max.) | Signal Interface | eDP (2 Lanes) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand
| Model | Pitch | Pins | Amount | Pin Assignment |
| I-PEX | 20455-030E-76B | 0.5mm | 30 pins | 1 pcs | |
AUO G156HAT01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface
|
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 10.8/12.0/21.0V (Min./Typ./Max.) | Current Supply | - |
| Consumption | 8.3/10.4W (Typ./Max.) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G156HAT01.0. Please include your application and required quantity so we can confirm the applicable revision.
