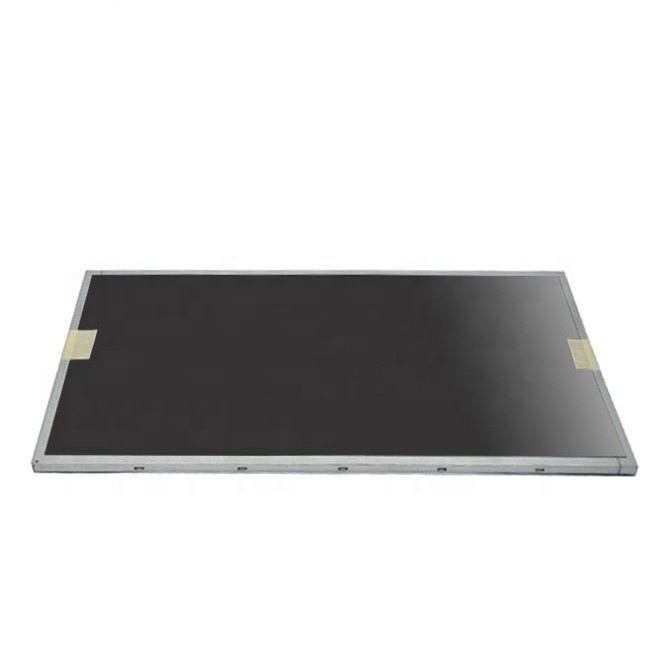

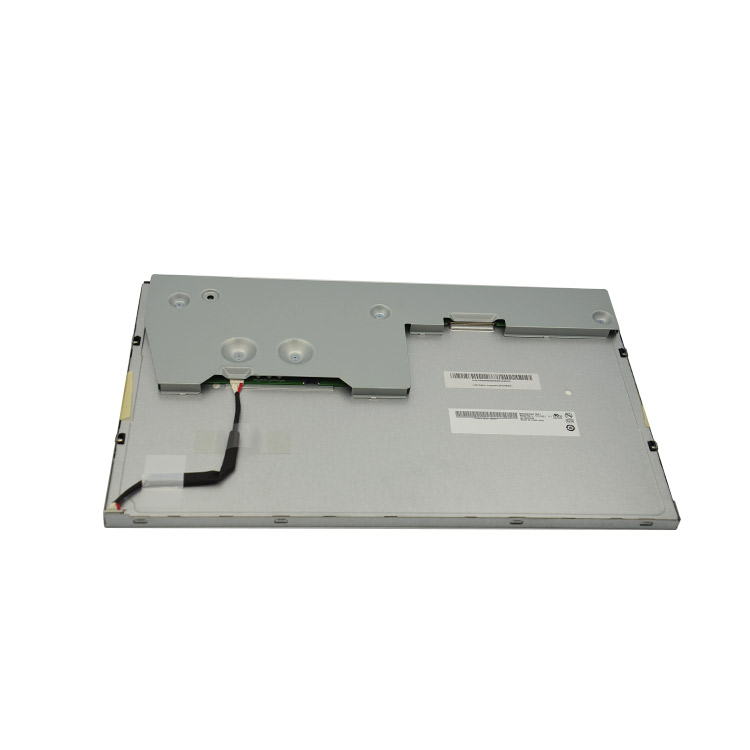

AUO G215HAN01.6 Application Details
| Basic Info : |
Panel Brand |
AUO |
Panel Model |
G215HAN01.6
|
| Diagonal Size |
21.5inch |
Application |
Industrial，Medical Imaging |
| Panel Type |
a-Si TFT-LCD , LCM |
|
|
| Reliability : |
Operating Temp. |
0 ~ 50 °C |
Storage Temp. |
-20 ~ 60 °C |
| RoHS State |
RoHS |
Vibration Rating |
1.5G (14.7 m/s²) |
| Specific Features : |
WLED Backlight，Life>=50K hours,Matte |
AUO G215HAN01.6 Mechanical Details
| Pixel Features : |
Pixel Format |
1920(RGB)×1080, FHD |
Dot Pitch (W×H) |
0.08265×0.24795 (H×V) |
| Configuration |
RGB Vertical Stripe |
Pixel Pitch |
0.24795×0.24795 (H×V) [102PPI] |
| Mechanical Size : |
Active Viewing(mm) |
476.064(H) × 267.786(V) |
Bezel Area(mm) |
479.8(H) × 271.3(V) |
| Outline Dim.(mm) |
497.6(H) × 292.2(V) |
Overall Depth |
|
| Outline Features : |
Form Factor |
Flat Rectangle |
Orientation |
Landscape type |
| Aspect Ratio |
16:9 (H:V) |
Shape Style |
|
| Holes & Brackets : |
Side mounting holes (4-M3) on left, right bezel |
| Other Features : |
Weight |
- |
Surface |
Antiglare, Hard coating (3H) |
AUO G215HAN01.6 Optical Details
| Brightness |
Brightness |
500 cd/m² (Typ.) |
Contrast Ratio |
1800:1 (Typ.) (Transmissive) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Optical Mode |
AHVA, Normally Black, Transmissive |
| Viewing Direction |
Symmetry |
Response Time |
12/10 (Typ.)(Tr/Td) |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Color Numbers |
16.7M (8-bit) |
| Color Temperature |
6485K |
Uniformity |
1.25/1.33 (Typ./Max.)(9 points) |
AUO G215HAN01.6 Electronics Details
| Frame Frequency : |
60Hz |
| Reverse Scan : |
No |
AUO G215HAN01.6 Backlight Details
| Back-light Features : |
Lamp Type |
WLED |
Amount |
- |
Life Time |
50K(Min.) (Hours) |
| Replacement |
- |
Lamp Shape |
- |
Position |
Edge light type (Top side) |
| Interface Features : |
Type |
Connector |
Position |
- |
| Lamp Driver |
No |
AUO G215HAN01.6 Interface Details
| Signal Systerm : |
LVDS (2 ch, 8-bit) |
Logic Voltage |
- |
|
| Signal Electrical : |
Input Current |
- |
Input Voltage |
5.0V (Typ.) |
| Consumption |
3/4W (Typ./Max.) |
| Interface Features : |
Type |
Connector |
Position |
- |
| Connector Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| STM |
MSBKT2407P30HB |
1.0mm |
30 pins |
1 pcs |
|
