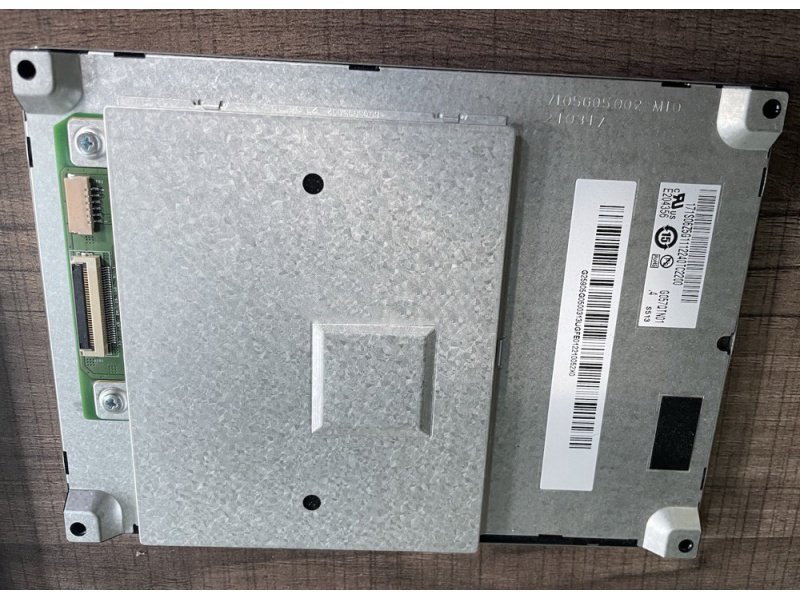

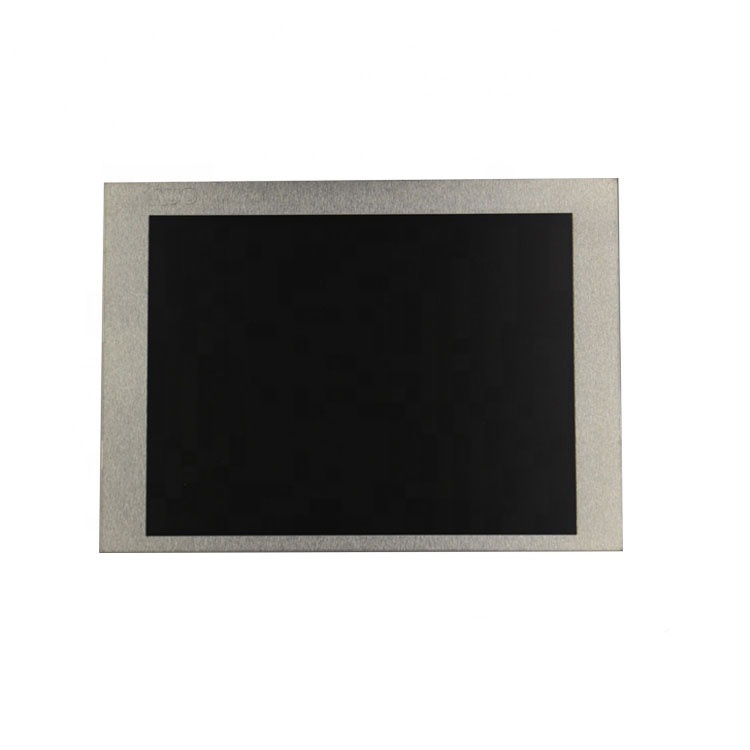

1.AUO 5.7inch G057QTN01.4 Application Details
| Basic Information : | Brand | AUO | Model | G057QTN01.4 |
| Type | a-Si TFT-LCD , LCM | Used For | Industrial |
| Screen Size |
5.7 inch | | |
| Environment : | Storage Temp. | -30 ~ 85 °C | Operating Temp. | -30 ~ 85 °C |
| RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) |
| Typical Features : | Wide Temperature，WLED Backlight，Life>=70K hours,U/D,L/R Reverse |
2.AUO 5.7inch G057QTN01.4 Mechanical Details
| Pixel Features : | Resolution | 320(RGB)*240, QVGA | Dot Pitch(mm) | 0.120*0.360 (H*V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360*0.360 (H*V) [70PPI] |
| Mechanical Size : | Active Area(mm) | 115.2(H) *86.4(V) | Bezel Area(mm) | 119.1×90.1 mm (H×V) |
| Outline Dim. | 144×104.6 mm (H×V) | Outline Depth | 8.8/9.8 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) |
| Other Features : | Weight | 150/165g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
3.AUO 5.7inch G057QTN01.4 Optical Details
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | - | Response(ms) | 15/10 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) |
| 1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO 5.7inch G057QTN01.4 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.816W (Typ.) |
5.AUO 5.7inch G057QTN01.4 Interface Detail
| Signal Type : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Signal Electrical : | Voltage Input | 3.3V (Typ.） | Current Input | 20/24mA (Typ./Max.) |
| Consumption | 66/88mW (Typ./Max.) |
| Interface Features : | Type | Connector | Position | - |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STARCONN | 089H33-000100-G2-R | 0.5mm | 33pins | 1pcs | DRGB-33P1C6B-010A |
6.AUO 5.7inch G057QTN01.4 Backlight Details
| Backlight Features : | Type | WLED | Quantity | - | Position | Edge light type |
| Replacement | No | Shape | - | Life Time | 75K(Typ.) (Hours) |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch
| Pins | Amount | Configuration |
| JAE | FI-S6P-HFE
| 1.25 mm | 6pins | 1pcs |
|
| Driver Electrical : | Voltage Input |
5.0±0.5V |
| Current Input | 0.35/0.40A (Typ./Max.) |
| Consumption | 1.5/2.2W (Typ./Max.) |
7.AUO 5.7inch G057QTN01.4 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
| 48 pcs / box | - | 528×348×265 mm
|
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G057QTN01.4. Please include your application and required quantity so we can confirm the applicable revision.
