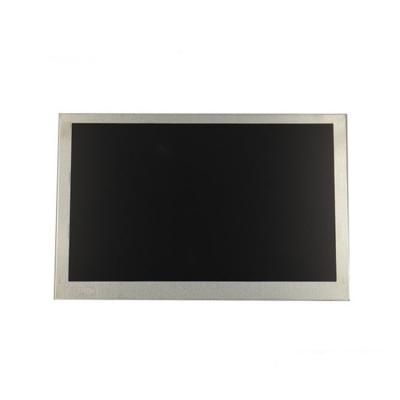

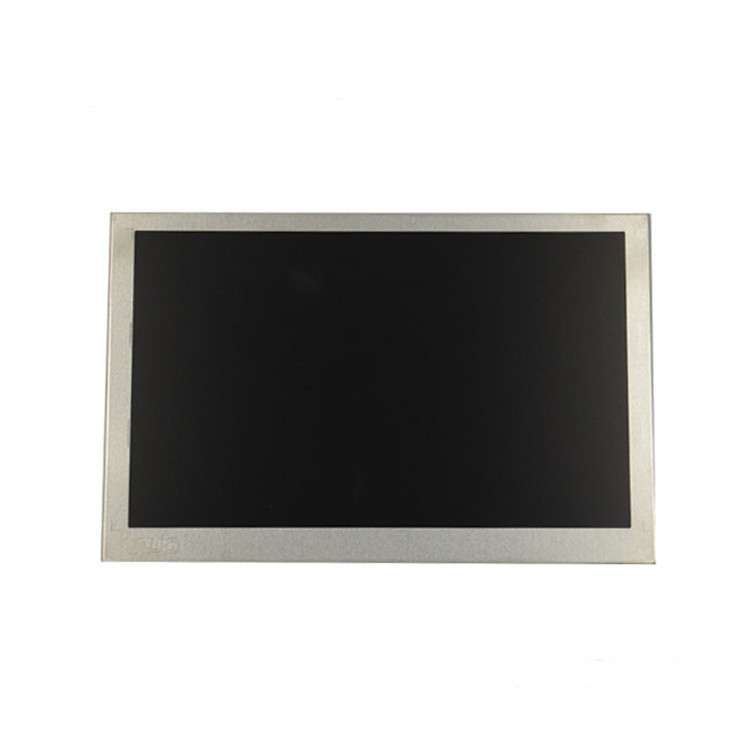

AUO A080STN01.0 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | A080STN01.0 |
| Diagonal Size | 8.0inch | Application | Industrial |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -30 ~70 °C |
| RoHS State | RoHS | Vibration Rating | - |
| Specific Features : | WLED Backlight，U/D,L/R Reverse，Matte |
AUO A080STN01.0 Mechanical Details
| Pixel Features : | Pixel Format | 800*600(RGB) [SVGA] | Dot Pitch | 0.2025*0.0675 mm (H*V) |
| Configuration | RGB Horizontal Stripe | Pixel Pitch | 0.2025*0.2025 mm (H*V) [125PPI] |
| Mechanical Size : | Display Area | 162*121.5 mm (H*V) | Outline Dim. | 163.8*123.3 mm (H*V) |
| Outline Dim. | 183*141 mm (H*V) | Overall Depth | 4.9±0.3 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | |
| Holes & Brackets : | Without |
| Other Detail : | Mass | 225±10g | Surface | Antiglare, Hard coating (3H) |
AUO A080STN01.0 Optical Details
| Brightness | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | - | Response Time | 12/18 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6638K | Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO A080STN01.0 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.769W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
AUO A080STN01.0 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | 3S6P | Life Time |
10K(Min.) (Hours) |
| Replacement | - | Lamp Shape | Arrays | Position | Edge light type |
| Lamp Electrical : | Input Current | 150mA (Typ.) | Input Voltage | 10.5V (Typ.) |
| Consumption | 1.58/1.68W (Typ./Max. |
| Interface Features : | Type | Connector | Position | - |
| Backlight Driver : | No |
Interface Detail :
| Brand | Model |
Pin Pitch
| Pins | Amount | Configuration |
| E&T | H201K-P02N-02B | 1.25 mm | 2 pins | 1 pcs | BLE-2PINS-AC |
AUO A080STN01.0 Interface Details
| Signal Systerm : | TTL (1 ch, 8-bit) + SPI | Logic Voltage | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO |
| Signal Electrical : | Input Current | 6.45/5.58/-5.68/3.96/-4.04mA (Typ.)(IDDIO/IDPA/IDNA/IGH/IGL) | Input Voltage | 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) |
| Consumption | 189mW (Typ.) |
| Interface Features : | Type |
FPC
| Position | - |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| |
| 0.5mm | 60pins | 1 pcs | |
AUO A080STN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 30pcs / box | 7 Kgs | 520*340*250 mm (L*W*H) |
-
