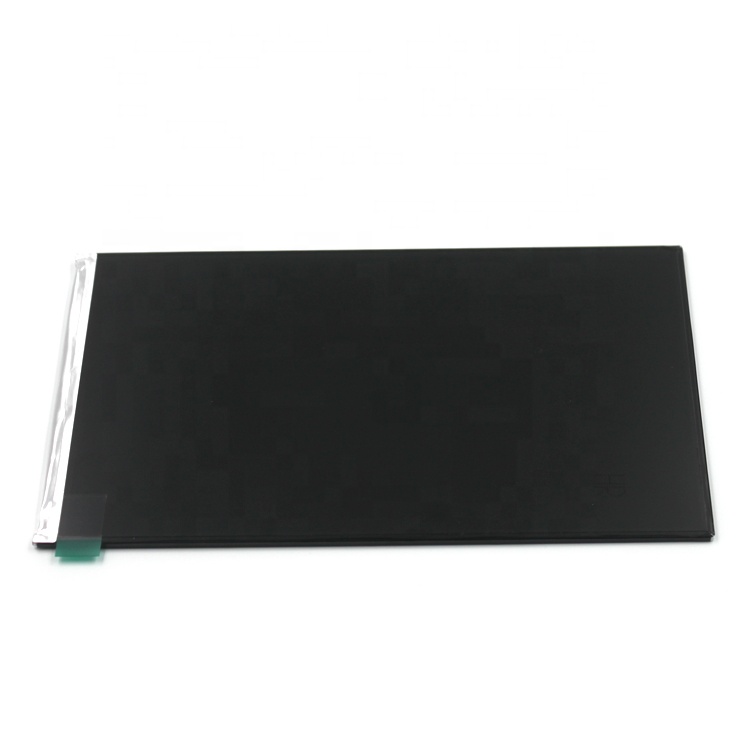

AUO G080UAN02.2 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G080UAN02.2 |
| Diagonal Size | 8.0inch | Application | Industrial |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~70 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
| Specific Features : | Portrait type，WLED Backlight，Glossy |
AUO G080UAN02.2 Mechanical Details
| Pixel Features : | Pixel Format | 1200(RGB)*1920, WUXGA | Dot Pitch (mm) | 0.0299*0.0897 mm |
| Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.0897*0.0897 mm [283PPI] |
| Mechanical Size : | Display Area(mm) | 107.64(W)*172.224(H) | Overall Dim. | 114.6(W)*184.125(H) mm |
| Bezel Opening | - | Overall Depth | 2.3/3.95 (Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 10:16 (H:V) | Shape Style | |
| Holes & Brackets : | Without |
| Other Detail : | Mass | 70.4±7g | Surface | Glare (Haze 0%) |
AUO G080UAN02.2 Optical Details
| Brightness | Brightness | 460 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissivee |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Tf) ms |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.330 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7203K | Uniformity | 1.18/1.25 (Typ./Max.)(5points) |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 88% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 78% coverage |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G080UAN02.2 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 1.9W (Max.) |
| Driver IC : | HX8279 |
AUO G080UAN02.2 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | 7S3P | Life Time | 15K(Min.) (Hours) |
| Replacement | - | Lamp Shape | 3 strings | Position | Edge light type |
| Lamp Electrical : | Input Voltage | 20.16/20.30V (Typ./Max.) | Input Current | 23mA (Typ.) |
| Consumption | 1.39/1.40W (Typ./Max.) |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
AUO G080UAN02.2 Interface Details
| Signal Interface | LVDS (2 ch, 8-bit)
- |
| Signal Electrical : | Input Current | 150mA (Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.5W (Max.) | | |
| Interface Features : | Type | Connector | Position | - |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | FH34SRJ-40S-0.5SH(50) | 0.5mm | 40pins | 1 pcs | |
AUO G080UAN02.2 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 66 pcs / box | 520*340*250 mm | 10.2 Kgs |
-
